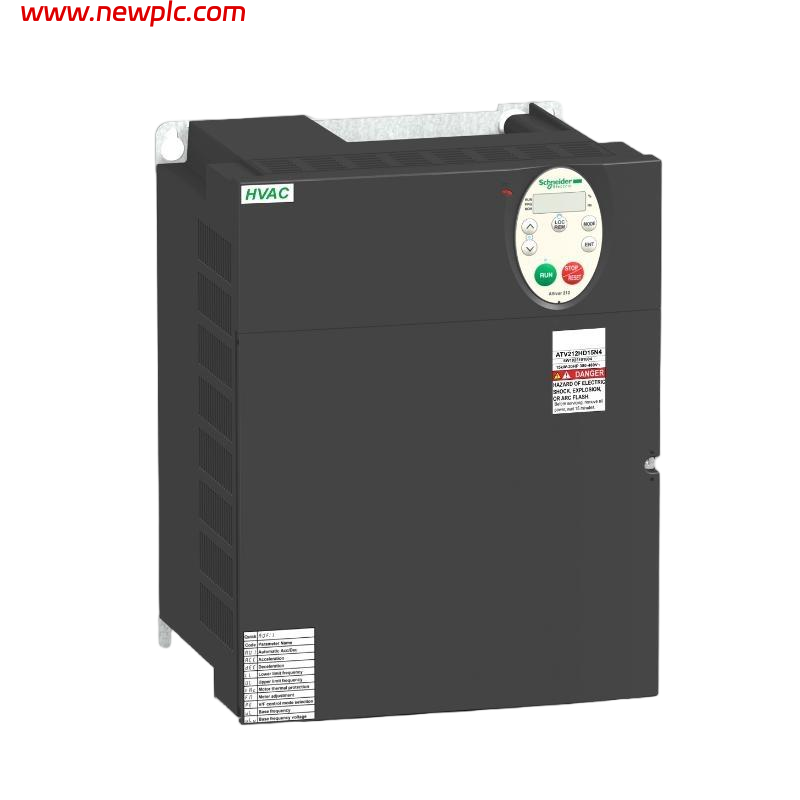

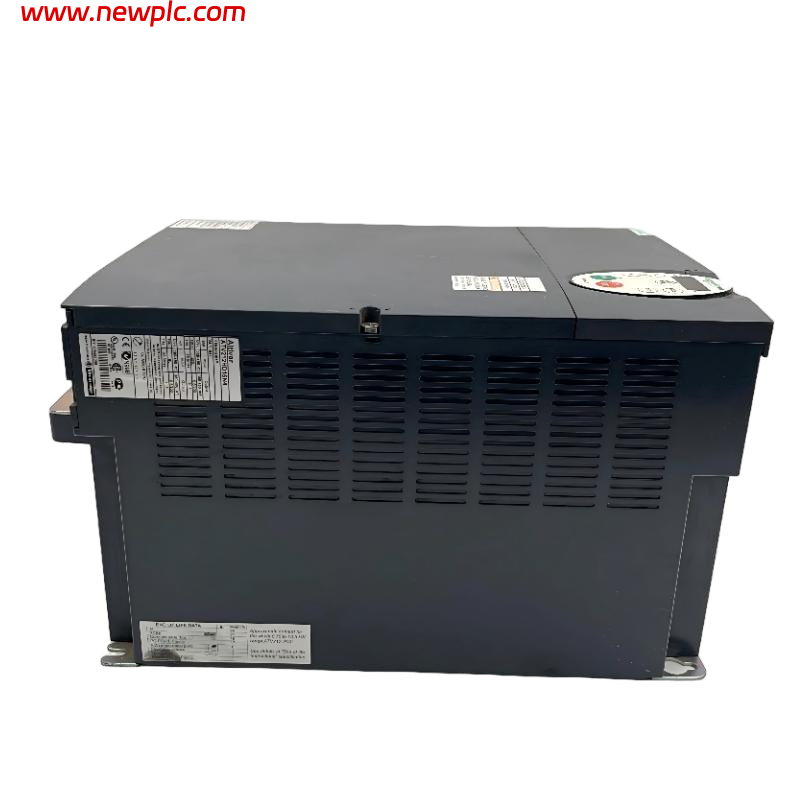

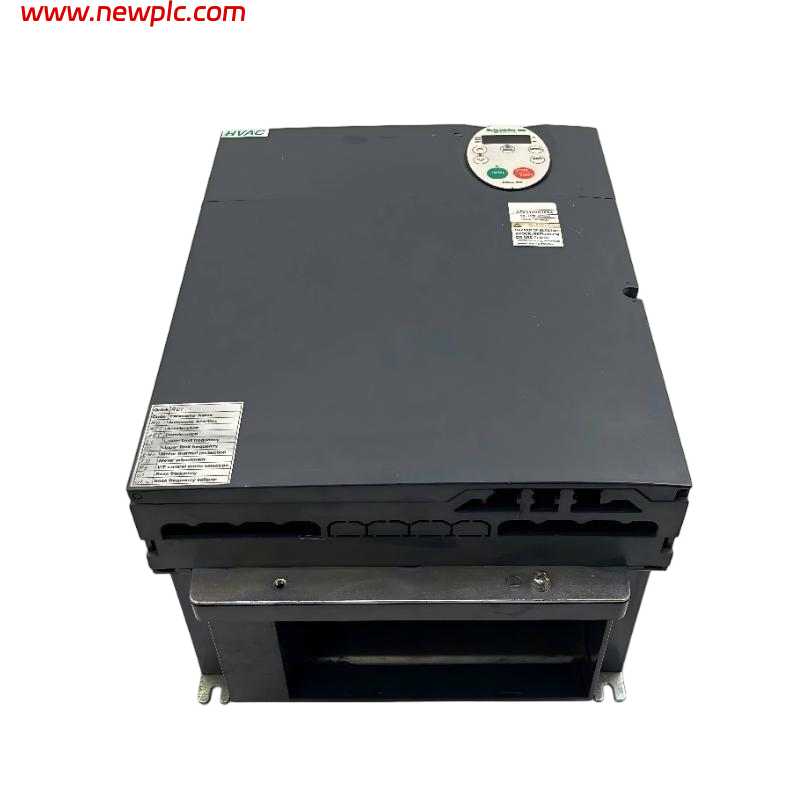

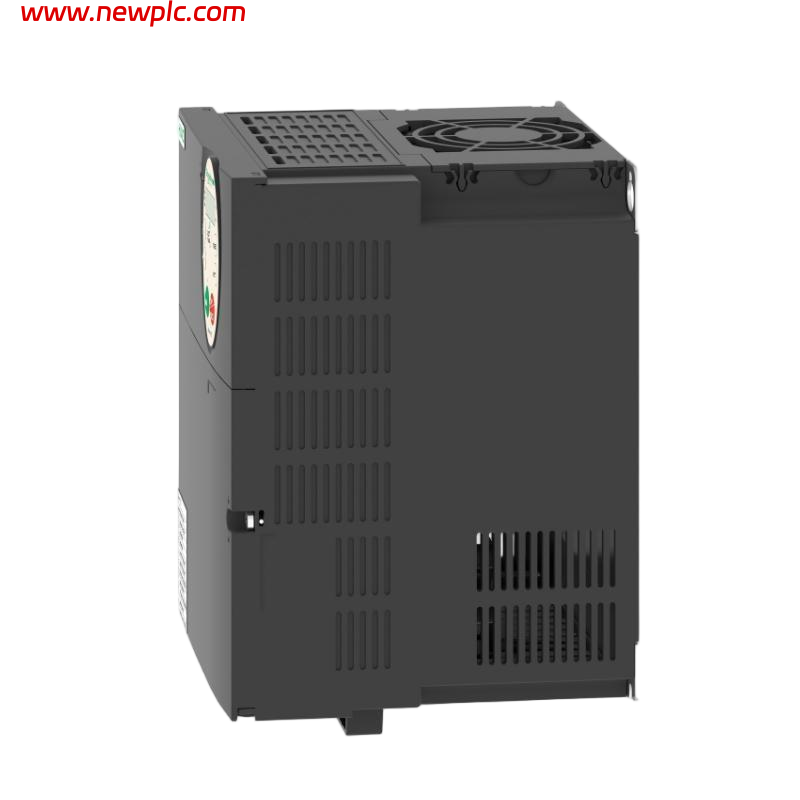

Schneider ATV212HD22N4 Altivar 212 Variable Frequency Drive (VFD)

FAQ

Q1: What is this VFD used for?
It controls the speed and torque of three‑phase AC motors by varying output frequency and voltage, commonly for HVAC, pump and fan applications.

Q2: What motor power rating does the ATV212HD22N4 support?
It supports motors up to 22 kW (30 hp).

Q3: What supply voltage range does this drive accept?
The drive operates with a three‑phase supply between approximately 323 VAC and 528 VAC, typically 380–480 VAC.

Q4: What is the continuous output current capacity?
The VFD can deliver about 43.5 A output current continuously.

Q5: What are the physical dimensions of the drive?
Its external dimensions are approximately 240 mm wide × 420 mm high × 214 mm deep.

Q6: How much does the drive weigh?
The net weight is about 26.4 kg.

Q7: What protection rating does this model have?
It features an IP21 protection rating suitable for indoor industrial environments.

Q8: What communication options are available?
It supports protocols like Modbus, BACnet, METASYS N2, APOGEE FLN and LonWorks for automation network integration.
