Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric ATV212HD55N4 |

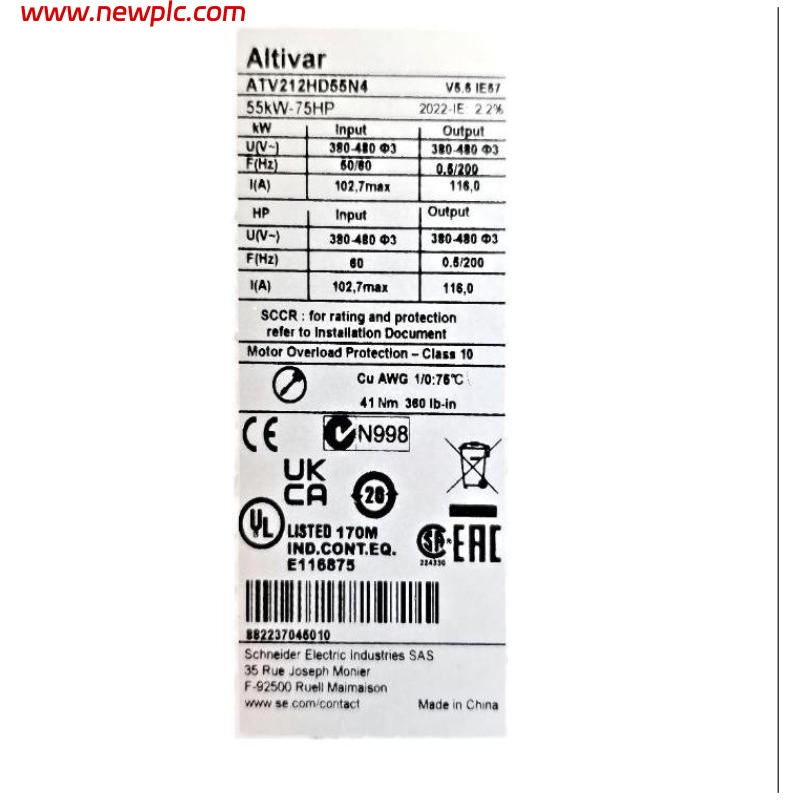

| Model / Part Number | ATV212HD55N4 |

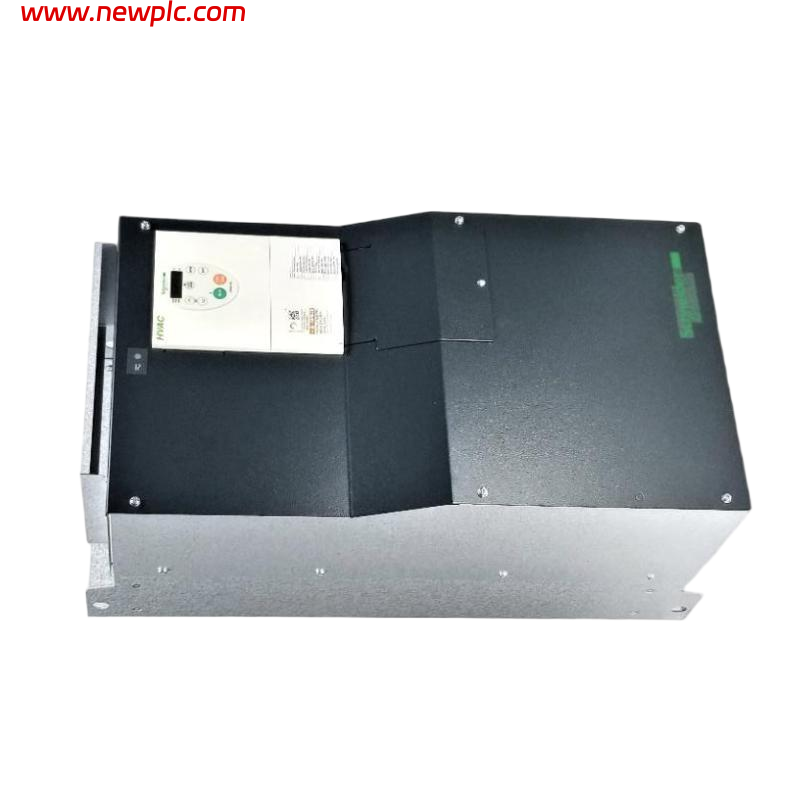

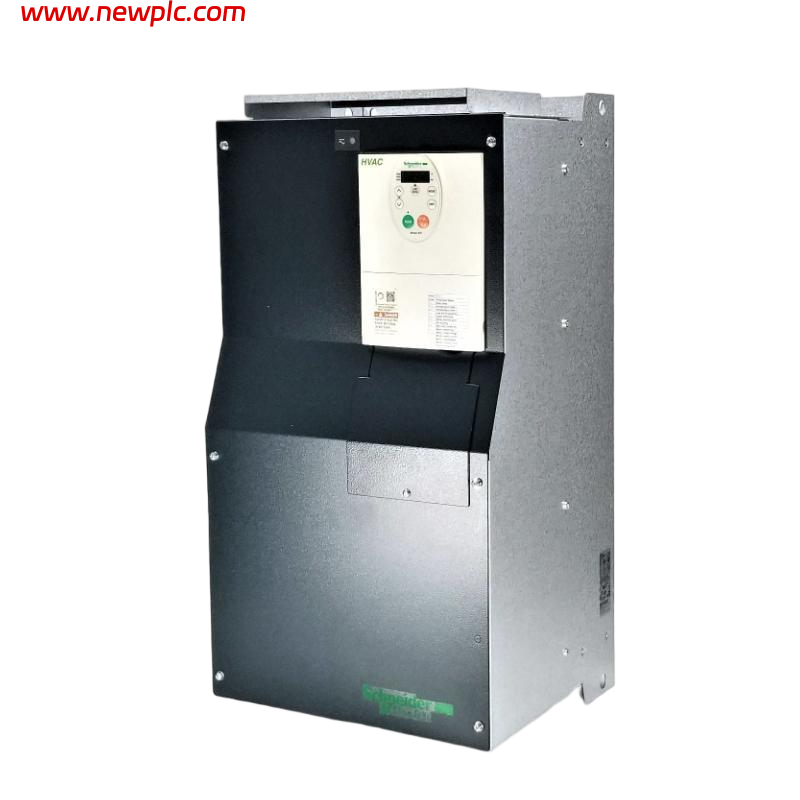

| Product Series | Altivar 212 Variable Frequency Drive (VFD) |
| Product Type | 3-phase AC motor speed controller |
| Nominal Motor Power | 55 kW (75 hp) |
| Supply Voltage | 380–480 VAC (three-phase) |
| Supply Voltage Limits | 323–528 VAC |
| Output Frequency Range | 0.5 – 200 Hz |
| EMC Filter | Built-in Class C2/C3 |
| Control Modes | V/f and sensorless flux vector control |
| Communication Protocols | Modbus, BACnet, METASYS N2, APOGEE FLN, LonWorks |
| Protection Rating | IP21 (indoor industrial) |
| Approvals | CE, UL, CSA, C-Tick, NOM |
| Mounting | Vertical panel (±10°) |
| Dimensions (W × H × D) | 320 × 630 × 290 mm |
| Net Weight | ≈ 55.4 kg |
| Typical Use | Speed and torque control of three-phase motors in HVAC, pumping, ventilation, and industrial systems |
FAQ
FAQ
Q1: What is this VFD used for?
It controls the speed and torque of three-phase AC motors by varying the output frequency and voltage, improving energy efficiency in HVAC, pumping, and similar applications.
Q2: What motor power rating does the ATV212HD55N4 support?
This drive is rated for motors up to 55 kW (75 hp) operating on a three-phase 380–480 VAC supply.
Q3: What voltage range can this drive accept?
It supports a supply voltage range from approximately 323 VAC to 528 VAC, typically used with 380–480 VAC systems.
Q4: What are the physical dimensions of this drive?
The unit measures about 320 mm wide × 630 mm high × 290 mm deep.
Q5: What is the net weight of the ATV212HD55N4?
The net weight of the drive is approximately 55.4 kg.
Q6: Does this drive include an EMC filter?
Yes, it has a built-in Class C2/C3 EMC filter to help reduce electrical noise and meet compatibility standards.
Q7: What communication protocols are supported?
It supports common industrial protocols such as Modbus, BACnet, METASYS N2, and APOGEE FLN, with optional LonWorks integration.
Q8: What protection rating does this model have?
It carries an IP21 protection rating, suitable for indoor industrial environments with limited dust and moisture.
