Technical Specifications
| Parameter | Specification |
|---|---|

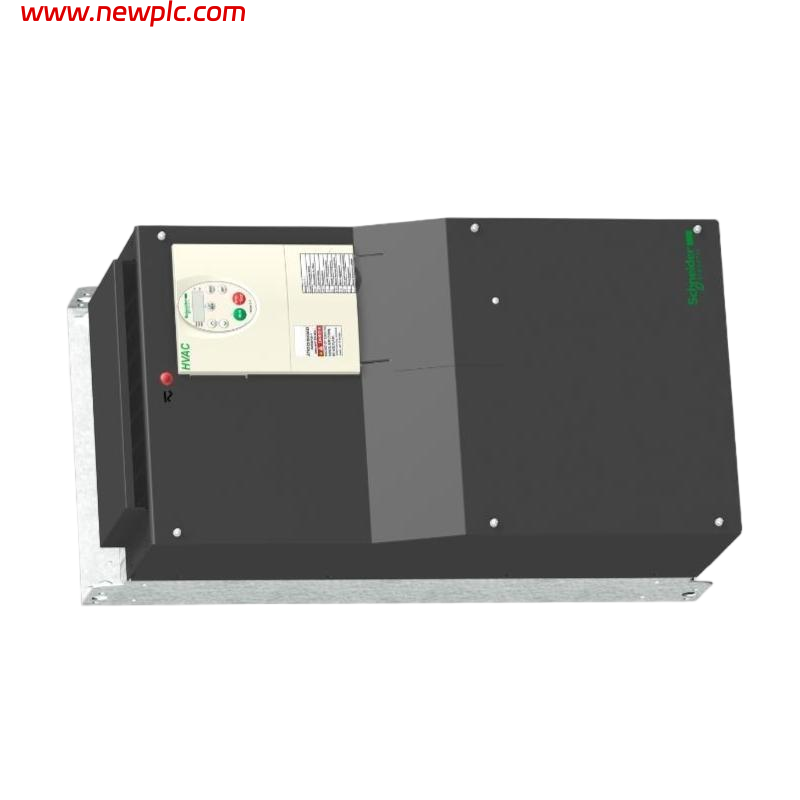

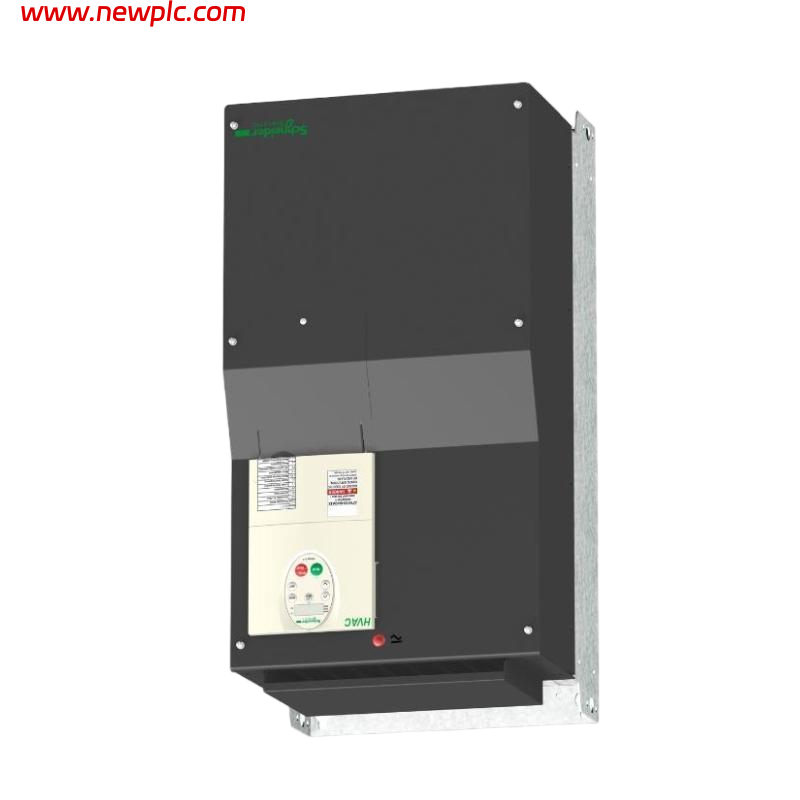

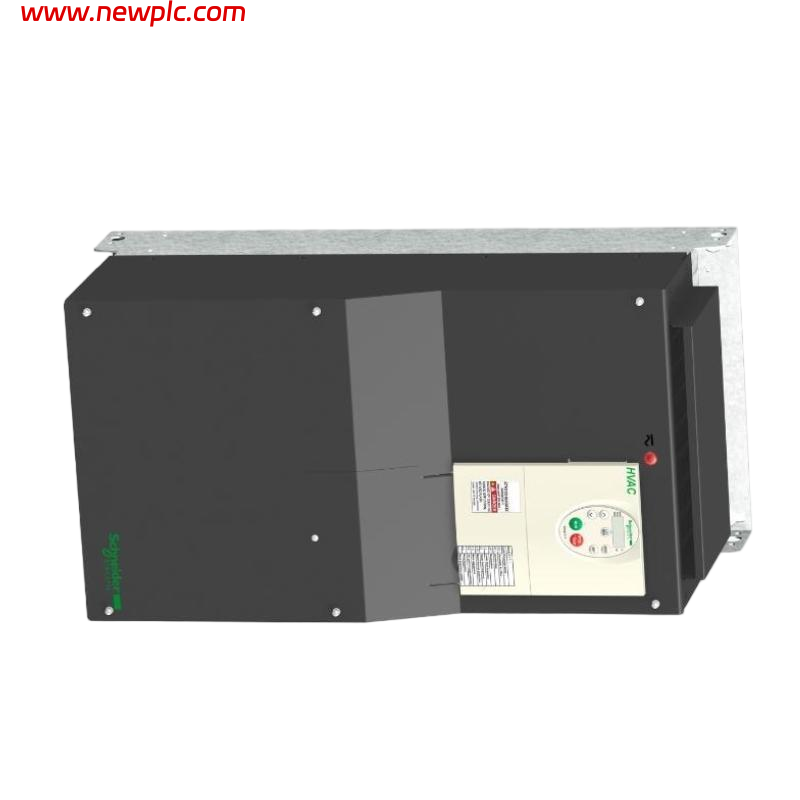

| Manufacturer | Schneider Electric ATV212HD75N4 |
| Model / Part Number | ATV212HD75N4 |
| Product Series | Altivar 212 Variable Frequency Drive (VFD) |
| Product Type | 3-phase AC motor speed controller |
| Nominal Motor Power | 75 kW (100 hp) |
| Supply Voltage | 380–480 VAC (3-phase) |
| Output Current | ≈ 160 A |
| Output Frequency Range | 0.5 – 200 Hz |
| Built-in EMC Filter | Class C2 / C3 |
| Control Modes | V/f (voltage/frequency) and sensorless flux vector |
| Communication Protocols | Modbus, BACnet, METASYS N2, APOGEE FLN |
| Protection Rating | IP21 (indoor industrial) |
| Standards & Approvals | CE, UL, CSA, C-Tick, NOM |
| Ambient Operating Temp. | −10 °C to +40 °C (typical) |
| Mounting | Vertical panel mounting (± 10°) |
| Dimensions (W × H × D) | 320 × 630 × 290 mm |
| Net Weight | ≈ 55.4 kg |
| Typical Use | Variable speed and torque control for HVAC, pumps, fans and industrial motors |
FAQ
FAQ
Q1: What is the primary use of the ATV212HD75N4 VFD?
It is used to precisely control the speed and torque of three-phase AC motors by varying the output frequency and voltage, increasing efficiency in HVAC, pumping, and industrial applications.
Q2: What motor power size is this drive designed to handle?
This model is designed for motors up to 75 kW (100 hp).
Q3: What voltage range does this variable frequency drive accept?
It accepts a three-phase supply voltage between 380 VAC and 480 VAC.
Q4: What are the physical dimensions of the ATV212HD75N4?
The unit measures approximately 320 mm wide × 630 mm high × 290 mm deep.
Q5: How much does this drive weigh?
The net weight is about 55.4 kg.
Q6: What protection rating does this model have?
It has an IP21 protection rating suitable for indoor industrial environments.
Q7: What output frequency range does this drive support?
It can vary the output frequency from 0.5 Hz to 200 Hz to control motor speed.
Q8: What communication protocols are integrated?
It supports common industrial communication protocols including Modbus, BACnet, METASYS N2, and APOGEE FLN.
