Technical Specifications
| Parameter | Value |
|---|---|

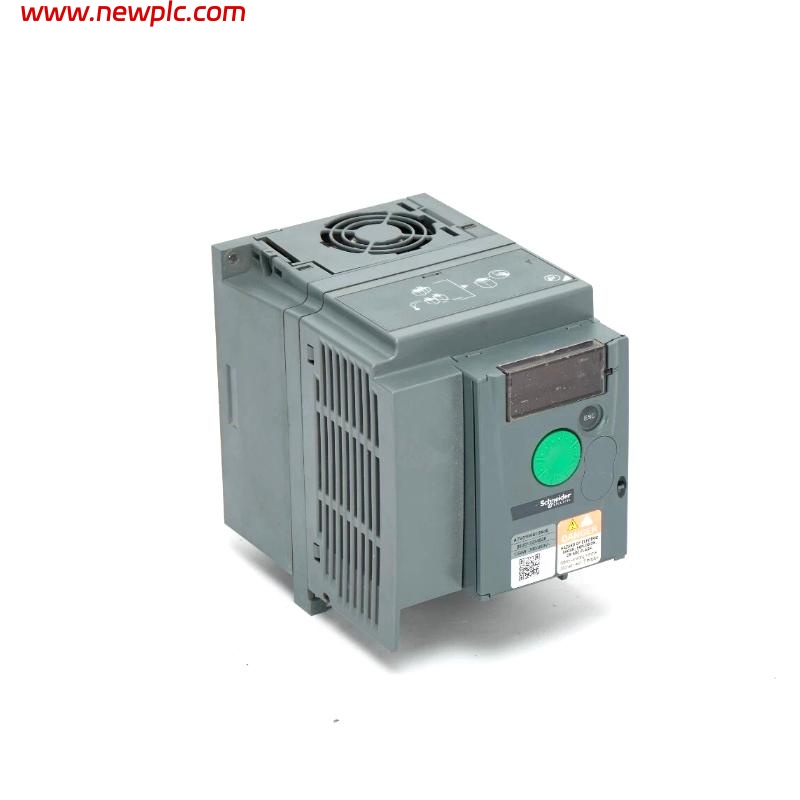

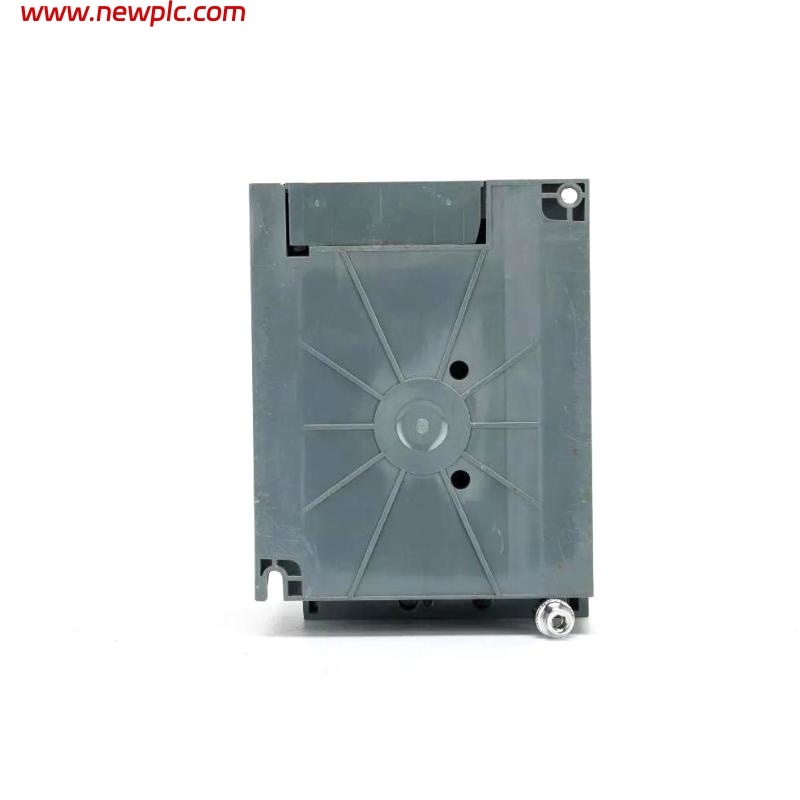

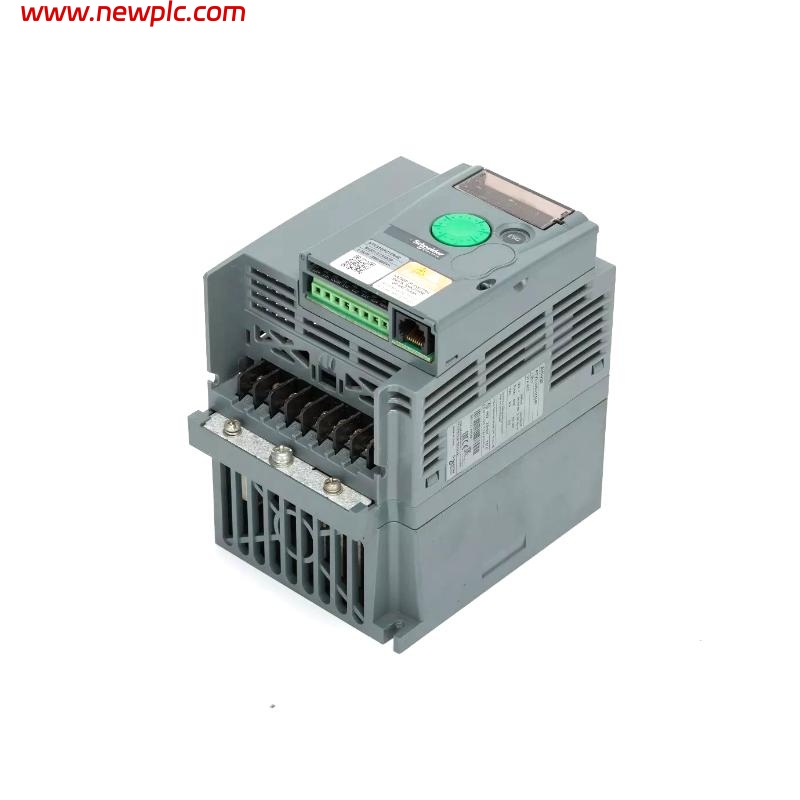

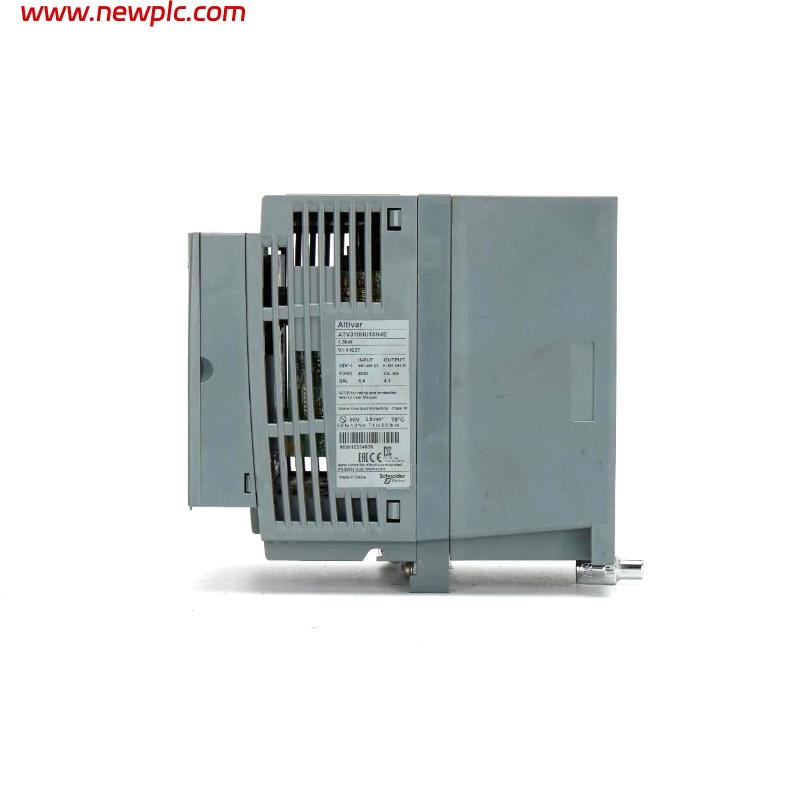

| Model | Schneider ATV310HU15N4E |
| Product type | Variable Speed Drive |
| Rated power | 1.5 kW |
| Input voltage | 380-460 V AC, 3-phase |
| Output frequency | 0.5…400 Hz |
| Control method | V/F and Sensorless Vector Control |
| Communication interface | Modbus (RS485, RTU) |
| Dimensions (W x H x D) | 143 x 105 x 151 mm |
| Weight | 1.1 kg |
| Protection rating | IP20 |
| Operating temperature | -10°C to +50°C |
| Mounting | Panel mounting |
| Compliance | IEC/EN standards, CE marked |
FAQ
FAQ
Q1: What is the rated power of the ATV310HU15N4E?
A1: The rated power of the ATV310HU15N4E is 1.5 kW.
Q2: Which motor types can be controlled by this drive?
A2: The ATV310HU15N4E is designed to control asynchronous (induction) motors.
Q3: What communication protocols are supported?
A3: This model supports Modbus RTU communication over RS485.
Q4: What is the output frequency range?
A4: The output frequency can be adjusted between 0.5 Hz and 400 Hz.
Q5: What are the dimensions and weight of the drive?
A5: The dimensions are 143 x 105 x 151 mm, and the weight is 1.1 kg.
Q6: What type of mounting is required?
A6: The ATV310HU15N4E is designed for panel mounting.
Q7: Is the drive suitable for use in harsh environments?
A7: The drive has an IP20 protection rating and operates in temperatures from -10°C to +50°C. Additional enclosure may be required for harsher conditions.
Q8: Does the ATV310HU15N4E comply with international standards?
A8: Yes, it complies with IEC/EN standards and is CE marked.
