Technical Specifications
| Parameter | Description |
|---|---|

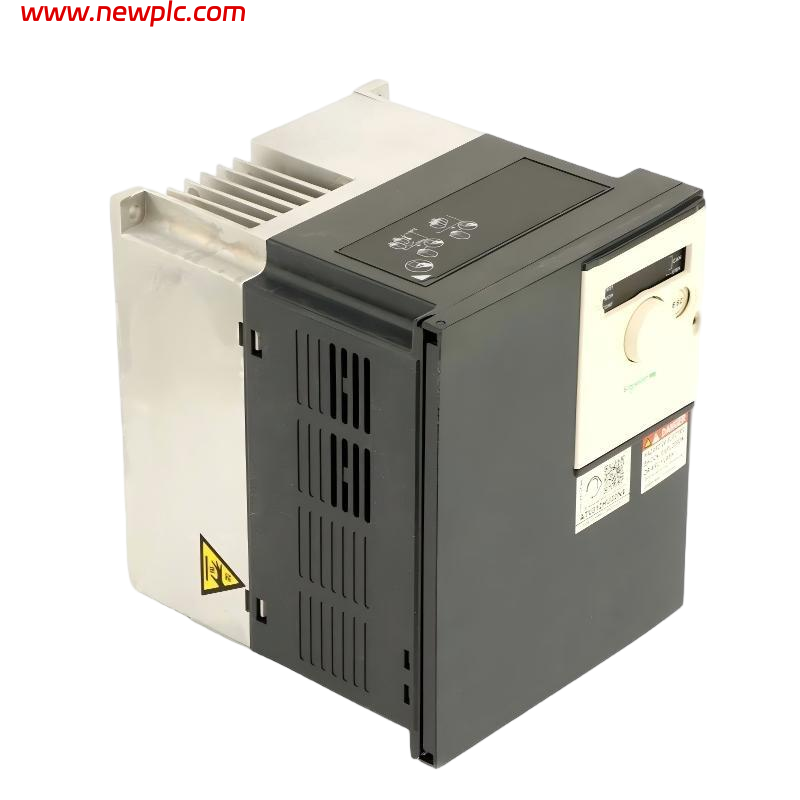

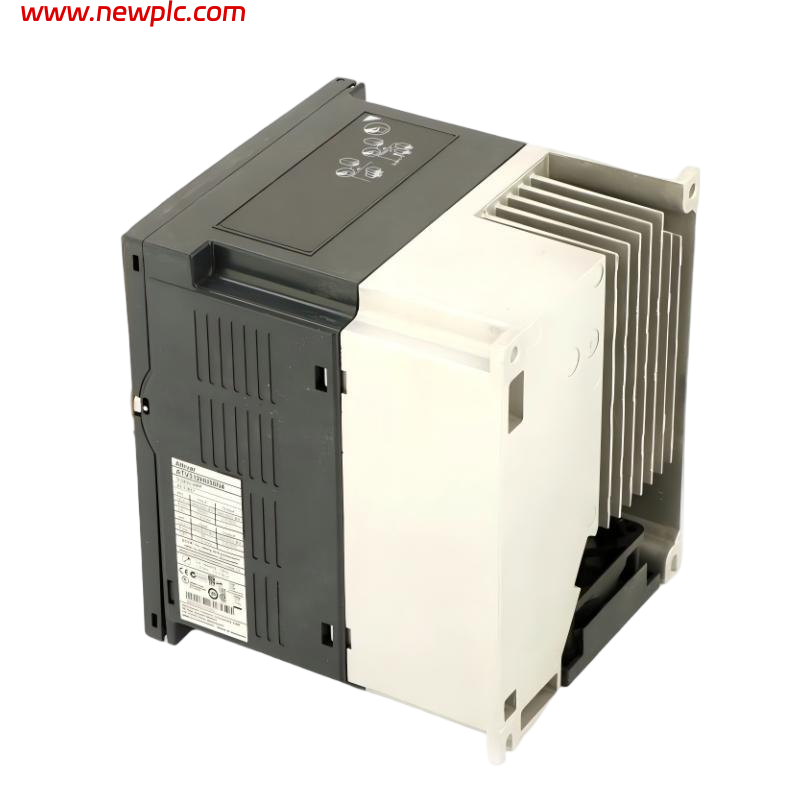

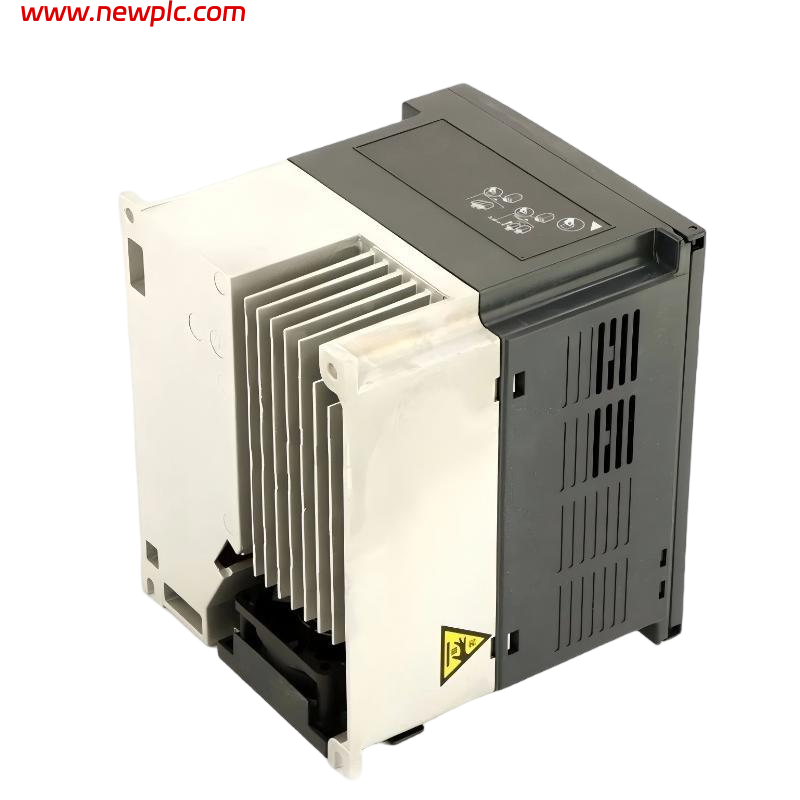

| Product | Schneider Electric ATV312HU30N4 |
| Series | Altivar 312 |
| Model Number | ATV312HU30N4 |
| Drive Type | Variable Speed Drive |
| Motor Power | 3 kW (4 HP) |
| Rated Supply Voltage | 3‑phase, 380–500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Apparent Power | 7.1 kVA |
| Line Current | 10.9 A @ 380 V, 8.3 A @ 500 V |
| Output Frequency Range | 0–500 Hz |
| Control Method | Sensorless flux vector control with PWM |
| Overload Capacity | 150% for 60 s |
| EMC Filter | Integrated |
| Communication Interfaces | Modbus RTU, CANopen (optional) |
| Digital Inputs | 6 programmable |
| Analog Inputs | 3 configurable |
| Analog Output | 1 (0–20 mA or 0–10 V) |
| Relay Outputs | 2 (1NO+1NC / NC) |
| Display | 4‑digit LED |
| Protection Rating | IP20 standard (options: IP21/IP31/IP41) |
| Cooling Method | Forced air cooling |
| Operating Temperature | −10 °C to +50 °C |
| Storage Temperature | −25 °C to +70 °C |
| Installation | Wall or panel mount |
| Dimensions (W × H × D) | 142 × 184 × 152 mm |
| Weight | 3.1 kg |
FAQ
FAQ
Q1: What motor power can the ATV312HU30N4 handle?
It supports up to 3 kW (4 HP) motor power.
Q2: What supply voltage and frequency range does it require?
It operates on three‑phase 380–500 V AC at 50 or 60 Hz.
Q3: Can it integrate with automation systems?
Yes — it supports Modbus RTU and optional CANopen communication.
Q4: Does the drive include an EMC filter?
Yes, it has an integrated EMC filter.
Q5: What control method does the drive use?
It uses sensorless flux vector control with PWM for precise speed regulation.
Q6: What protections are built into the drive?
It provides overcurrent, overvoltage, undervoltage, overheating, and motor protection functions.
Q7: What are typical applications for this drive?
Suitable for pumps, fans, conveyors, packaging, textile machines, and general industrial equipment.
Q8: How should this drive be installed?
Install it on a wall or panel with adequate ventilation for forced air cooling.
