Technical Specifications
| Parameter | Description |
|---|---|

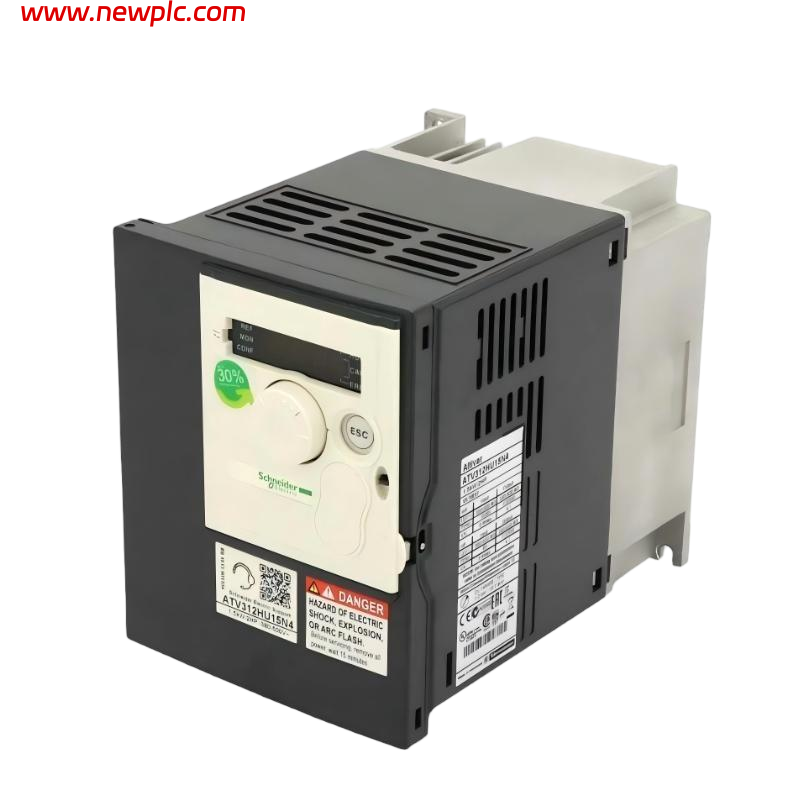

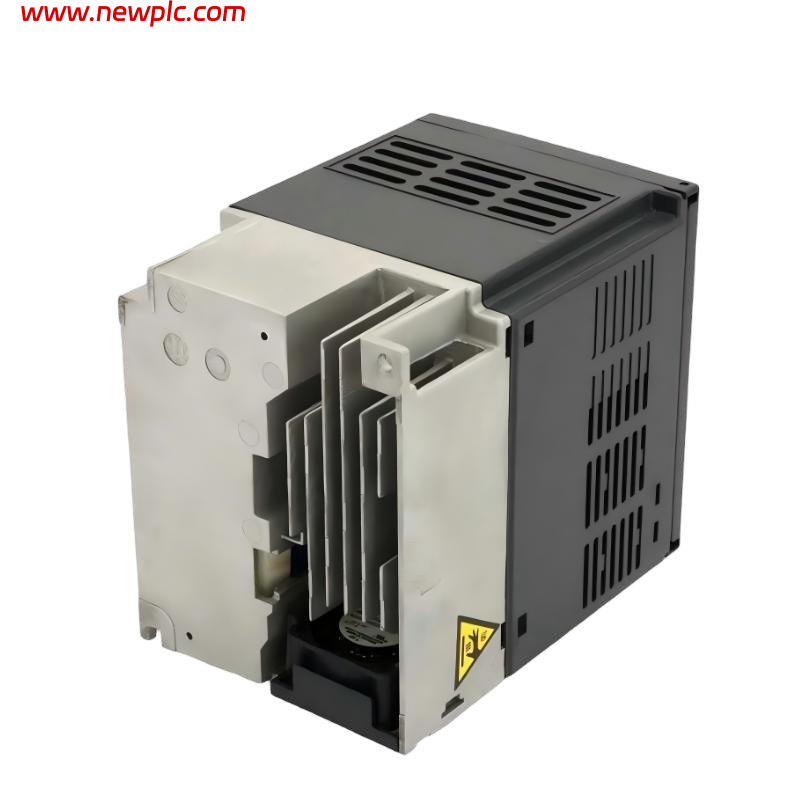

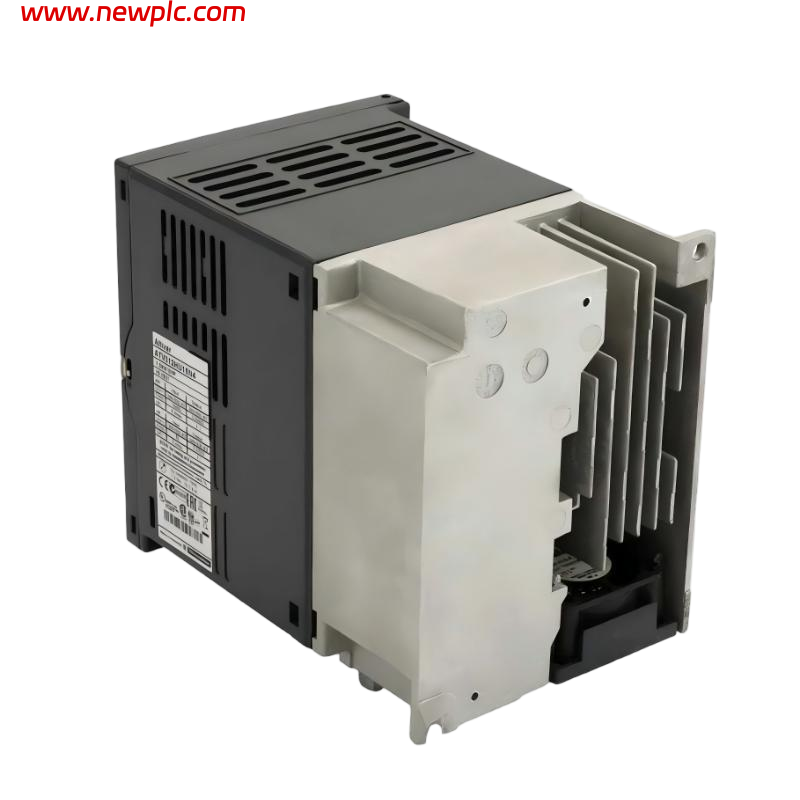

| Product | Schneider Electric ATV312HU15N4 |
| Series | Altivar 312 |
| Model Number | ATV312HU15N4 |
| Drive Type | Variable Speed Drive (VSD) |
| Rated Motor Power | 1.5 kW (2 HP) |
| Supply Voltage | 3‑phase, 380–500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Control Method | V/f control, sensorless vector PWM |
| Output Current | 6.4 A at 380 V, 4.8 A at 500 V |
| Apparent Power | 4.2 kVA |
| Overload Capacity | 150% for 60 s |
| Integrated EMC Filter | Yes |
| Communication Interfaces | Modbus, CANopen |
| Display | LED 4‑digit with jog dial |
| Protection Rating | IP20 standard |
| Operating Temperature | −10 °C to +50 °C |
| Storage Temperature | −25 °C to +70 °C |
| Installation | Vertical mounting |
| Dimensions (H × W × D) | 143 × 107 × 152 mm |
| Weight | 1.8 kg |
FAQ
FAQ
Q1: What is the rated power of this drive?
The ATV312HU15N4 is rated for 1.5 kW (2 HP) motor power.
Q2: What voltages does this drive support?
It supports 3‑phase supply voltages from 380 to 500 V AC at 50/60 Hz.
Q3: Which types of motors can be controlled?
It is designed for three‑phase asynchronous induction motors.
Q4: Does the drive include an EMC filter?
Yes, an integrated EMC filter is included.
Q5: What communication options are available?
The drive supports Modbus and CANopen communication protocols.
Q6: How is the speed controlled or configured?
Speed and parameters can be adjusted via the local keypad with jog dial or through software like SoMove.
Q7: Can this drive handle overload conditions?
Yes, it can handle 150% overload for up to 60 seconds.
Q8: What are typical industrial use cases?
It is suitable for conveyors, pumps, fans, packaging machines, and other machine speed control applications.
