Technical Specifications
| Parameter | Description |
|---|---|
| Product Series | Altivar 312 |

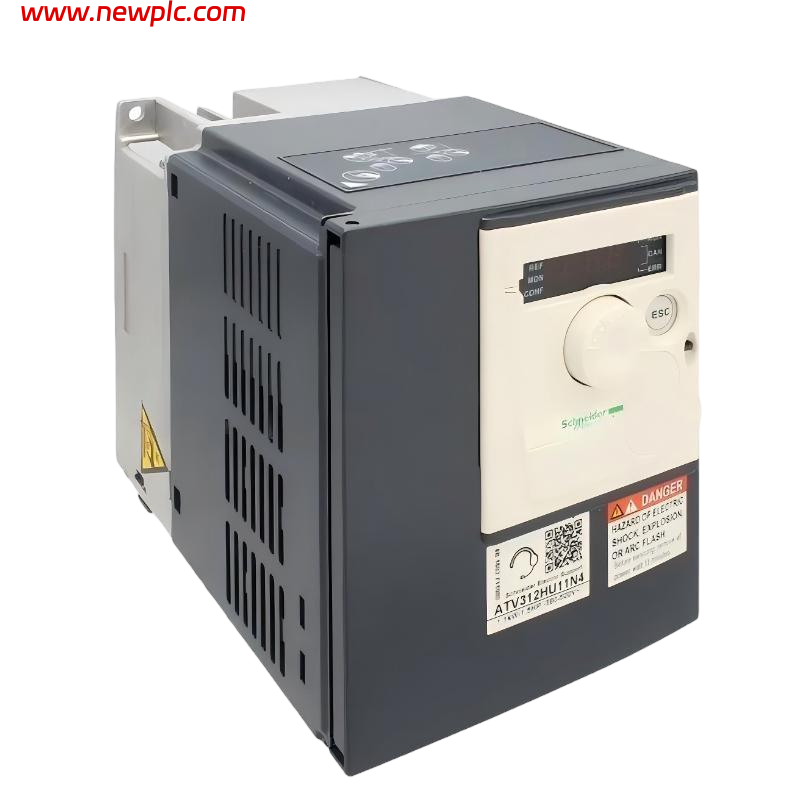

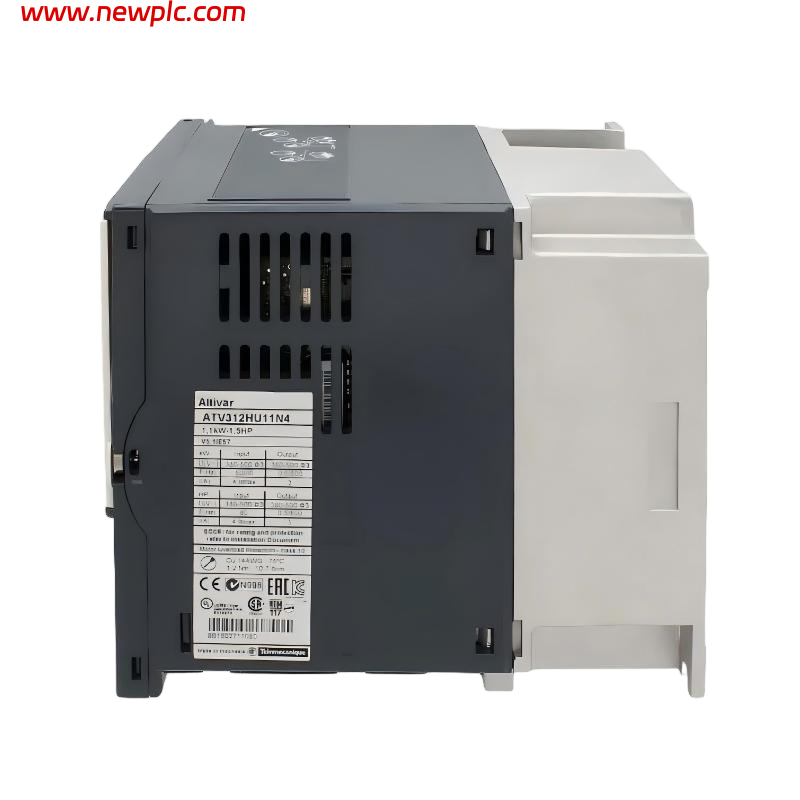

| Model Number | ATV312HU11N4 |
| Drive Type | Variable Speed Drive (VSD) |
| Rated Motor Power | 1.1 kW (1.5 hp) |
| Supply Voltage | 3-phase, 380–500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Output Voltage | 3-phase, proportional to input |
| Output Frequency Range | 0.5–400 Hz |
| Rated Output Current | 3.0 A |
| Control Method | V/F control, Sensorless Vector Control |
| Overload Capacity | 150% for 60 s, 170% for 2 s |
| Integrated EMC Filter | Yes |
| Communication Interface | Modbus RTU (RS485) |
| Analog Inputs | 2 (0–10 V / 4–20 mA selectable) |
| Analog Outputs | 1 (0–10 V or 4–20 mA) |
| Digital Inputs | 4 programmable |
| Digital Outputs | 1 relay output |
| Protection Rating | IP20 |
| Cooling Method | Forced air cooling |
| Operating Temperature | −10 °C to +50 °C (derating above 40 °C) |
| Storage Temperature | −25 °C to +70 °C |
| Installation | Wall-mounted |
| Dimensions (H × W × D) | 142 × 72 × 131 mm |
| Weight | 1.1 kg |
FAQ
FAQ
Q1: What applications is the ATV312HU11N4 designed for?
It is intended for conveyors, pumps, fans, compressors, and small material-handling systems.
Q2: Can this drive operate with different motor types?
Yes, it supports three-phase asynchronous induction motors.
Q3: Does the ATV312HU11N4 support communication with PLCs?
Yes, it has a built-in Modbus RTU (RS485) interface for integration with PLCs.
Q4: Is an external EMC filter required?
No, the drive includes an integrated EMC filter.
Q5: How is motor speed controlled on this drive?
Speed can be controlled via the keypad, analog inputs, digital inputs, or Modbus communication.
Q6: What protection functions are included?
It protects against overcurrent, overvoltage, undervoltage, overheating, motor overload, and short circuits.
Q7: Can the drive operate in high-temperature environments?
Yes, up to 50 °C, with derating above 40 °C.
Q8: Is this model suitable for continuous operation?
Yes, it is designed for continuous industrial use when installed according to Schneider Electric guidelines.
