Technical Specifications
| Parameter | Specification |
|---|---|

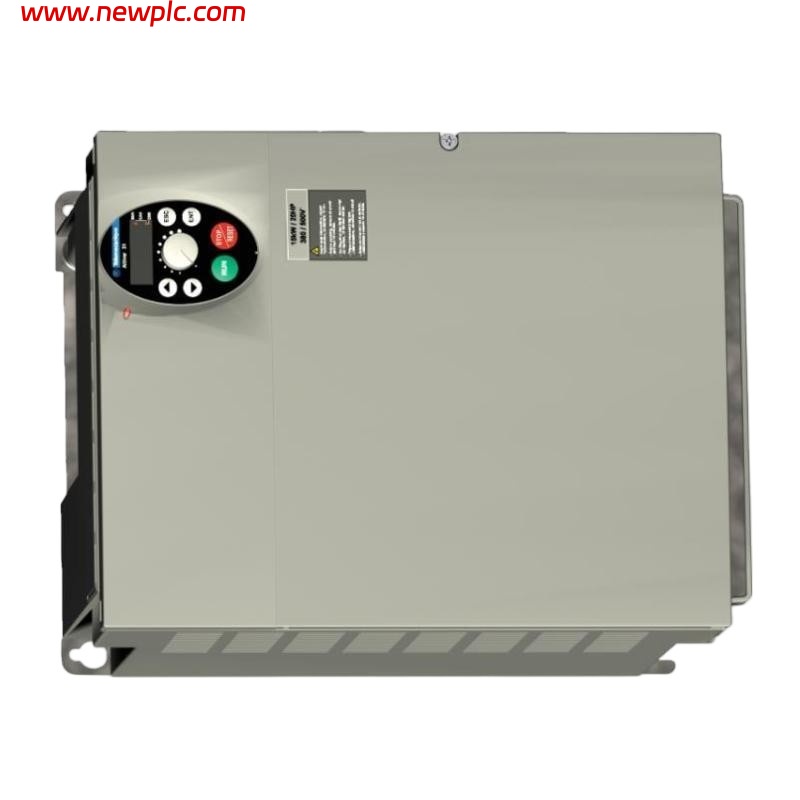

| Product | ATV31HD15N4A |
| Manufacturer | Schneider Electric |
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 31 |
| Rated Motor Power | 15 kW (20 hp) at 4 kHz load frequency |
| Rated Supply Voltage | 380…500 V AC (-5%…+5%), 3‑phase |
| Supply Frequency | 50…60 Hz (-5%…+5%) |
| Rated Output Current | 33 A at 4 kHz |
| Line Current | 36.8 A at 500 V; 48.2 A at 380 V |
| Apparent Power | 32 kVA |
| Maximum Transient Current | 49.5 A for 60 s |
| Switching Frequency | 2…16 kHz (adjustable) |
| Output Frequency Range | 0.0005…0.5 kHz |
| Control Method | Sensorless flux vector control with PWM |
| EMC Filter | Integrated |
| Protection | IP20 enclosure (standard drive protection) |
| Communication Protocols | CANopen, Modbus (adapter required) |
| Ambient Operating Temp | -10…50 °C (derating may apply at higher) |
| Operating Altitude | ≤1000 m without derating |
| Dielectric Strength | ~2410 V DC / ~3400 V AC between terminals |
| Weight | ~9–10.7 kg (~19.8–23.6 lb) |
| Dimensions (H × W × D) | ~330 mm × 245 mm × 190 mm (~13.0″ × 9.6″ × 7.5″) |
| Cooling | Heat sink assembly included |
| Standards/Certifications | EN 50178, CE marked |
| Application | Simple machine asynchronous motor control |
FAQ
FAQ
Q1. What is the rated power and voltage for this drive?
It is rated for 15 kW motor power with a 3‑phase 380–500 V supply.
Q2. What control method does the ATV31HD15N4A use?
It uses sensorless flux vector control with PWM for efficient motor control.
Q3. What is the output frequency range?
The drive supports an output frequency from 0.0005 kHz up to 0.5 kHz.
Q4. Does the drive include an EMC filter?
Yes, an integrated EMC filter is included.
Q5. What protection rating does the drive have?
The enclosure provides IP20 protection for standard industrial applications.
Q6. What communication options are available?
It supports CANopen and Modbus protocols via optional adapters.
Q7. How heavy is the drive?
It weighs approximately 9 kg to 10.7 kg depending on configuration.
Q8. What motors is this drive designed for?
It is designed for asynchronous motors in simple machine applications.
