Technical Specifications
| Parameter | Specification |
|---|---|

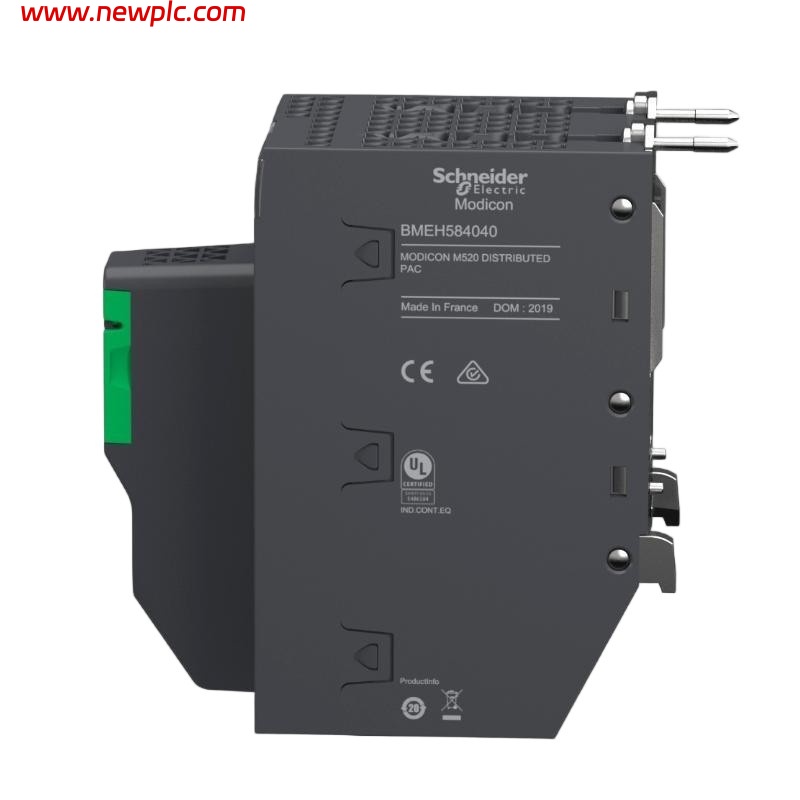

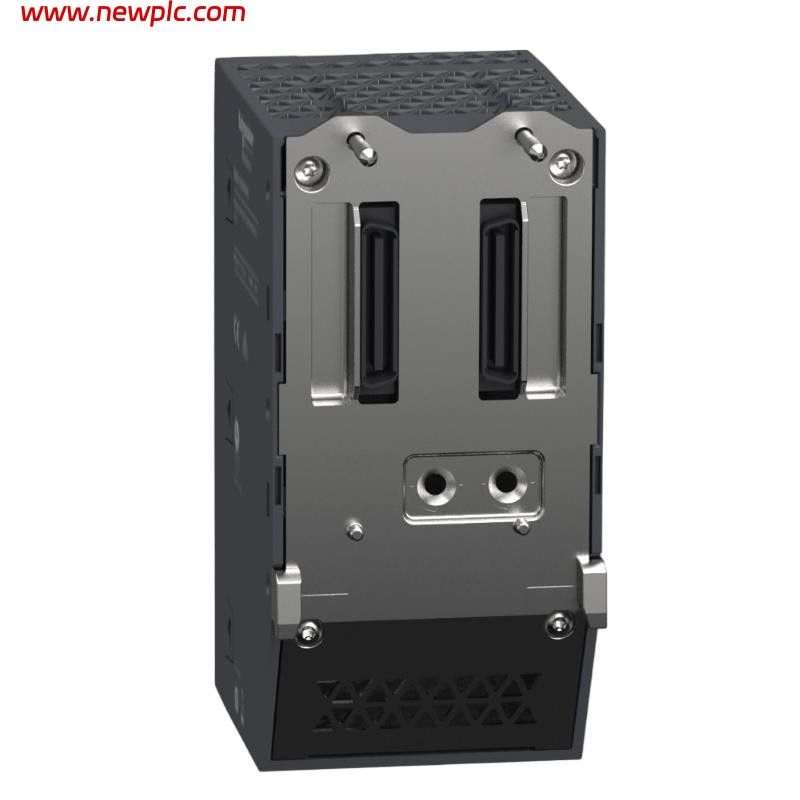

| Product | Schneider Electric BMEH584040 |
| Manufacturer | Schneider Electric |
| Model Number | BMEH584040 |
| Product Type | Redundant HSBY Processor Module (Modicon M580 ePAC) |
| Series | Modicon M580 |
| Function | Ensures continuous system operation through Hot Standby (HSBY) redundancy |
| Mounting | Rack/backplane mounted configuration |
| Program Memory | 16 MB integrated RAM |
| Data Memory | 2 048 KB integrated RAM |
| System Memory | 10 KB integrated RAM |
| Flash Storage | 4 GB expandable flash memory |
| Processing Speed | Up to ~40 Kinst/ms (Boolean operations) |
| Local I/O Support | ~16 384 discrete, ~4 096 analogue local I/O channels |
| Remote I/O Stations | Up to 16 (two backplanes per X80/Quantum drop) |
| Distributed Devices | Up to 64 distributed devices |
| Communication Ports | 1 × Ethernet TCP/IP service port; 2 × Ethernet TCP/IP device network ports; 1 × Ethernet HSBY port; 1 × Mini‑B USB port |
| Communication Protocols | Ethernet TCP/IP, Modbus TCP |
| Security Features | Achilles certification, embedded firewall, HTTPS/IPSec support |
| Control & I/O Types Supported | Motion control, counters, SSI encoders, HART, timestamping |
| Power Supply | 24 V DC |
| Current Consumption | ~360 mA at 24 V DC |
| MTBF (Mean Time Between Failures) | ~600 000–650 000 hours |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | −40 °C to 85 °C |
| Humidity | 5 %–95 % at 55 °C (non‑condensing) |
| Altitude | 0–2000 m (derating above 2000 m) |
| Protection Rating | IP20 |
| Vibration Resistance | ~3 gn |
| Shock Resistance | ~30 gn |
| Net Weight | ~0.849 kg |
| Packaging Dimensions (example) | ~9.1 × 18.0 × 25.8 cm (approx. single unit) |
| Packaging Weight (example) | ~0.884 kg |
| Standards & Compliance | IEC 61131‑2, IEC 61010‑2‑201, UL/CSA 61010‑2‑201, CE, RCM, EAC |
FAQ
FAQ
Q1. What type of device is the BMEH584040?
It is a redundant hot‑standby processor module from the Modicon M580 ePAC series designed for high‑availability automation systems.
Q2. What redundancy capability does this module provide?
It supports Hot Standby (HSBY) redundancy, allowing seamless failover between primary and standby CPUs to ensure continuous operation.
Q3. Which communication interfaces are available on this processor?
The module includes Ethernet TCP/IP service and device ports, an HSBY Ethernet port for redundancy, and a Mini‑B USB port for service and configuration.
Q4. How much memory does this module have?
It integrates 16 MB of program RAM, 2 048 KB of data RAM, 10 KB system RAM, and a 4 GB expandable flash for storage.
Q5. What is the operating temperature range?
This processor module typically operates between 0 °C and 60 °C and can be stored from −40 °C to 85 °C.
Q6. What is the net weight of the BMEH584040?
The module weighs about 0.849 kg.
Q7. What industrial protocols does it support?
It supports Ethernet TCP/IP and Modbus TCP for communication with networks and distributed devices.
Q8. What types of I/O and devices can this module manage?
It can handle large local and remote I/O configurations, including motion control, counters, SSI, HART devices, timestamping, and distributed devices across Ethernet.
