Technical Specifications
| Parameter | Description |
|---|---|

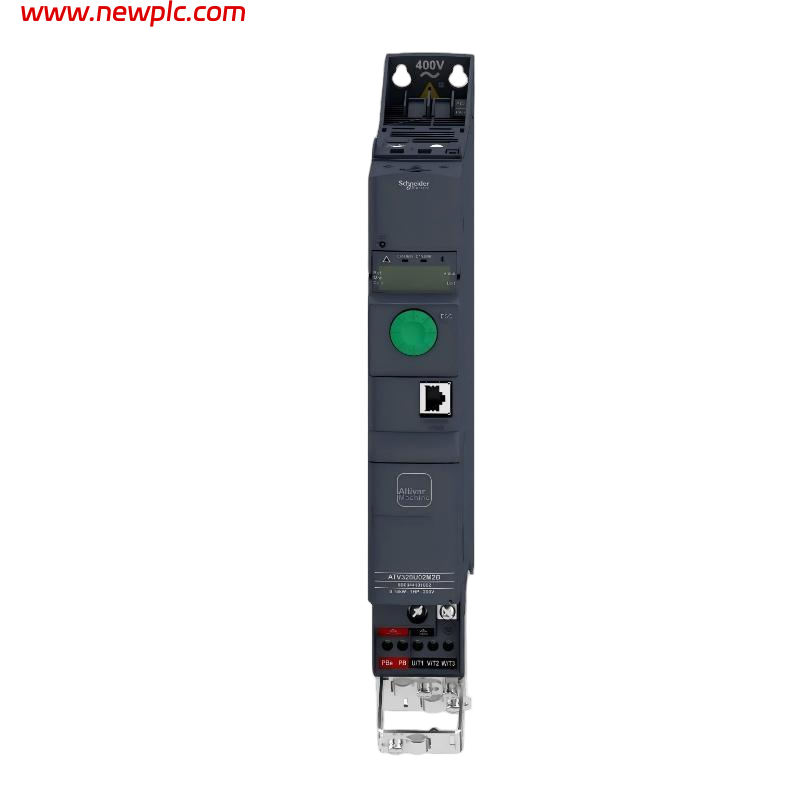

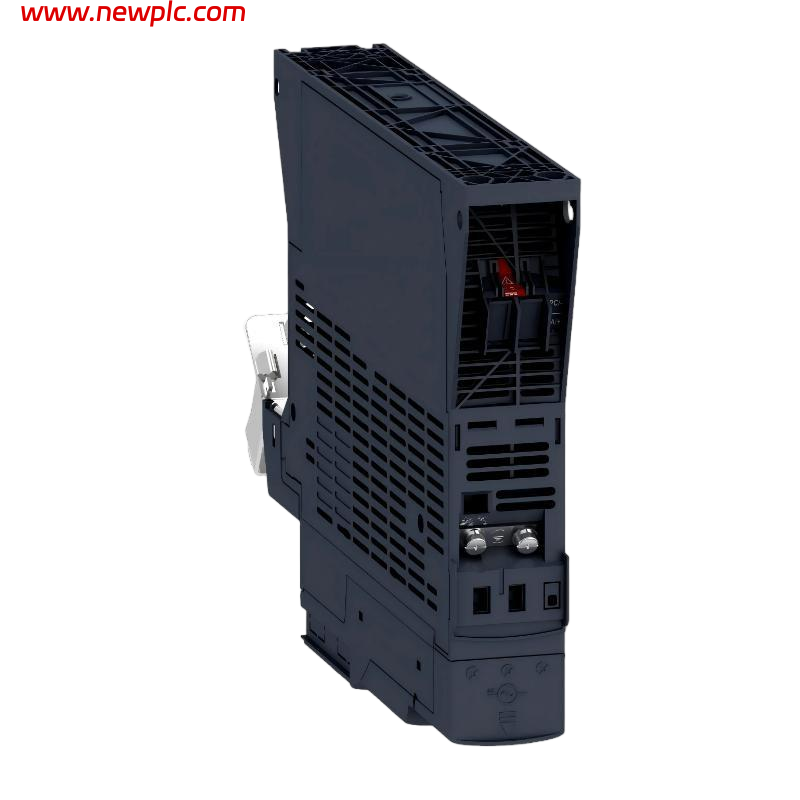

| Product | Schneider Electric ATV320U07N4B |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U07N4B |
| Drive Type | Variable Frequency Drive (VFD) |
| Motor Power | 0.75 kW (1 HP) |
| Supply Voltage | 3-phase, 380…500 V AC (-15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Nominal Output Current | 2.3 A |
| Integrated EMC Filter | Class C2 EMC filter |
| Control Methods | Voltage/Frequency, Sensorless vector control |
| Communication Interfaces | Modbus serial, CANopen |
| Safety Functions | Safe Torque Off (STO) |
| Maximum Output Frequency | 599 Hz |
| Protection Rating | IP20 |
| Operating Temperature | −10 °C to +50 °C (without derating) |
| Storage Temperature | −25 °C to +70 °C |
| Discrete Inputs | 7 programmable |
| Discrete Outputs | 3 open-collector outputs |
| Switching Frequency | Adjustable ~2–16 kHz (nominal 4 kHz) |
| Braking to Standstill | DC injection |
| Mounting | Cabinet / Panel mount |
| Dimensions (H × W × D) | 185 × 45 × 155 mm (typical) |
| Weight | ~1.0 kg |
FAQ
FAQ
Q1: What is the power rating of this drive?
The ATV320U07N4B is rated for 0.75 kW (1 HP) motor output.
Q2: What supply voltage and frequency does it require?
It operates on a 3-phase 380–500 V AC supply at 50/60 Hz.
Q3: What control methods does the drive support?
This model supports voltage/frequency control and sensorless vector control.
Q4: What communication interfaces are available?
It includes Modbus serial and CANopen communication protocols.
Q5: Does the drive include safety functions?
Yes, it includes Safe Torque Off (STO) for enhanced machine safety.
Q6: What is the ingress protection rating?
The unit has an IP20 protection rating, suitable for installation inside enclosures.
Q7: What are the physical dimensions and weight?
Typical dimensions are 185 × 45 × 155 mm with a weight around 1.0 kg.
Q8: What industrial applications is this drive suitable for?
It is suitable for OEM machinery, conveyors, pumps, fans, and general automation requiring compact, flexible motor control.
