Technical Specifications
| Parameter | Description |
|---|---|

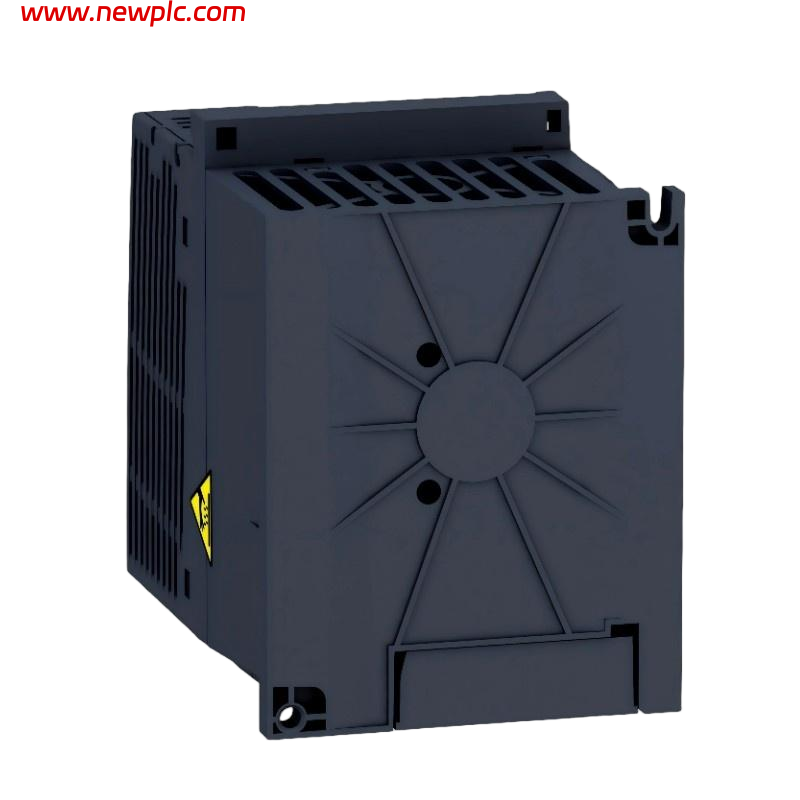

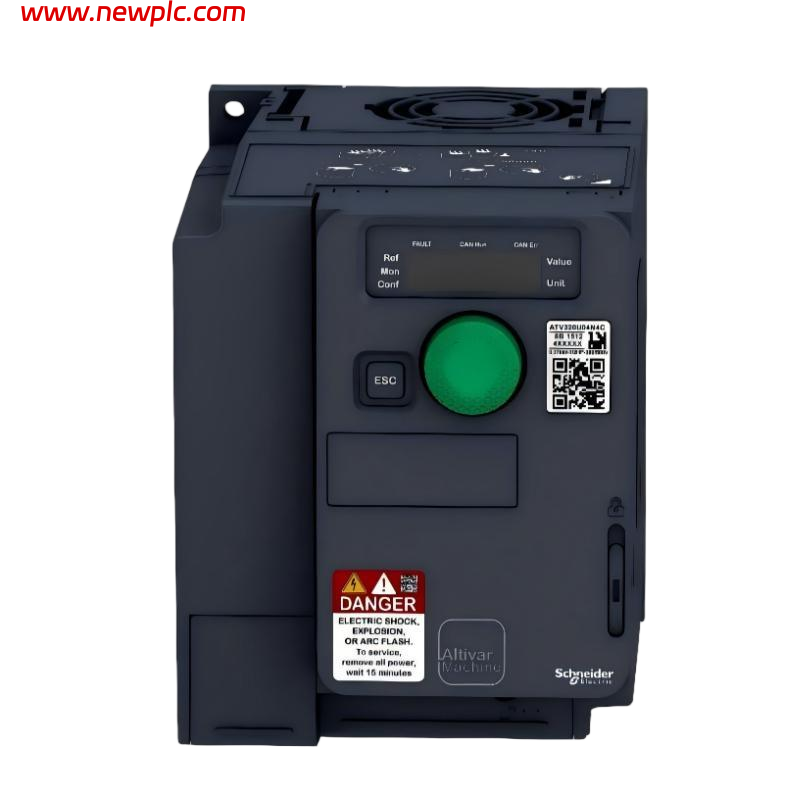

| Product | Schneider Electric ATV320U07N4C |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U07N4C |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 0.75 kW (1 HP) |
| Supply Voltage | 3-phase, 380–500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | 2.3 A |
| Maximum Input Current | ~3.6 A |
| Apparent Power | ~2.4 kVA |
| Output Frequency Range | 0.1–599 Hz |
| Control Method | Sensorless Vector Control |
| EMC Filter | Integrated Class C2 |
| Communication Interfaces | Modbus Serial, CANopen |
| Brake Chopper | Integrated |
| Safety Functions | Safe Torque Off (STO), Safe Stop 1 (SS1), Safely Limited Speed (SLS) |
| Protection Rating | IP20 / NEMA 1 |
| Mounting Type | Wall mount, vertical ±10° |
| Control Inputs/Outputs | Programmable digital and analog I/O (various configurations) |
| Operating Temperature | −10 °C to +50 °C (without derating) |
| Storage Temperature | −25 °C to +70 °C |
| Dimensions (W × H × D) | 105 × 142 × 158 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: What motor power is the ATV320U07N4C designed for?
It is designed for 0.75 kW (1 HP) three-phase motor applications.
Q2: What supply voltage and frequency range does this drive require?
This drive operates on a three-phase 380–500 V AC supply at 50/60 Hz.
Q3: What type of control method does the ATV320U07N4C use?
It uses sensorless vector control for precise speed and torque regulation.
Q4: Does the drive include an EMC filter?
Yes, it includes an integrated Class C2 EMC filter for compliance with electromagnetic standards.
Q5: What communication interfaces are supported?
It supports Modbus serial and CANopen communication protocols.
Q6: What built-in safety functions does this model offer?
It includes Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS).
Q7: What are the physical dimensions and weight of the ATV320U07N4C?
Dimensions are 105 × 142 × 158 mm and the weight is 1.2 kg.
Q8: What is the protection rating of this drive?
The drive has an IP20 / NEMA 1 protection rating, suitable for indoor panel mount installation.
