Technical Specifications
| Parameter | Description |
|---|---|

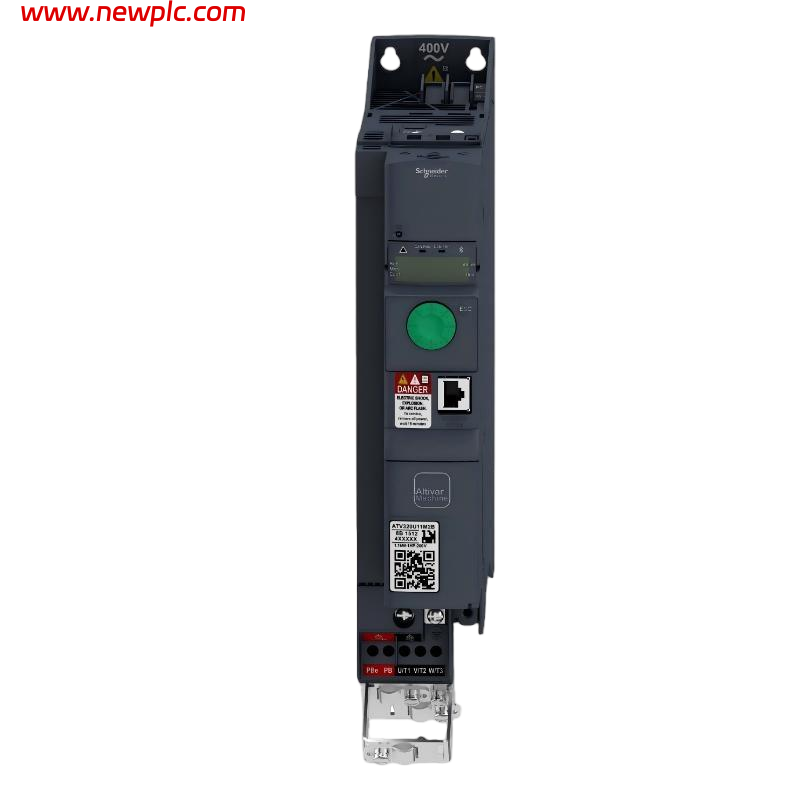

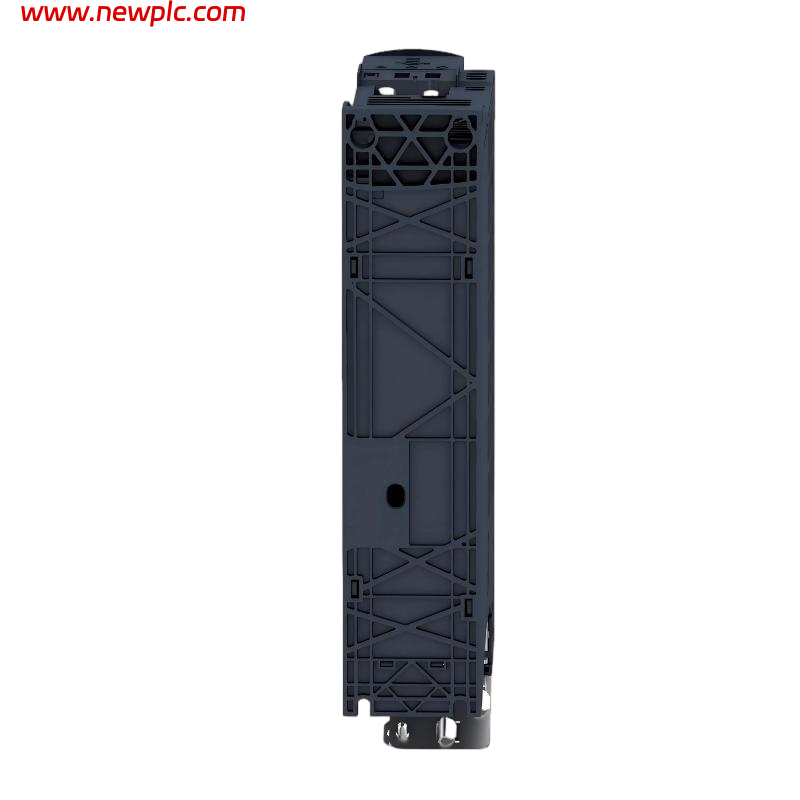

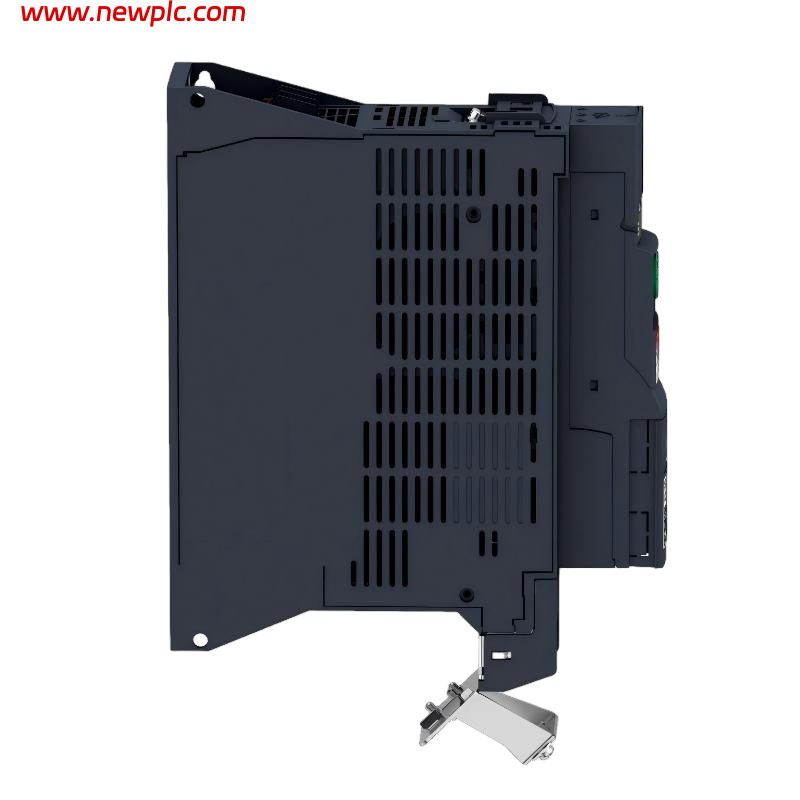

| Product | Schneider Electric ATV320U11N4B |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U11N4B |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 1.1 kW (1.5 HP) |
| Supply Voltage | Three-phase, 380–500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | 3 A nominal (3.4 A typical) |
| Output Frequency Range | 0.1–599 Hz |
| Control Methods | V/f control, Sensorless Flux Vector Control |
| EMC Filter | Integrated Class C2 |
| Communication Interfaces | Modbus RTU, CANopen (optional) |
| Safety Functions | Safe Torque Off (STO), Safely Limited Speed (SLS) |
| Protection Rating | IP20 |
| Cooling Method | Integrated fan (book format) |
| Mounting | Cabinet / vertical panel mount |
| Dimensions (W × H × D) | 105 × 143 × 158 mm (~book format) |
| Weight | 1.2–1.9 kg (varies by source) |
| Protection Functions | Overcurrent, Overvoltage, Undervoltage, Short-circuit, Thermal protection |
FAQ
FAQ
Q1: What motor power is the ATV320U11N4B rated for?
It is rated for 1.1 kW (1.5 HP) three-phase motors.
Q2: What supply voltage and frequency does this drive require?
It operates on a three-phase 380–500 V AC supply at 50/60 Hz.
Q3: What control methods are supported by this model?
It supports V/f control and sensorless flux vector control for flexible motor speed and torque management.
Q4: Does the drive include any EMC filtering?
Yes, the ATV320U11N4B includes an integrated Class C2 EMC filter.
Q5: What communication interfaces are available?
It supports Modbus RTU and CANopen communication (with optional modules).
Q6: What safety functions are built into this drive?
Built-in safety functions include Safe Torque Off (STO) and Safely Limited Speed (SLS).
Q7: What are the physical dimensions and approximate weight of this drive?
Typical dimensions are 105 × 143 × 158 mm and weight ranges from approximately 1.2 kg to 1.9 kg.
Q8: What protection rating does the ATV320U11N4B have?
It has an IP20 protection rating, suitable for installation inside controlled enclosures.
