Technical Specifications
| Item | Specification |
|---|---|

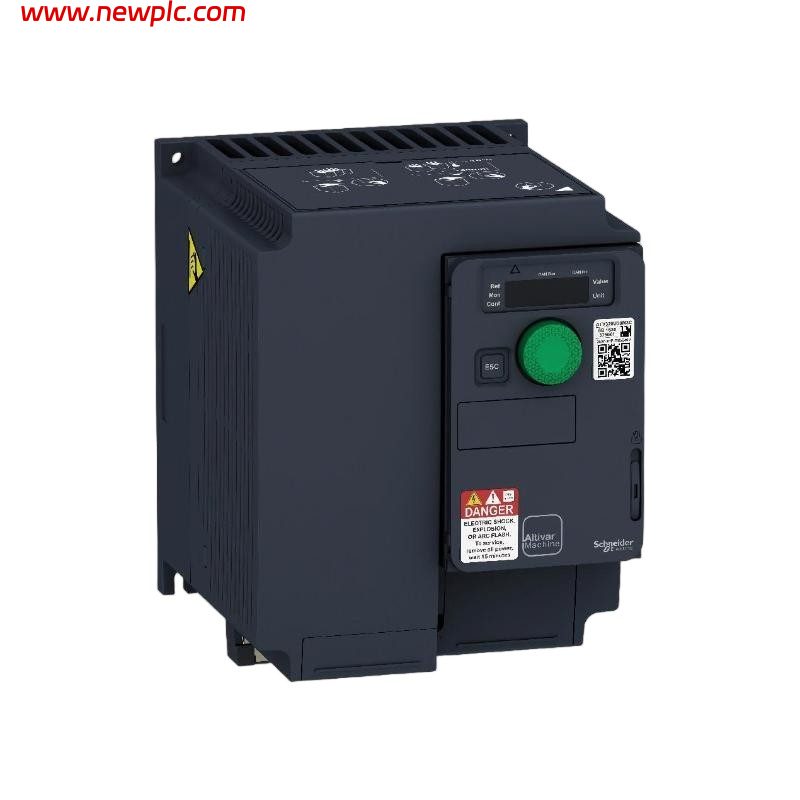

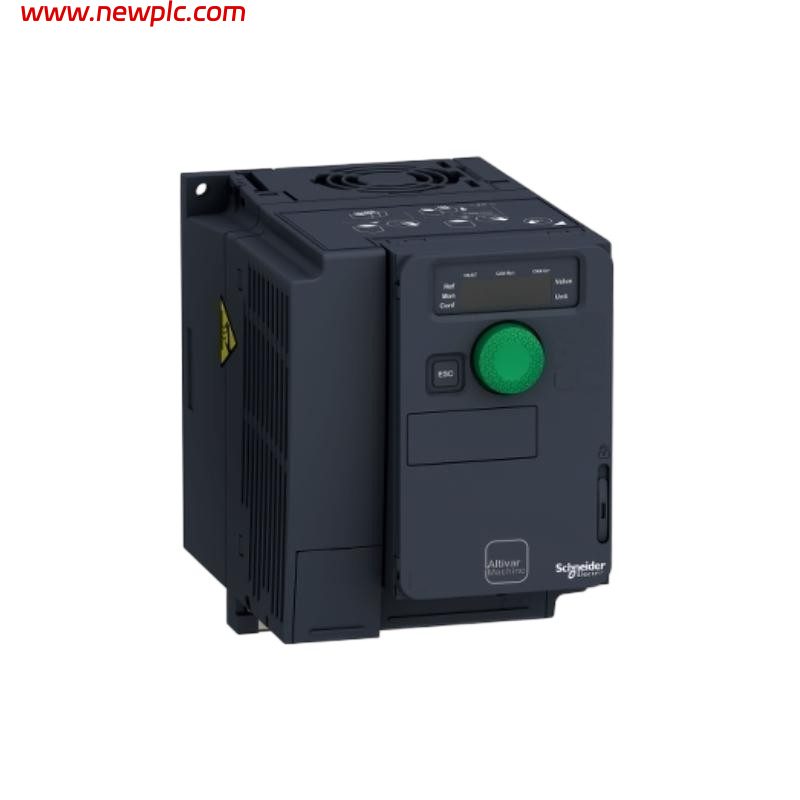

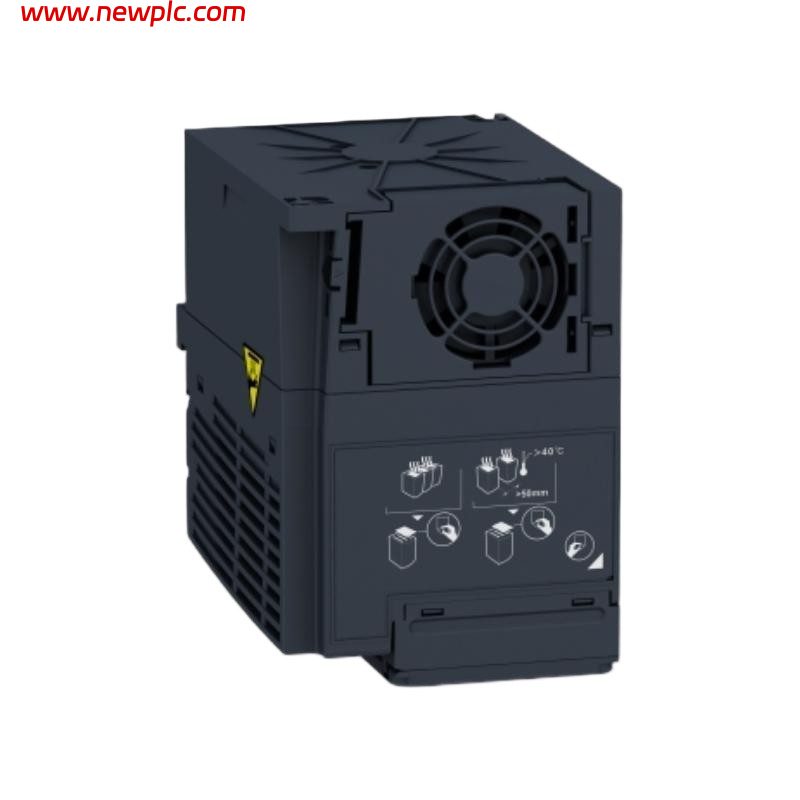

| Product Name | Schneider Electric ATV320U11M2C |
| Product Type | Variable Speed Drive (VFD) |
| Product Series | Altivar Machine ATV320 |
| Drive Type | Compact Variable Frequency Drive |
| Motor Compatibility | Asynchronous and Permanent Magnet Synchronous Motors |
| Supply Phase | Single-Phase |
| Supply Voltage | 200–240 V AC (-15% to +10%) |
| Supply Frequency | 50 / 60 Hz ±5% |
| Rated Motor Power (Normal Duty) | 1.1 kW (1.5 HP) |
| Rated Output Current | 6.9 A |
| Maximum Transient Current | 10.4 A for 60 Seconds |
| Output Frequency Range | 0.1–599 Hz |
| Control Method | Sensorless Flux Vector Control (SFVC), V/F Control |
| Switching Frequency | 2–16 kHz Adjustable |
| EMC Filter | Integrated Class C2 EMC Filter |
| Communication Protocols | Modbus RTU, CANopen |
| Communication Port | RJ45 Serial Port |
| Digital Inputs | 7 |
| Digital Outputs | 3 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Safety Functions | Safe Torque Off (STO), SIL 3 / PL e |
| Braking Function | Dynamic Braking via Optional Braking Resistor |
| Cooling Method | Fanless Design |
| Protection Rating | IP20 |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Altitude | Up to 1000 m Without Derating |
| Certifications | CE, UL, CSA, EAC, UKCA |
| Country of Origin | Indonesia |
| Dimensions (W × H × D) | 72 × 143 × 138 mm |
| Weight | 1.4 kg |
FAQ
FAQ
Q1: What is the ATV320U11M2C used for?
The ATV320U11M2C is a variable frequency drive designed for controlling the speed and torque of AC motors in machine automation applications such as conveyors, packaging systems, pumps, and material handling equipment.
Q2: What motor size can the ATV320U11M2C control?
The drive is rated for 1.1 kW (1.5 HP) motors when supplied with 200–240 V single-phase power.
Q3: Which motor control methods are available?
The drive supports Sensorless Flux Vector Control (SFVC) for enhanced dynamic performance and V/F control for standard applications.
Q4: Does the ATV320U11M2C support industrial communication protocols?
Yes. It includes Modbus RTU and CANopen communication interfaces as standard.
Q5: What safety features are integrated into the drive?
The drive includes Safe Torque Off (STO) functionality certified to SIL 3 and Performance Level e (PL e) standards.
Q6: What are the dimensions and weight of the ATV320U11M2C?
The drive measures 72 × 143 × 138 mm and weighs approximately 1.4 kg.
Q7: Is an external braking resistor supported?
Yes. The ATV320U11M2C supports dynamic braking through an optional external braking resistor for applications requiring rapid stopping.
Q8: What applications is the ATV320U11M2C commonly used in?
It is commonly deployed in packaging machines, conveyors, food and beverage equipment, textile machinery, pumps, fans, and general industrial automation systems.
