Technical Specifications
| Item | Specification |
|---|---|

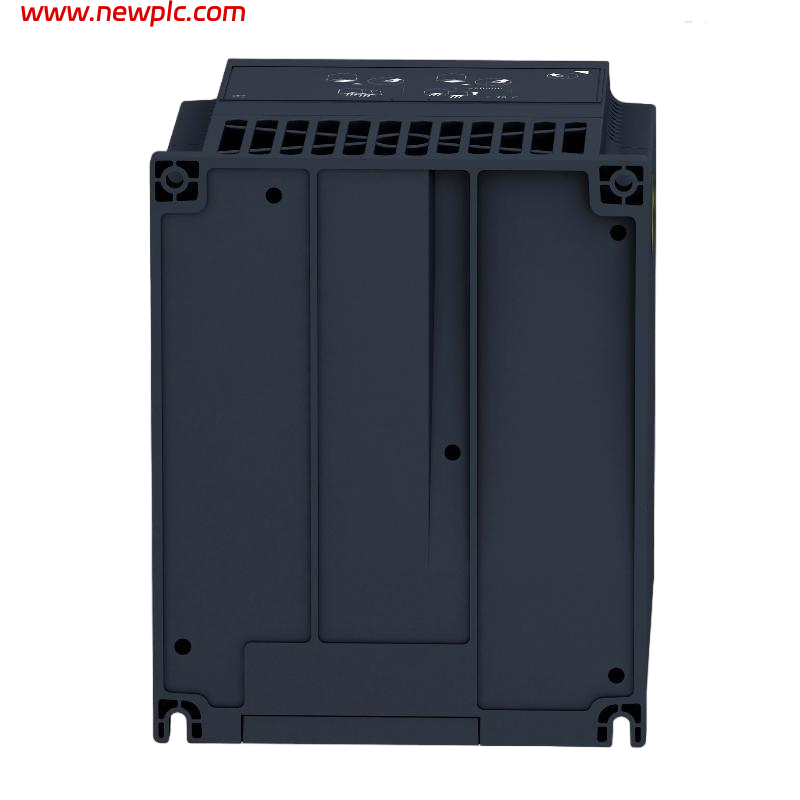

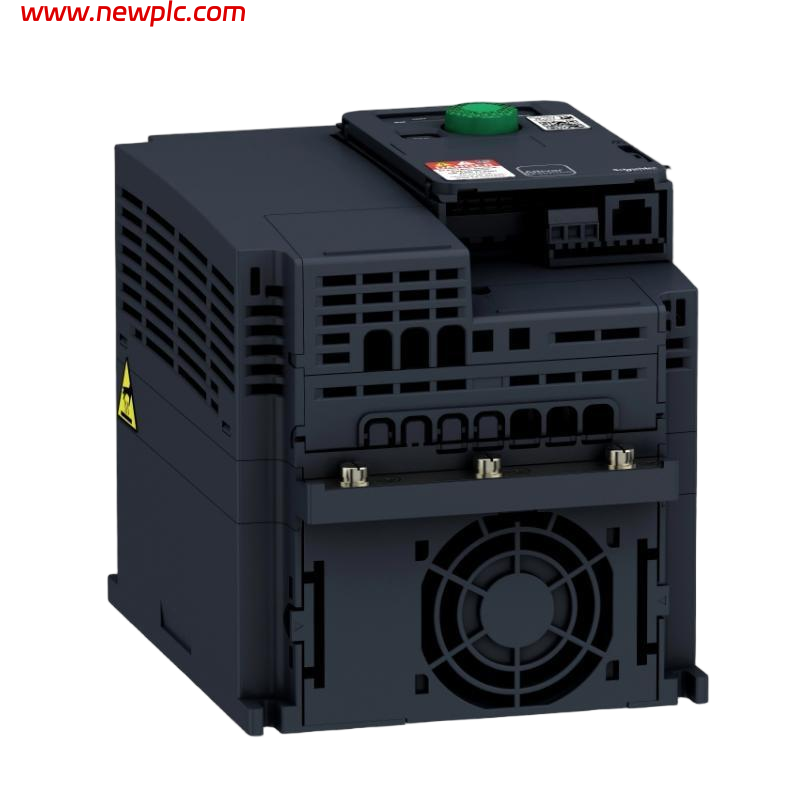

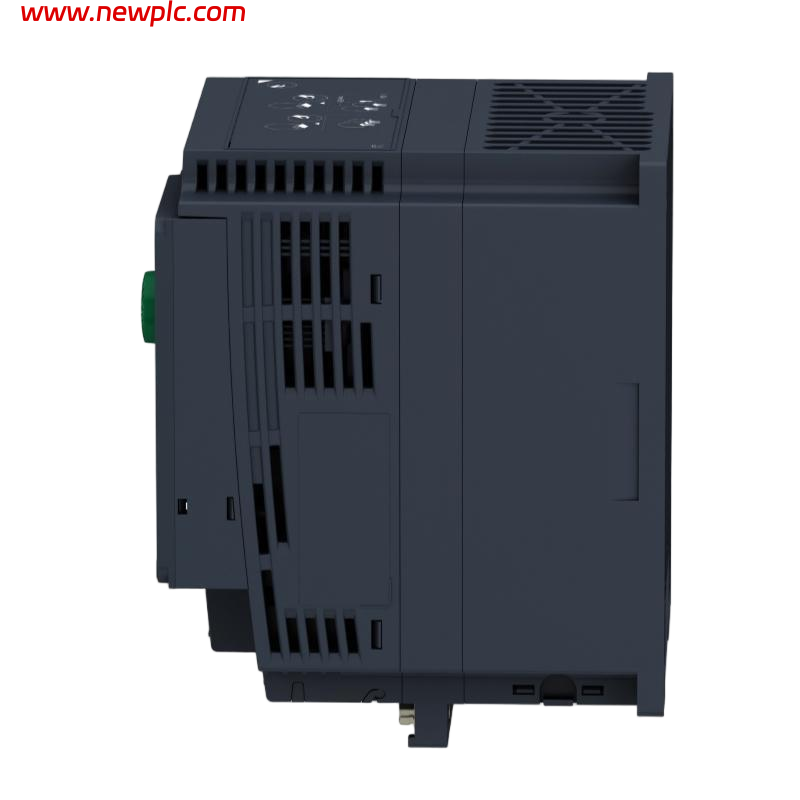

| Product Name | Schneider Electric ATV320U22M2C |
| Product Type | Variable Speed Drive (VFD) |
| Product Series | Altivar Machine ATV320 |
| Drive Type | Compact Variable Frequency Drive |
| Motor Compatibility | Asynchronous and Permanent Magnet Synchronous Motors |
| Supply Phase | Single-Phase |
| Supply Voltage | 200–240 V AC (-15% to +10%) |
| Supply Frequency | 50 / 60 Hz ±5% |
| Rated Motor Power (Normal Duty) | 2.2 kW (3 HP) |
| Rated Output Current | 12 A |
| Maximum Transient Current | 18 A for 60 Seconds |
| Output Frequency Range | 0.1–599 Hz |
| Control Method | Sensorless Flux Vector Control (SFVC), V/F Control |
| Switching Frequency | 2–16 kHz Adjustable |
| EMC Filter | Integrated Class C2 EMC Filter |
| Communication Protocols | Modbus RTU, CANopen |
| Communication Port | RJ45 Serial Port |
| Digital Inputs | 7 |
| Digital Outputs | 3 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Safety Functions | Safe Torque Off (STO), SIL 3 / PL e |
| Braking Function | Dynamic Braking via Optional Braking Resistor |
| Cooling Method | Forced-Air Cooling |
| Protection Rating | IP20 |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Altitude | Up to 1000 m Without Derating |
| Certifications | CE, UL, CSA, EAC, UKCA |
| Country of Origin | Indonesia |
| Dimensions (W × H × D) | 105 × 143 × 151 mm |
| Weight | 2.1 kg |
FAQ
FAQ
Q1: What is the ATV320U22M2C used for?
The ATV320U22M2C is a compact variable frequency drive designed to control the speed and torque of AC motors in industrial automation and OEM machine applications.
Q2: What motor size can this drive control?
The drive is rated for 2.2 kW (3 HP) motors when supplied with 200–240 V single-phase power.
Q3: Which motor control technologies are supported?
It supports Sensorless Flux Vector Control (SFVC) for enhanced motor performance and standard V/F control for general-purpose applications.
Q4: Does the ATV320U22M2C support industrial communications?
Yes. Modbus RTU and CANopen communication protocols are integrated as standard, enabling easy connection to PLCs and automation networks.
Q5: What safety functions are available?
The drive includes Safe Torque Off (STO) certified to SIL 3 and Performance Level e (PL e), helping meet modern machine safety requirements.
Q6: What are the dimensions and weight of the ATV320U22M2C?
The drive measures 105 × 143 × 151 mm and weighs approximately 2.1 kg.
Q7: Can a braking resistor be connected to this drive?
Yes. The ATV320U22M2C supports dynamic braking through an optional external braking resistor for applications requiring faster deceleration.
Q8: What applications is the ATV320U22M2C commonly used for?
It is widely used in conveyors, packaging machinery, textile equipment, pumps, fans, material handling systems, and other industrial machine automation applications.
