Technical Specifications
| Parameter | Description |
|---|---|

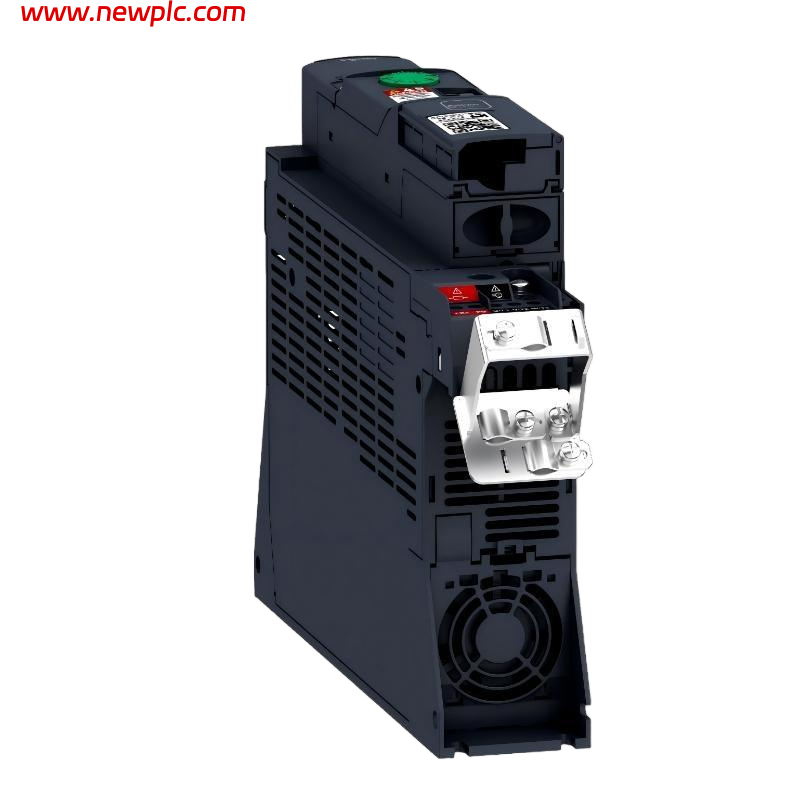

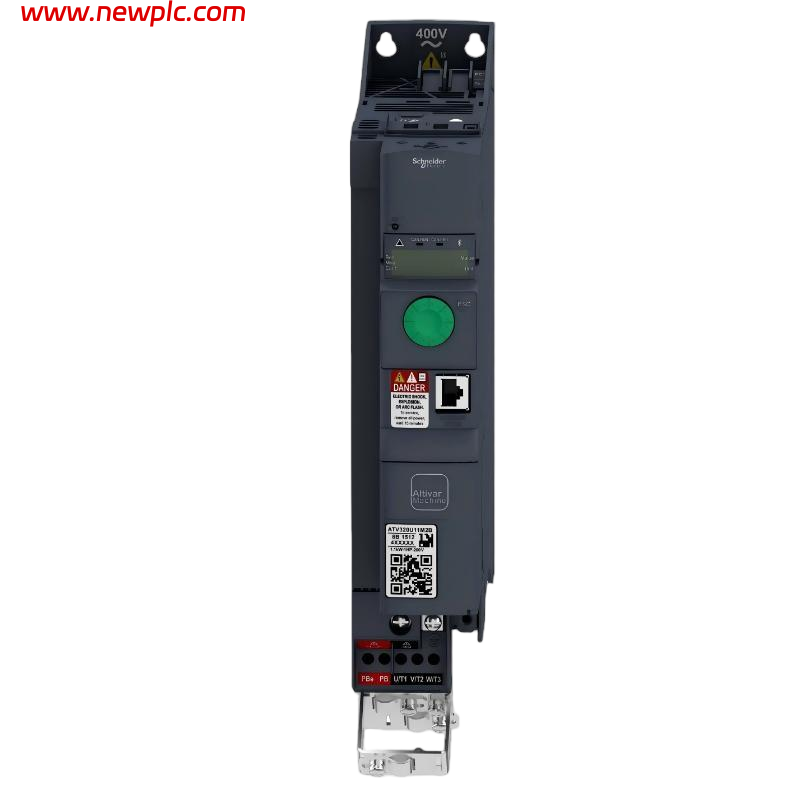

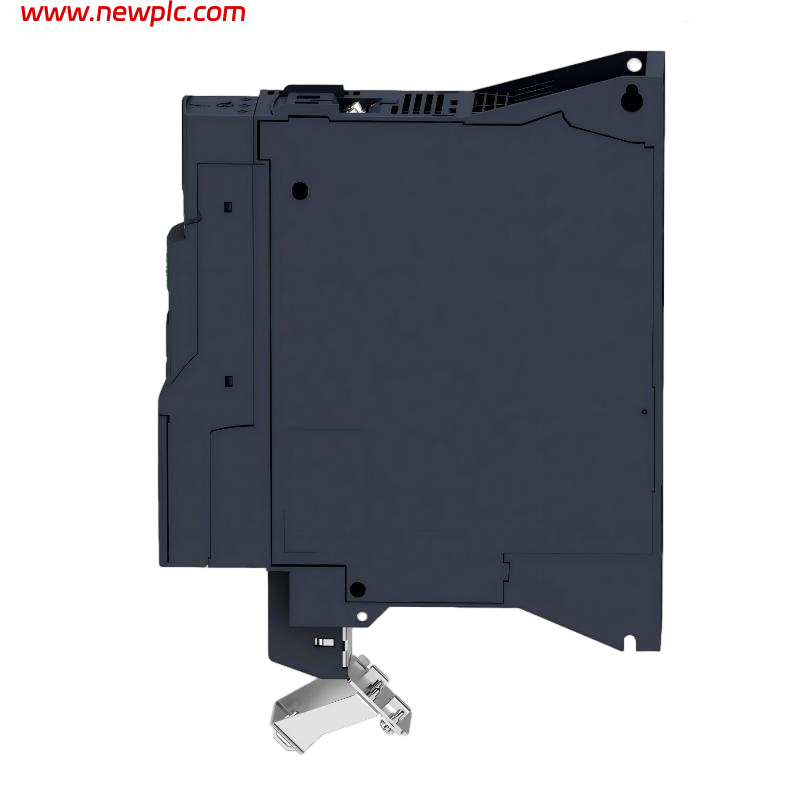

| Product | Schneider Electric ATV320U22N4B |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U22N4B |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 2.2 kW (3 HP) |
| Supply Voltage | 3-phase, 380–500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | ~5.5 A |
| Control Methods | V/F control, Sensorless vector control |
| Output Frequency Range | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz adjustable (nominal ~4 kHz) |
| Communication Interfaces | Modbus RTU, CANopen |
| Safety Functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Integrated EMC Filter | Class C2 integrated |
| Protection Functions | Overcurrent, Overvoltage, Undervoltage, Thermal, Short-circuit |
| Protection Rating | IP20 |
| Cooling Method | Internal fan |
| Mounting | Cabinet / vertical panel mount |
| Dimensions (H × W × D) | 325 × 60 × 245 mm |
| Weight | 3.0 kg |
| Operating Temperature | −10 °C to +50 °C (no derating) |
| Storage Temperature | −25 °C to +70 °C |
FAQ
FAQ
Q1: What motor power is the ATV320U22N4B designed for?
It is designed for 2.2 kW (3 HP) three-phase motor applications.
Q2: What supply voltage and frequency range does this drive require?
This drive operates on a three-phase 380–500 V AC supply at 50/60 Hz.
Q3: What control methods does the ATV320U22N4B support?
It supports V/F control and sensorless vector control for flexible speed and torque management.
Q4: What is the output frequency range of this model?
The output frequency can be adjusted from about 0.1 Hz up to 599 Hz.
Q5: Does the drive include communication interfaces?
Yes, it supports Modbus RTU and CANopen communication interfaces.
Q6: What safety functions are built into the drive?
It includes safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1).
Q7: What are the physical dimensions and weight of this drive?
Its dimensions are approximately 325 × 60 × 245 mm, and it weighs about 3.0 kg.
Q8: What protection rating does the ATV320U22N4B have?
It has an IP20 protection rating suitable for indoor panel mount installations.
