Technical Specifications
| Parameter | Description |
|---|---|

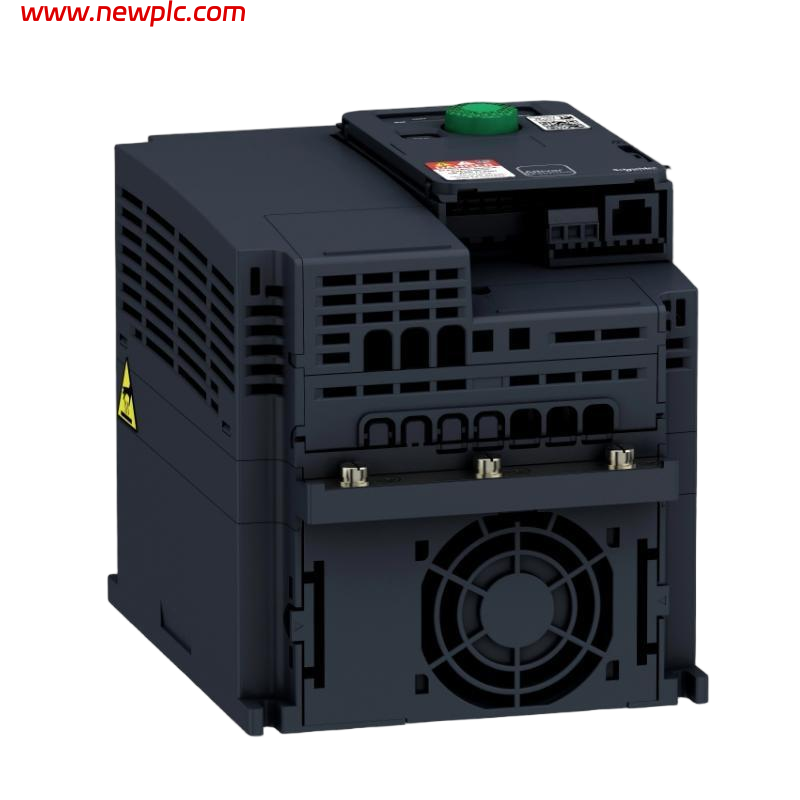

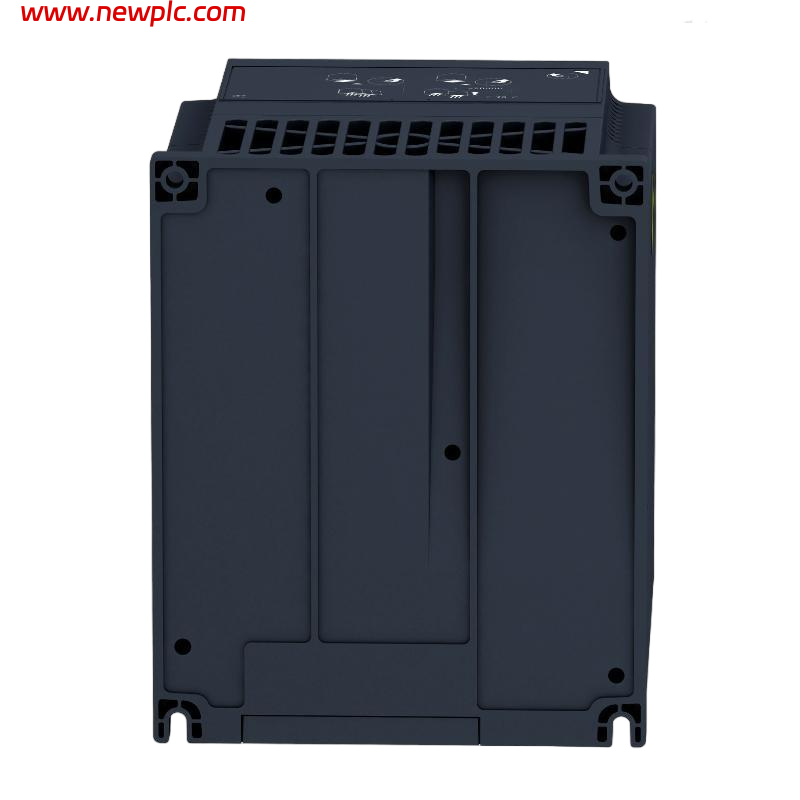

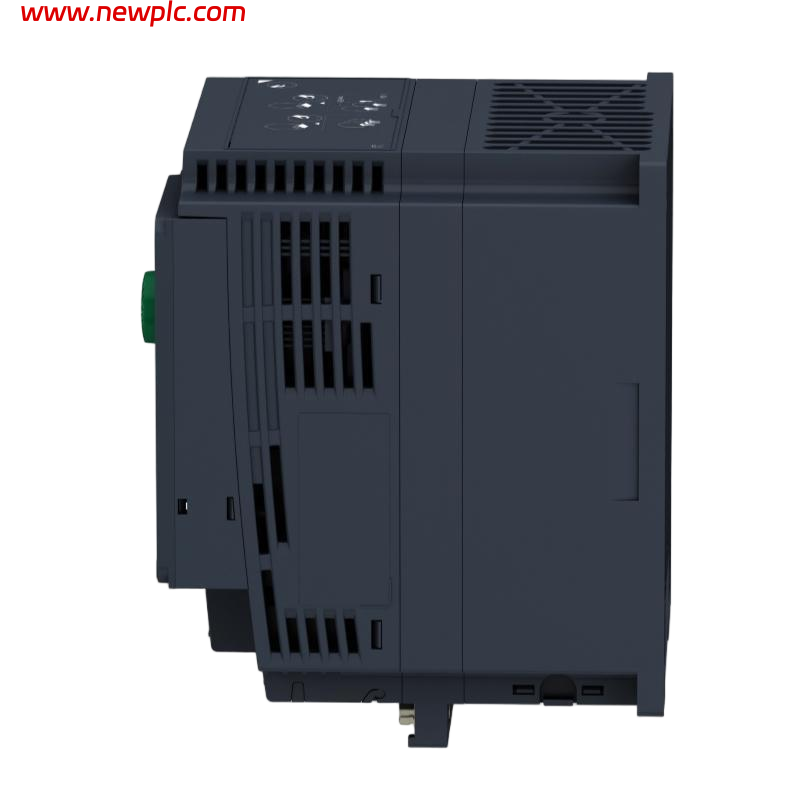

| Product | Schneider Electric ATV320U22N4C |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U22N4C |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 2.2 kW (3 HP) heavy duty |
| Supply Voltage | 3-phase, 380–500 V AC (-15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | 5.5 A (nominal) |
| Line Current | 8.7 A @ 380 V / 6.6 A @ 500 V |
| Output Frequency Range | 0.1–599 Hz |
| Control Method | V/f control, Sensorless Vector Control |
| EMC Filter | Integrated Class C2 EMC filter |
| Communication Interfaces | Modbus serial, CANopen (RJ45) |
| Safety Functions | Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), Safe Maximum Speed (SMS), Guard Door Locking (GDL) |
| Protection Rating | IP20 (IEC 61800-5-1 / IEC 60529) |
| Cooling Method | Fan cooling |
| Mounting | Vertical panel / wall mount (+/- 10°) |
| Discrete Inputs | 7 programmable inputs (incl. STO) |
| Switching Frequency | 2–16 kHz adjustable (nominal 4 kHz) |
| Braking | DC injection & brake chopper integrated |
| Dimensions (H × W × D) | 184 × 140 × 158 mm |
| Weight | 2.1 kg |
| Operating Temperature | −10 °C to +50 °C (without derating) |
| Storage Temperature | −25 °C to +70 °C |
FAQ
FAQ
Q1: What motor power is the ATV320U22N4C designed for?
It is designed for 2.2 kW (3 HP) heavy-duty three-phase motor applications.
Q2: What supply voltage and frequency does this drive require?
This drive operates on a three-phase 380–500 V AC supply at 50/60 Hz.
Q3: What output current can the ATV320U22N4C provide?
The nominal output current is about 5.5 A, with line current up to ~8.7 A at 380 V.
Q4: What frequency range can this drive output?
The output frequency range is from 0.1 Hz up to 599 Hz.
Q5: What control methods does the ATV320U22N4C support?
It supports V/f control and sensorless vector control for flexible speed and torque management.
Q6: What communication options are available?
It includes built-in Modbus serial and CANopen communication interfaces; optional cards add EtherNet/IP, Profibus, etc.
Q7: What safety functions are integrated?
Safety features include Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), and other configurable safety profiles.
Q8: What are the physical dimensions and weight of this drive?
The unit measures approximately 184 × 140 × 158 mm and weighs about 2.1 kg.
