Technical Specifications
| Parameter | Description |
|---|---|

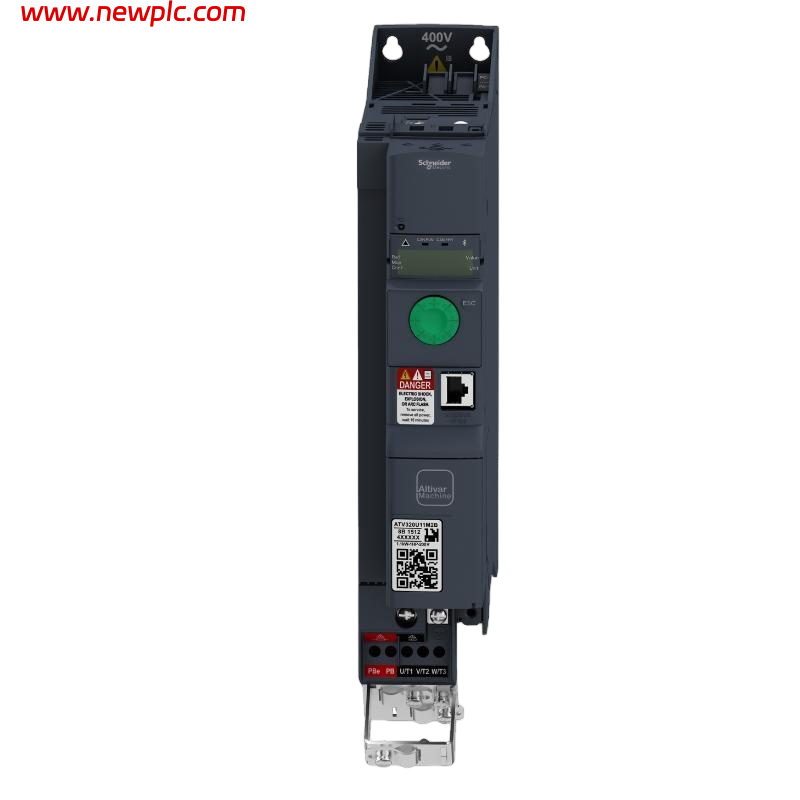

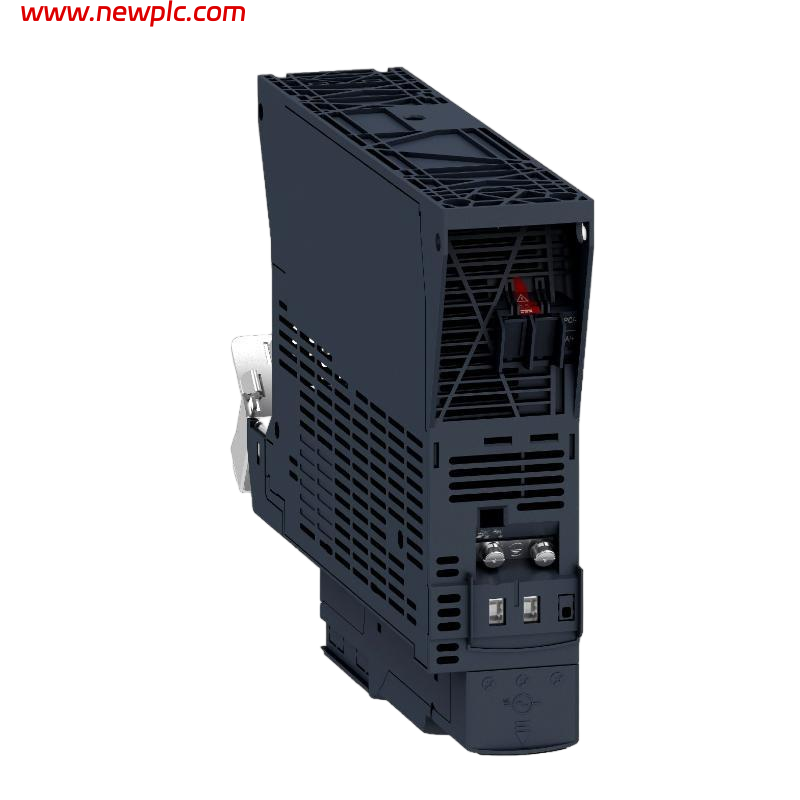

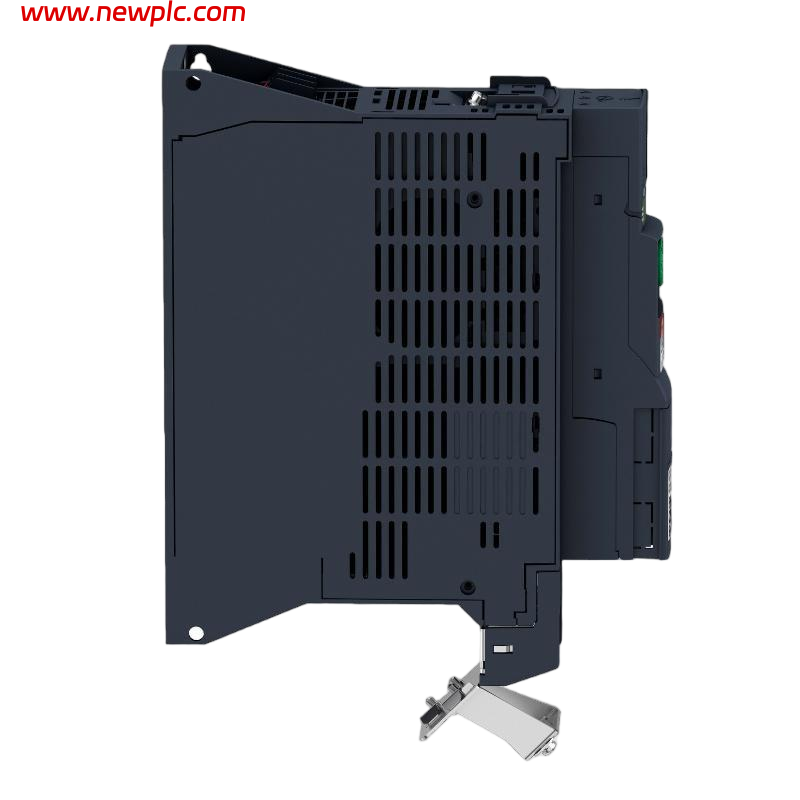

| Product | Schneider Electric ATV320U30N4C |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U30N4C |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 3.0 kW (4 HP) |
| Supply Voltage | 3-phase, 380–500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | 7.1 A |
| Output Frequency Range | 0.1–599 Hz |
| Control Methods | V/f control, Sensorless Vector Control |
| Integrated EMC Filter | Class C2 |
| Communication Interfaces | Modbus RTU, CANopen |
| Safety Functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Protection Rating | IP20 |
| Braking | DC injection and integrated brake chopper |
| Mounting | Vertical panel / wall mount (+/- 10°) |
| Switching Frequency | 2–16 kHz adjustable (nominal 4 kHz) |
| Dimensions (H × W × D) | 325 × 60 × 245 mm |
| Weight | 3.0 kg |
| Operating Temperature | −10 °C to +50 °C (without derating) |
| Storage Temperature | −25 °C to +70 °C |
FAQ
FAQ
Q1: What motor power is the ATV320U30N4C designed for?
It is designed for 3.0 kW (4 HP) three-phase motor applications.
Q2: What supply voltage and frequency does this drive require?
This drive operates on a three-phase 380–500 V AC supply at 50 / 60 Hz.
Q3: What output current can the ATV320U30N4C provide?
The rated output current is about 7.1 A.
Q4: What is the output frequency range of this model?
The output frequency range can be adjusted from 0.1 Hz up to 599 Hz.
Q5: What control methods does the ATV320U30N4C support?
It supports V/f control and sensorless vector control for flexible motor speed and torque management.
Q6: Does the drive include safety functions?
Yes, it includes safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1).
Q7: What are the physical dimensions and weight of this drive?
Its dimensions are 325 × 60 × 245 mm and it weighs about 3.0 kg.
Q8: What protection rating does the ATV320U30N4C have?
It has an IP20 protection rating, suitable for installation inside industrial enclosures.
