Technical Specifications
| Parameter | Description |
|---|---|

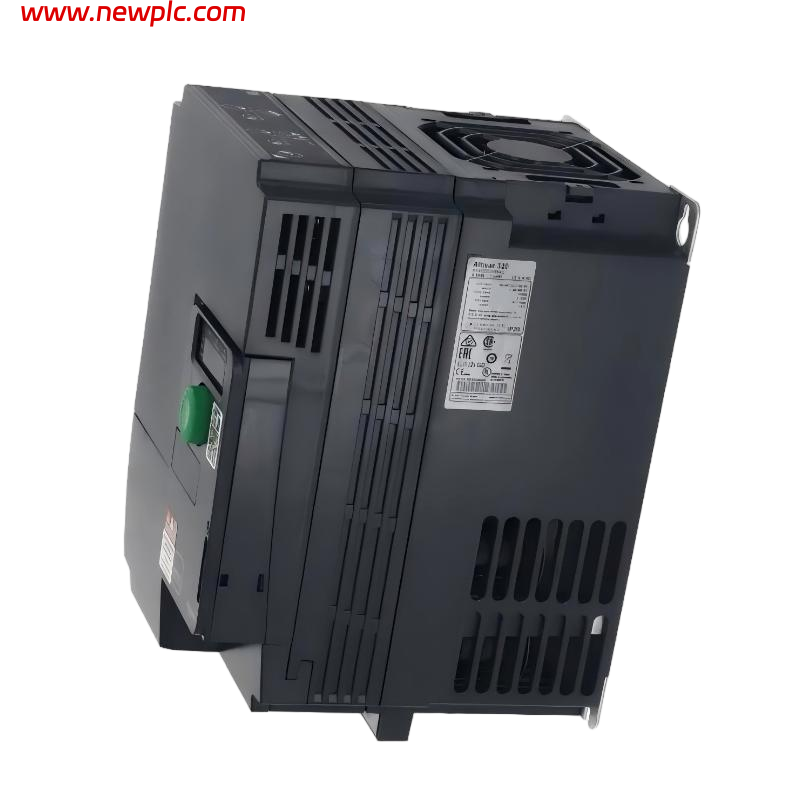

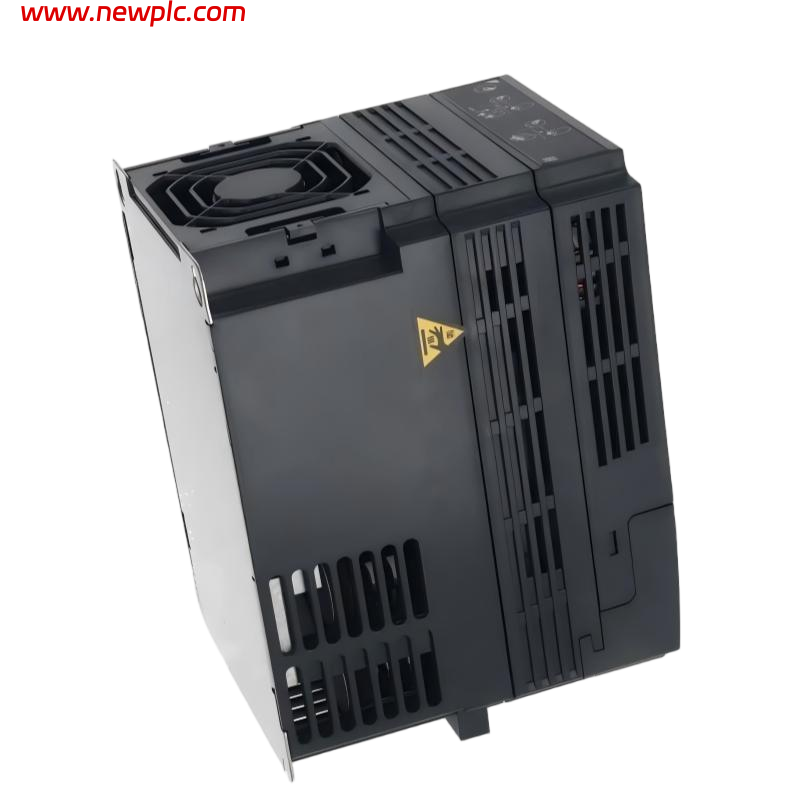

| Product | Schneider Electric ATV320U55N4C |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U55N4C |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 5.5 kW (7.5 HP) heavy duty |
| Supply Voltage | 3-phase, 380…500 V AC (-15 %/+10 %) |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | 14.3 A |
| Line Current | 20.7 A (380 V), 14.5 A (500 V) |
| Output Frequency Range | 0.1 – 599 Hz |
| Control Methods | Sensorless vector control, V/f control |
| Integrated EMC Filter | Class C2 |
| Communication Interfaces | Modbus serial, CANopen; optional EtherNet/IP, Profibus, Profinet via modules |
| Safety Functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal, short-circuit |
| Protection Rating | IP20 (IEC 61800-5-1 / IEC 60529) |
| Braking | DC injection; brake chopper integrated |
| Switching Frequency | 2…16 kHz adjustable (nominal 4 kHz) |
| Mounting | Vertical panel / wall mount (+/-10°) |
| Dimensions (H × W × D) | 232 × 150 × 172 mm |
| Weight | 2.2 kg |
| Operating Temperature | −10 °C to +50 °C |
| Storage Temperature | −25 °C to +70 °C |
FAQ
FAQ
Q1: What motor power is the ATV320U55N4C designed for?
It is designed for heavy-duty three-phase motors with a rating of 5.5 kW (7.5 HP).
Q2: What supply voltage and frequency range does this drive require?
The drive operates on a three-phase 380–500 V AC supply at 50/60 Hz.
Q3: What output current can the ATV320U55N4C provide?
The nominal output current is 14.3 A, with line current up to about 20.7 A at 380 V.
Q4: What control methods are supported by this model?
It supports sensorless vector control and conventional voltage/frequency (V/f) control.
Q5: What communication options are available?
The drive includes Modbus serial and CANopen communication interfaces, with additional protocol modules available.
Q6: Does the ATV320U55N4C include safety functions?
Yes, it includes safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1).
Q7: What protection features are built into this drive?
It offers protections including overcurrent, overvoltage, undervoltage, thermal, and short-circuit protections.
Q8: What are the physical dimensions and weight of the ATV320U55N4C?
Its dimensions are approximately 232 × 150 × 172 mm and it weighs about 2.2 kg.
