Technical Specifications
| Parameter | Description |
|---|---|

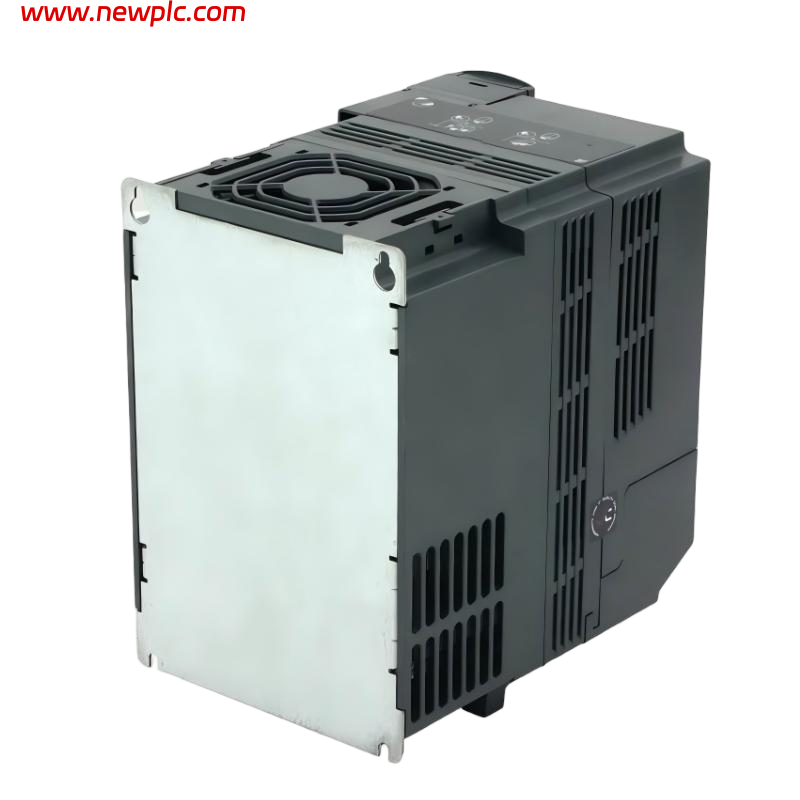

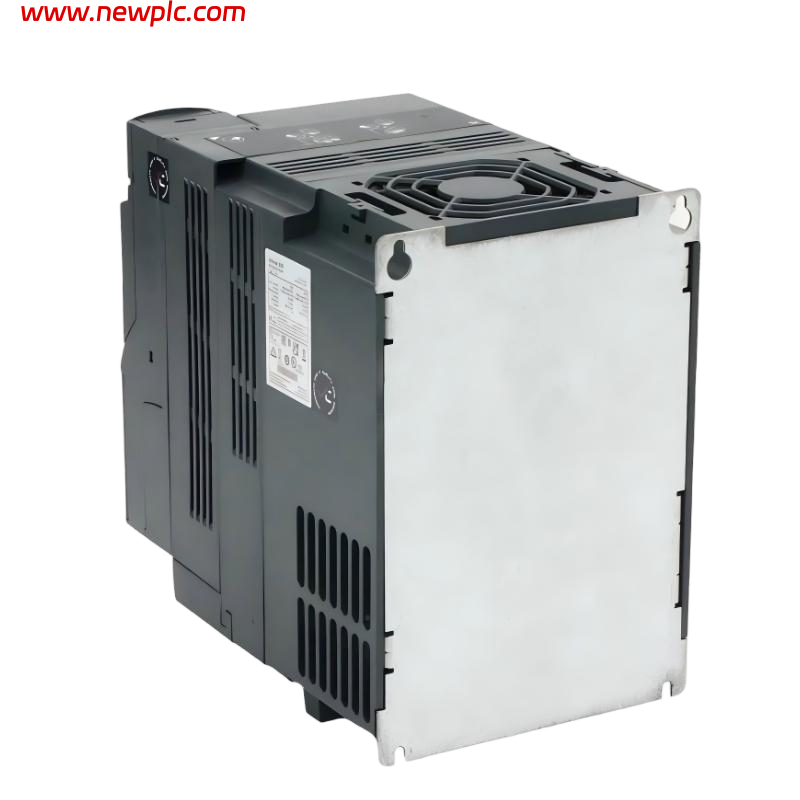

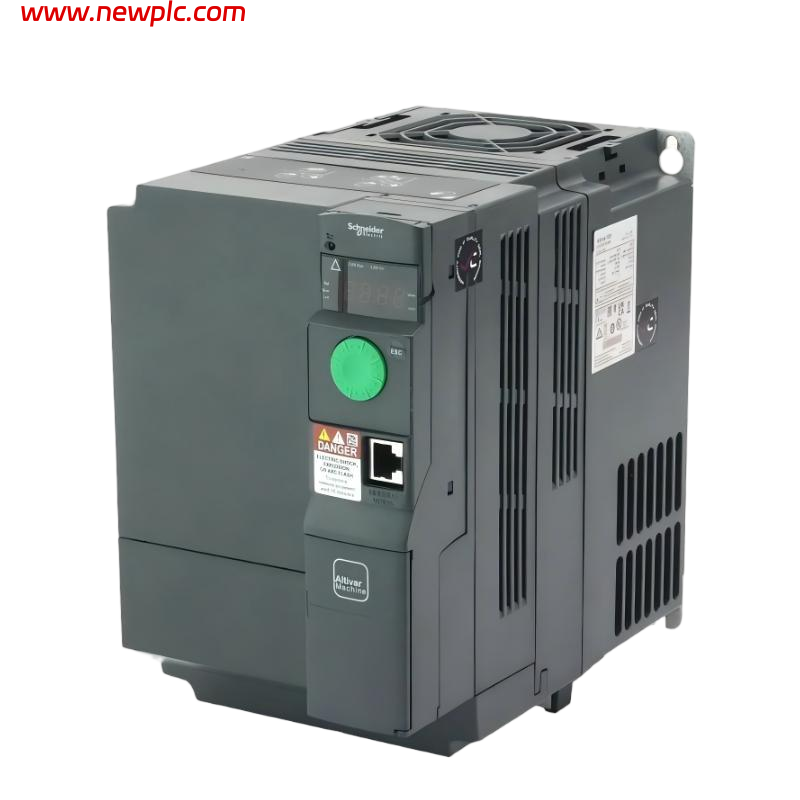

| Product | Schneider Electric ATV320U75N4B |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U75N4B |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 7.5 kW (10 HP) heavy duty |
| Supply Voltage | 3-phase, 380…500 V AC |
| Supply Frequency | 50 / 60 Hz |
| Output Current (Continuous) | 17 A |
| Line Current (Heavy Duty) | 26.5 A @ 380 V; 18.7 A @ 500 V |
| Output Frequency Range | 0.1 – 599 Hz |
| Control Methods | V/f control; Sensorless Vector Control |
| EMC Filter | Integrated Class C2 |
| Safety Functions | Safe Torque Off (STO); Safe Stop 1 (SS1) |
| Communication Interfaces | Modbus RTU; CANopen; optional expansion modules (EtherNet/IP, Profibus, etc.) |
| Protection Rating | IP20 (IEC 61800-5-1) |
| Cooling Method | Internal fan cooling |
| Braking | DC injection; integrated brake chopper |
| Mounting | Vertical panel / wall mount (+/- 10°) |
| Operating Temperature | −10 °C to +50 °C (no derating) |
| Storage Temperature | −25 °C to +70 °C |
| Dimensions (H × W × D) | 308 × 150 × 232 mm |
| Weight | 4.4 kg |
FAQ
FAQ
Q1: What motor power is the ATV320U75N4B designed for?
It is designed for heavy-duty three-phase motors with a rating of 7.5 kW (10 HP).
Q2: What supply voltage and frequency range does this drive require?
This drive operates on a three-phase 380 – 500 V AC supply at 50/60 Hz.
Q3: What is the continuous output current of the ATV320U75N4B?
The nominal continuous output current is about 17 A.
Q4: What control methods does this model support?
It supports V/f control and sensorless vector control to manage speed and torque.
Q5: What safety functions are built into this drive?
It includes Safe Torque Off (STO) and Safe Stop 1 (SS1) safety functions.
Q6: Does the ATV320U75N4B include an EMC filter?
Yes, it has an integrated Class C2 EMC filter.
Q7: What protection rating and cooling does this drive have?
It has an IP20 protection rating and uses internal fan cooling.
Q8: What are the physical dimensions and weight of this drive?
Its dimensions are approximately 308 × 150 × 232 mm and it weighs about 4.4 kg.
