Technical Specifications
| Parameter | Description |
|---|---|

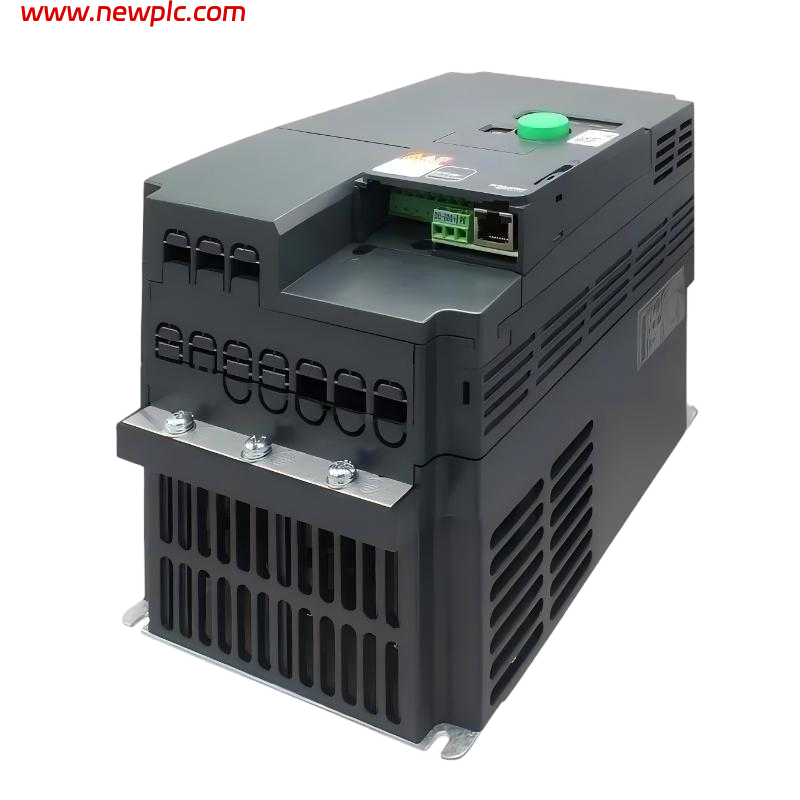

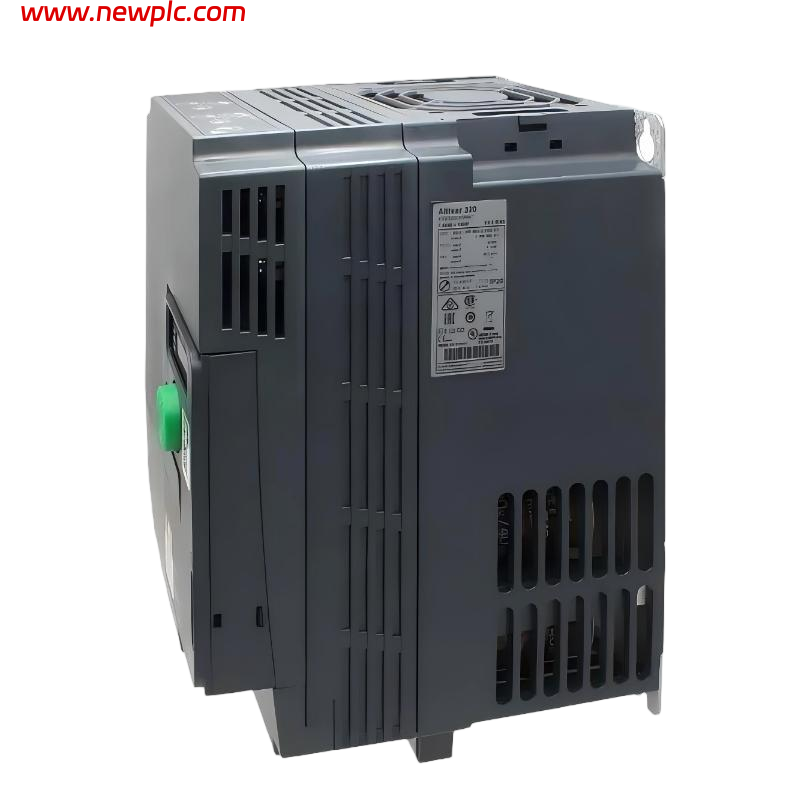

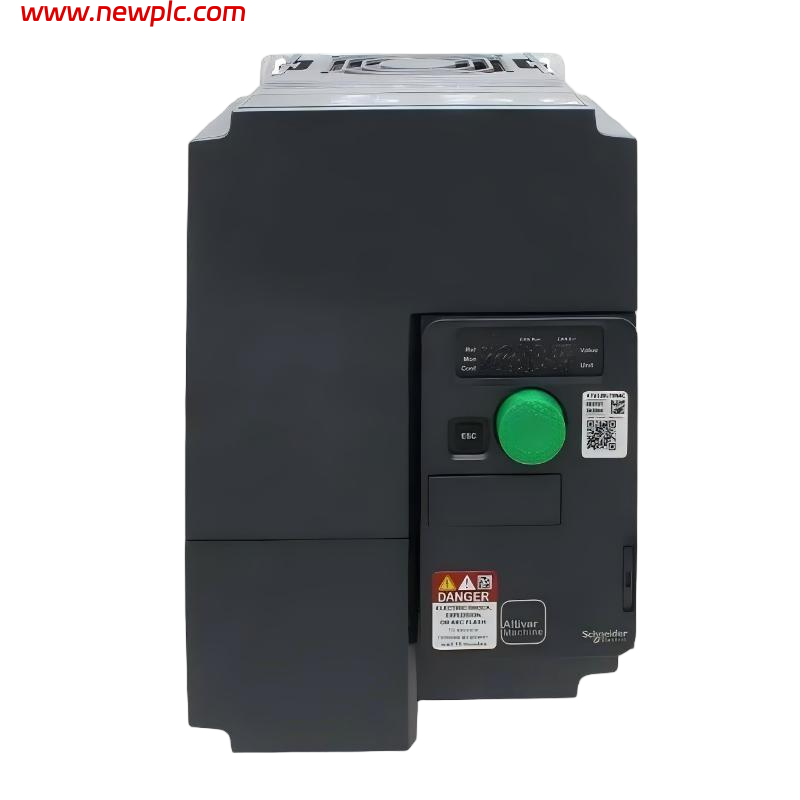

| Product | Schneider Electric ATV320U75N4C |
| Series | Altivar Machine ATV320 |
| Model Number | ATV320U75N4C |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 7.5 kW (10 HP) heavy duty |
| Supply Voltage | 3-phase, 380…500 V AC (-15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | 17 A |
| Line Current | ~25.5 A @ 380 V (heavy duty) / ~19.6 A @ 500 V (heavy duty) |
| Output Frequency Range | 0.1 – 599 Hz |
| Control Methods | V/f control, Sensorless Flux Vector Control |
| Integrated EMC Filter | Class C2 (EMC filter) |
| Communication Interfaces | Modbus RTU, CANopen; optional expansion modules |
| Safety Functions | Safe Torque Off (STO) (standard) |
| Protection Functions | Overcurrent, Overvoltage, Undervoltage, Thermal, Short-circuit protections |
| Protection Rating | IP20 conforming to IEC 61800-5-1 / IEC 60529 |
| Cooling Method | Internal fan cooling |
| Compatible Motor Types | Synchronous / Asynchronous motors |
| Mounting | Vertical panel / wall mount (compact book format) |
| Dimensions (W × H × D) | 150 × 232 × 172 mm |
| Weight | 2.2 kg |
| Operating Temperature | −10 °C to +50 °C (without derating) |
| Storage Temperature | −25 °C to +70 °C (general series) |
FAQ
FAQ
Q1: What motor power is the ATV320U75N4C designed for?
It is designed for heavy-duty three-phase motor applications rated at 7.5 kW (10 HP).
Q2: What supply voltage and frequency range does this drive require?
The ATV320U75N4C operates on a three-phase 380…500 V AC supply at 50 / 60 Hz.
Q3: How much output current does this drive provide?
The nominal output current is about 17 A, with higher line current under heavy-duty conditions.
Q4: What frequency range can this drive output?
It can output frequencies from approximately 0.1 Hz up to 599 Hz.
Q5: What control methods does the ATV320U75N4C support?
It supports traditional V/f control and advanced sensorless flux vector control.
Q6: Does this model include safety functions?
Yes — it includes Safe Torque Off (STO) as a standard safety function.
Q7: What are the physical dimensions and weight of the drive?
The drive measures approximately 150 × 232 × 172 mm and weighs about 2.2 kg.
Q8: What protection rating does the ATV320U75N4C have?
It has an IP20 protection rating and built-in protections against overcurrent, overvoltage, undervoltage, and thermal faults.
