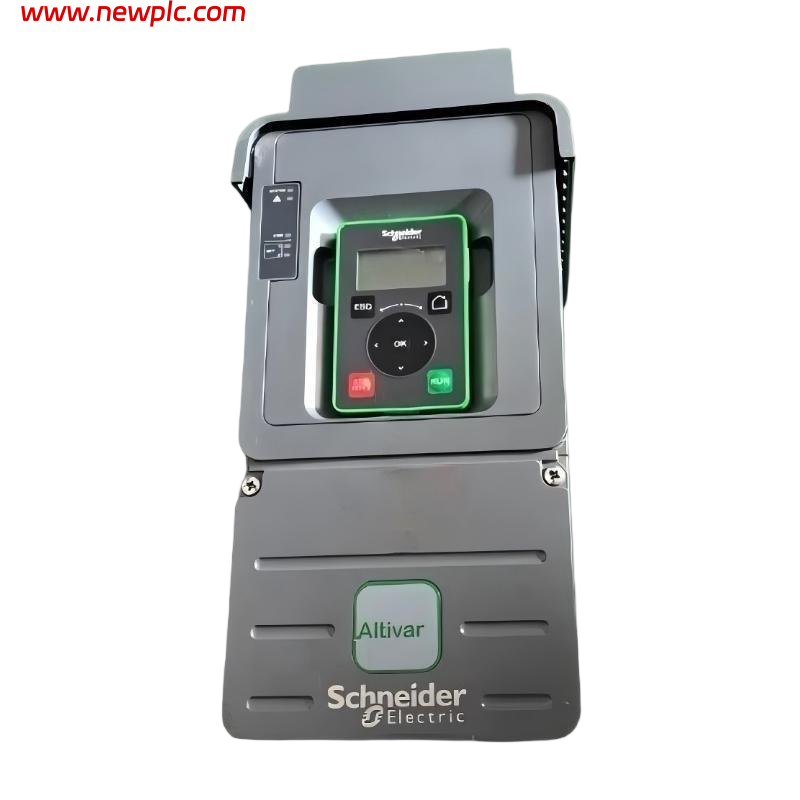

Technical Specifications

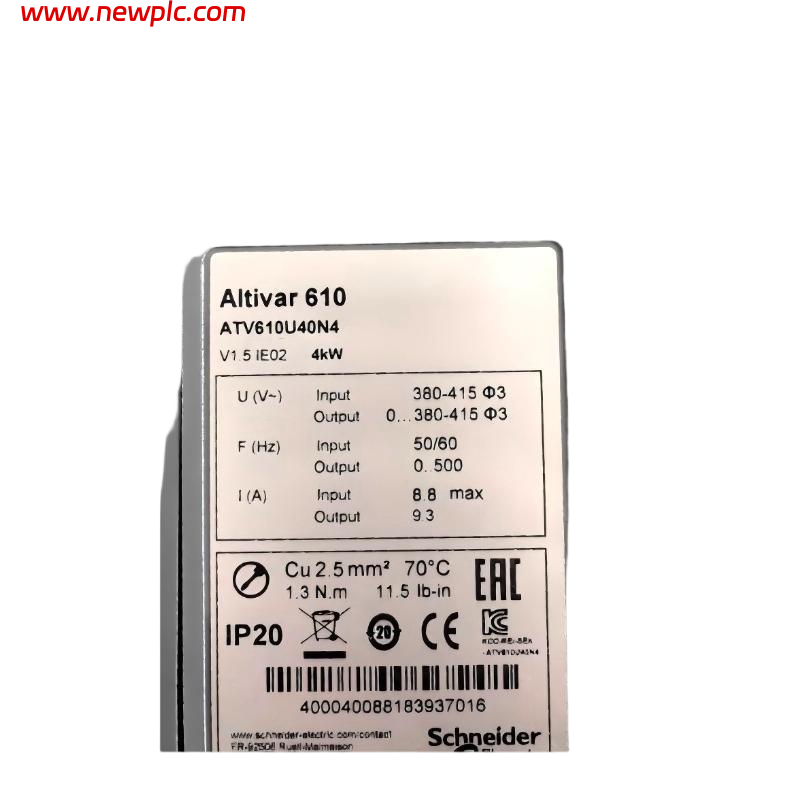

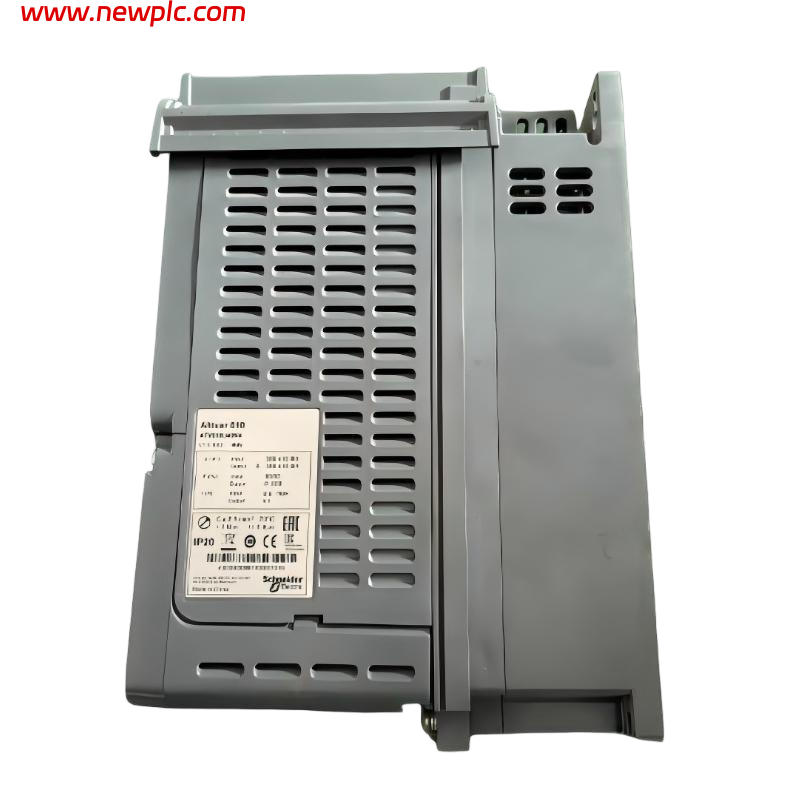

| Parameter | Specification |
|---|---|
| Product Model | Schneider Electric ATV610U40N4 |
| Product Series | Easy Altivar 610 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 4 kW (Normal Duty) / 3 kW (Heavy Duty) |
| Rated Horsepower | 5 HP (Normal Duty) |
| Supply Voltage | 3-phase 380–460 V AC (-15%/+10%) |
| Supply Frequency | 50–60 Hz ±5% |
| Output Frequency Range | 0.1–500 Hz |
| Rated Output Current | ~8.8 A at 380 V (Normal Duty) / ~7.2 A at 380 V (Heavy Duty) |
| Maximum Transient Current (60 s) | ~10.2 A (Normal Duty) / ~10.8 A (Heavy Duty) |
| Motor Control Method | V/F Control, Sensorless Vector Control |
| Protection Rating | IP20 |
| Cooling Method | Forced Convection |
| Built-in EMC Filter | Yes (IEC/EN 61800-3 Category C3) |
| Analog Inputs | 3 configurable analog inputs |
| Analog Outputs | 2 configurable analog outputs |
| Digital Inputs | 6 configurable digital inputs |
| Communication Interface | RS-485 (Modbus RTU) |
| Dimensions (W × H × D) | 145 × 297 × 203 mm |
| Weight | Approx. 4.0 kg |
FAQ
FAQ
Q1: What is the rated output power of the ATV610U40N4?
The drive provides a nominal power of 4 kW for normal duty and 3 kW for heavy duty applications.
Q2: What supply voltage range does this model require?
It operates on a three-phase AC supply between 380 V and 460 V.
Q3: What types of motors can the ATV610U40N4 control?
It is designed for three-phase asynchronous motors using V/F control or sensorless vector control.
Q4: What is the frequency control range of this VFD?
The output frequency range is from 0.1 Hz up to 500 Hz.
Q5: Does this drive include an EMC filter?
Yes, it has an integrated EMC filter that complies with IEC/EN 61800-3 Category C3 standards.
Q6: What communication options are supported?
The drive supports RS-485 communication with Modbus RTU protocol.
Q7: What is the protection rating and installation requirement?
The unit has an IP20 protection rating and is intended to be mounted inside a control cabinet.
Q8: What are the physical size and weight of the drive?
The drive measures approximately 145 × 297 × 203 mm and weighs about 4.0 kg.
