Technical Specifications
| Parameter | Specification |
|---|---|

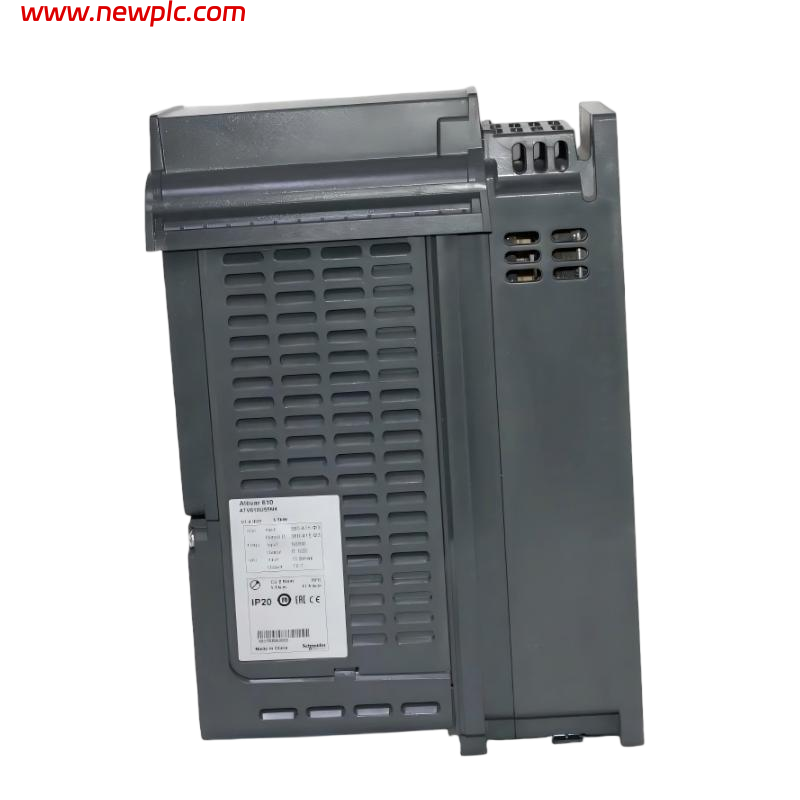

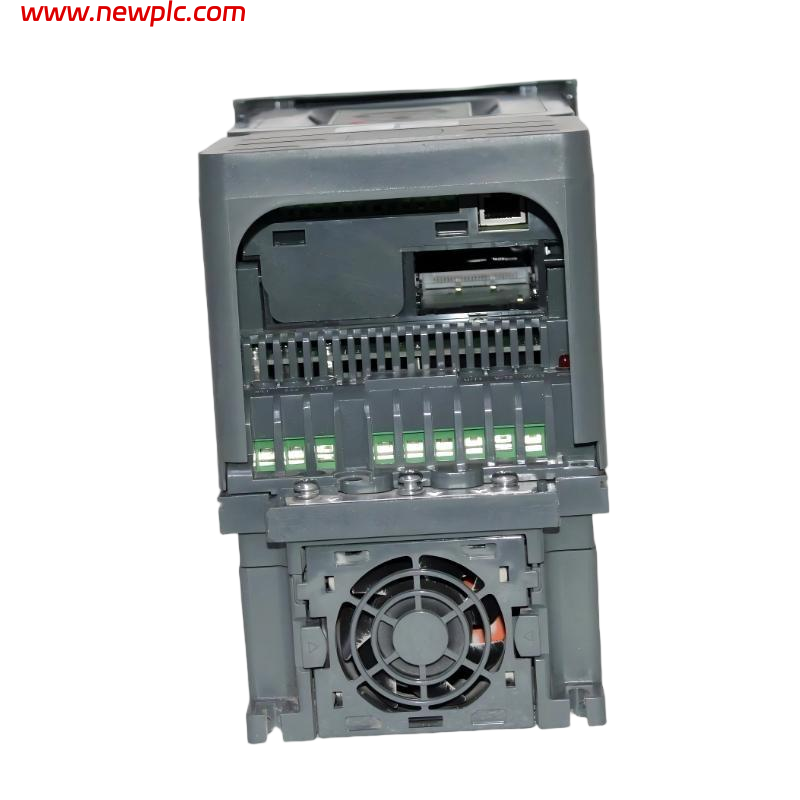

| Product Model | Schneider Electric ATV610U55N4 |
| Product Series | Easy Altivar 610 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 5.5 kW (Normal Duty) / 4 kW (Heavy Duty) |
| Rated Horsepower | 7.5 HP (Normal Duty) / 5 HP (Heavy Duty) |
| Supply Voltage | 3-phase 380–460 V AC (-15% to +10%) |
| Supply Frequency | 50/60 Hz ±5% |
| Output Frequency Range | 0.1–500 Hz |
| Rated Output Current | 12.7 A (Normal Duty) / 9.3 A (Heavy Duty) |
| Maximum Transient Current (60 s) | 14 A (Normal & Heavy Duty) |
| Motor Control Methods | V/F Control, Sensorless Vector Control |
| Protection Rating | IP20 |
| Cooling Method | Forced Air Cooling |
| Built-in EMC Filter | Yes, IEC/EN 61800-3 Category C3 |
| Analog Inputs | 3 configurable analog inputs |
| Analog Outputs | 2 configurable analog outputs |
| Digital Inputs | 6 configurable digital inputs |
| Communication Interface | RS-485 (Modbus RTU) |
| Switching Frequency | Adjustable 2–12 kHz |
| Preset Speeds | 16 preset speeds |
| Dimensions (W × H × D) | 145 × 297 × 203 mm |
| Weight | Approx. 4.575 kg |
FAQ
FAQ
Q1: What is the rated power of the ATV610U55N4?
The drive is rated at 5.5 kW (7.5 HP) for normal duty and 4 kW (5 HP) for heavy duty applications.
Q2: What supply voltage does this model operate on?
This VFD requires a three-phase supply between 380 V and 460 V AC.
Q3: What frequency range can the ATV610U55N4 output?
It can output a variable frequency from 0.1 Hz up to 500 Hz.
Q4: What motor control methods are supported?
Both V/F control and sensorless vector control are supported for motor speed regulation.
Q5: How many analog and digital inputs are available?
The drive offers 3 analog inputs and 6 digital inputs for flexible control.
Q6: Does the drive include an EMC filter?
Yes, an integrated EMC filter compliant with IEC/EN 61800-3 Category C3 is included.
Q7: What are the physical size and footprint of this unit?
The unit measures 145 × 297 × 203 mm, making it suitable for cabinet mounting.
Q8: How much does the ATV610U55N4 weigh?
The approximate weight of the drive is 4.575 kg.
