Technical Specifications
| Parameter | Description |
|---|---|

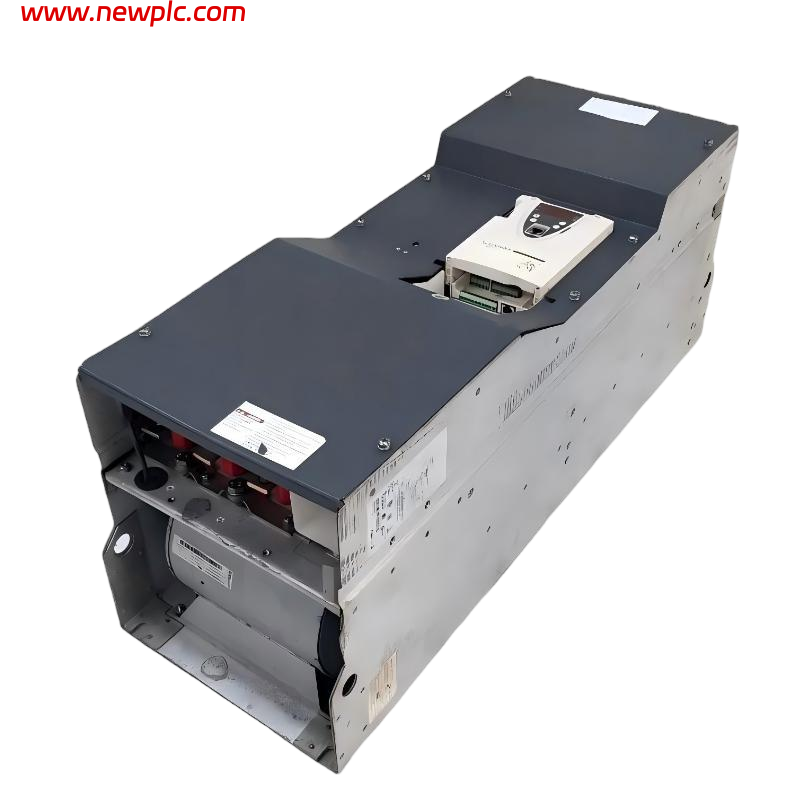

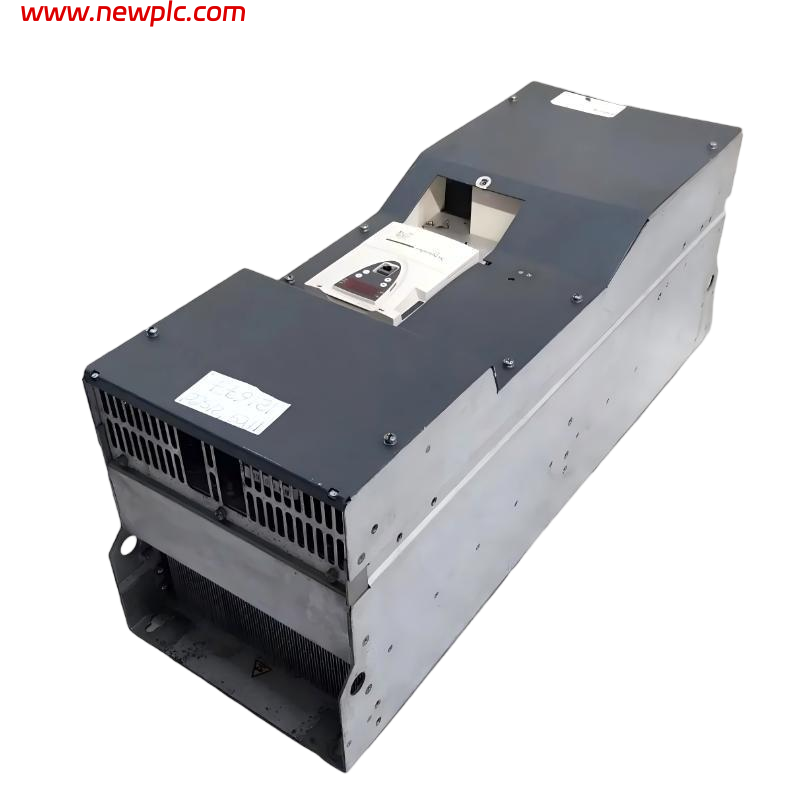

| Product | Schneider Electric ATV61HC16N4 |
| Series | Altivar 61 |
| Model Number | ATV61HC16N4 |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 160 kW (250 HP) three‑phase at 380–480 V |
| Supply Voltage | 3‑phase, 380…480 V AC (‑15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | 275 A @ 480 V; 289 A @ 380 V |
| Output Current Capability | ~314 A |
| Output Frequency Range | 0.1 – 500 Hz |
| Control Methods | Flux vector control without sensor; multiple V/f profiles |
| Integrated EMC Filter | Level 3 EMC filter |
| Communication Interfaces | Modbus; CANopen; optional cards (EtherNet/IP, Profibus, etc.) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protection (typical) |
| Protection Rating | IP00/IP30/IP41/IP54 with option kits (installation dependent) |
| Switching Frequency | Adjustable 2…8 kHz (nominal ~2.5 kHz) |
| Apparent Power | ~190.2 kVA @ 380 V |
| Braking | DC injection (with optional resistor configurations) |
| Mounting | Vertical panel or enclosure mount (heat sink style) |
| Dimensions (approx.) | Height ~1190 mm × Width ~340 mm × Depth ~377 mm |
| Weight | ~116 kg |
| Operating Temperature | −10 °C to +50 °C (without derating) |
| Storage Temperature | −25 °C to +70 °C (typical) |
FAQ
FAQ
Q1: What motor power rating does the ATV61HC16N4 support?
It supports a three‑phase motor power of 160 kW (250 HP) at 380–480 V.
Q2: What supply voltage and frequency does this drive require?
The drive requires a three‑phase 380–480 V AC supply at 50 / 60 Hz.
Q3: What is the typical output current of the ATV61HC16N4?
Typical rated output current is about 275 A at 480 V and 289 A at 380 V.
Q4: What frequency range can the drive output?
It provides an output frequency range from approximately 0.1 Hz up to 500 Hz.
Q5: What control methods are available on this model?
It supports sensorless flux vector control and multiple voltage/frequency profiles for flexible motor control.
Q6: Does this drive include an EMC filter?
Yes, it includes a Level 3 integrated EMC filter for electromagnetic compatibility.
Q7: What physical size and weight does the ATV61HC16N4 have?
The unit measures approximately 1190 × 340 × 377 mm and weighs around 116 kg.
Q8: What communication options are supported?
It supports Modbus and CANopen natively, with optional communication cards available for EtherNet/IP, Profibus, BACnet, and others.
