Technical Specifications
| Parameter | Description |
|---|---|

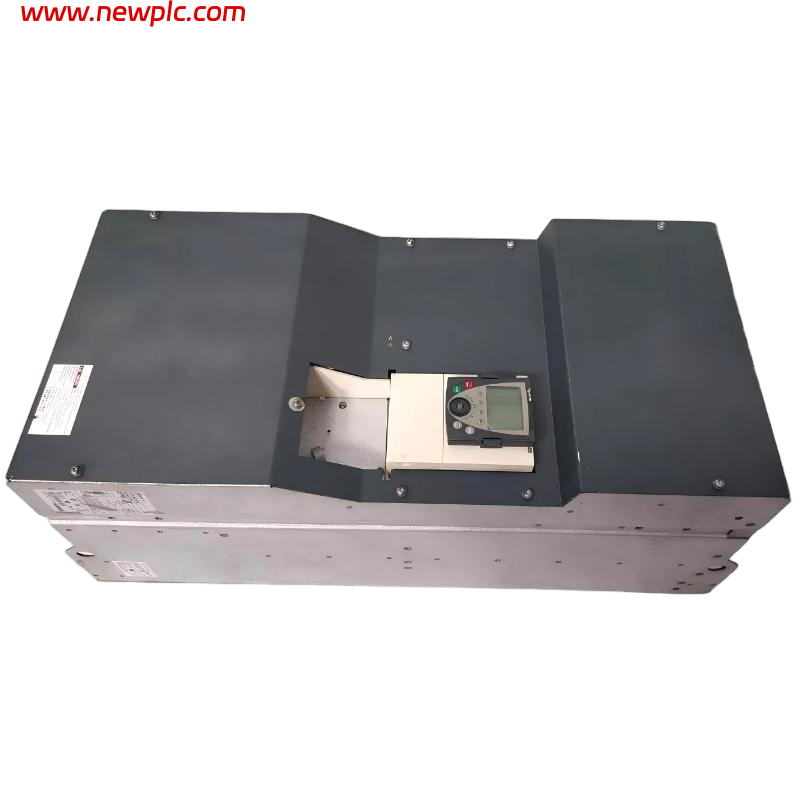

| Product | ATV61HC22N4 – Schneider Electric Altivar 61 Variable Frequency Drive (VFD) |
| Series | Altivar 61 |
| Model Number | ATV61HC22N4 |
| Drive Type | Variable Frequency Drive |
| Rated Motor Power | 200 kW (300 HP), 220 kW (350 HP) three‑phase 380–480 V AC |
| Supply Voltage | 380…480 V AC (‑15 % / +10 %) three‑phase |
| Supply Frequency | 50 / 60 Hz |
| Output Current (Continuous) | ~331 A to ~396 A depending on voltage and motor rating |
| Output Frequency Range | 0.1 – 500 Hz |
| Control Methods | Sensorless flux vector control; multi‑point V/f profiles |
| Integrated EMC Filter | Class 3 EMC filter |
| Communication Interfaces | Modbus; CANopen (optional expansion) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protections |
| Protection Rating | IP20 (indoor panel) |
| Mounting | Wall / vertical panel mount with heatsink |
| Switching Frequency | Adjustable ~2…8 kHz nominal (~2.5 kHz) |
| Braking | DC injection/braking support (with optional resistor) |
| Compatible Motor Types | Synchronous and asynchronous three‑phase motors |
| Dimensions (H × W × D) | ~1190 mm × 440 mm × 377 mm |
| Weight | ~116 kg (varies by configuration) |
| Operating Temperature | −10 °C to +50 °C (ambient) |
| Storage Temperature | −25 °C to +70 °C |
FAQ
FAQ
Q1: What motor power ratings does the ATV61HC22N4 support?
It supports heavy‑duty three‑phase motors up to 200 kW (300 HP) and 220 kW (350 HP).
Q2: What supply voltage and frequency range is required?
The drive operates on a three‑phase 380…480 V AC supply at 50/60 Hz.
Q3: What continuous output current does this drive provide?
Continuous output current ranges from roughly 331 A to about 396 A depending on motor rating and supply voltage.
Q4: What frequency range can the ATV61HC22N4 output?
It can output frequencies from approximately 0.1 Hz up to 500 Hz for flexible motor speed control.
Q5: What control methods are supported by this model?
It supports sensorless flux vector control and various voltage/frequency profiles for precise motor management.
Q6: Are communication interfaces included?
Yes — it supports Modbus and CANopen communication protocols; additional communications can be added with optional modules.
Q7: What protections are included on this drive?
Built‑in protections include overcurrent, overvoltage, undervoltage, and thermal overload protection.
Q8: What are the physical dimensions and weight of the ATV61HC22N4?
Approximate dimensions are 1190 × 440 × 377 mm and the unit weighs around 116 kg.
