Technical Specifications
| Parameter | Description |
|---|---|

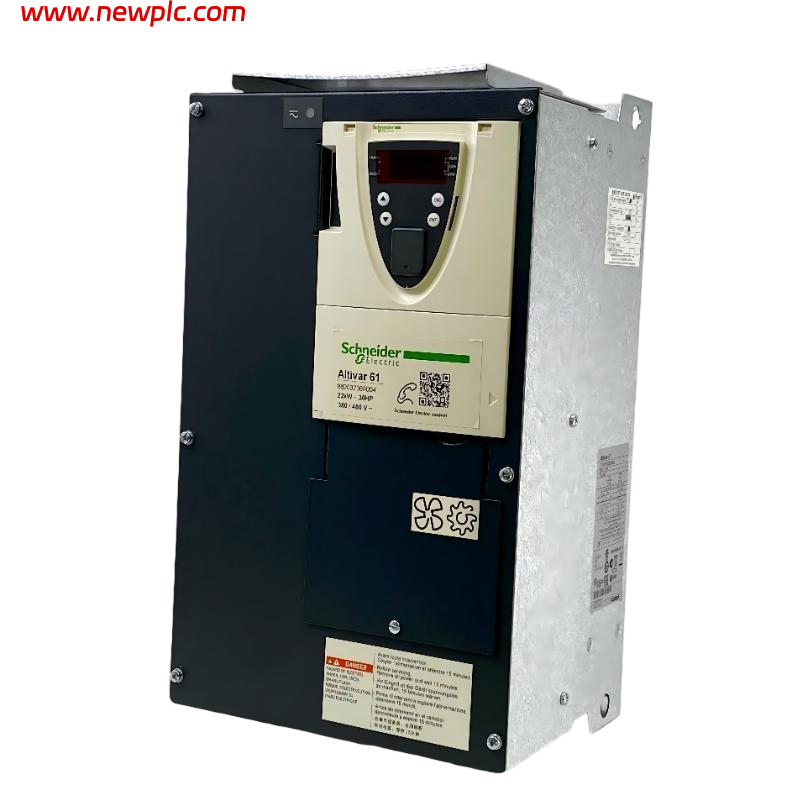

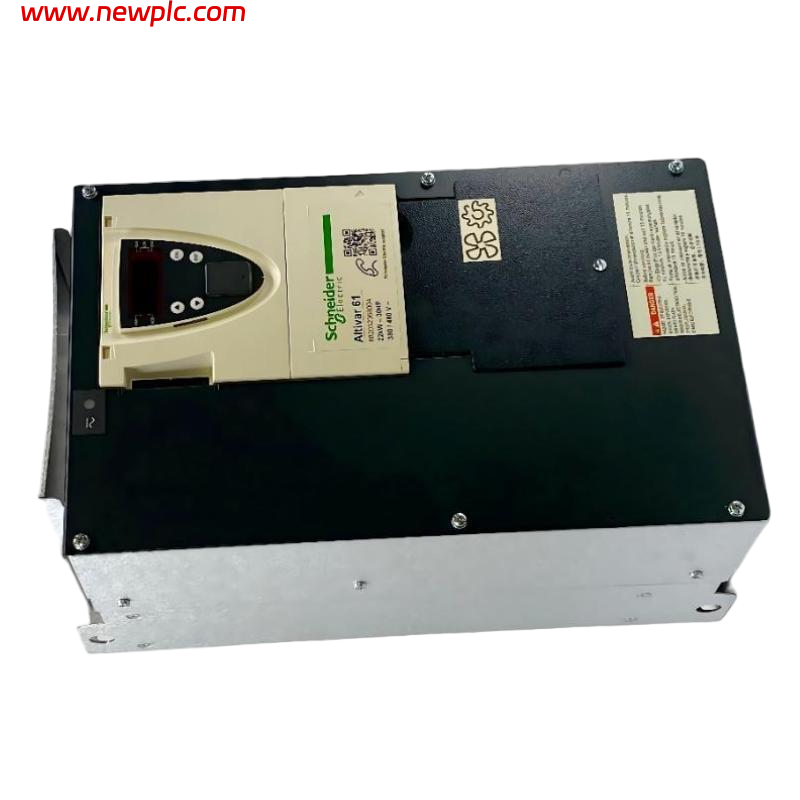

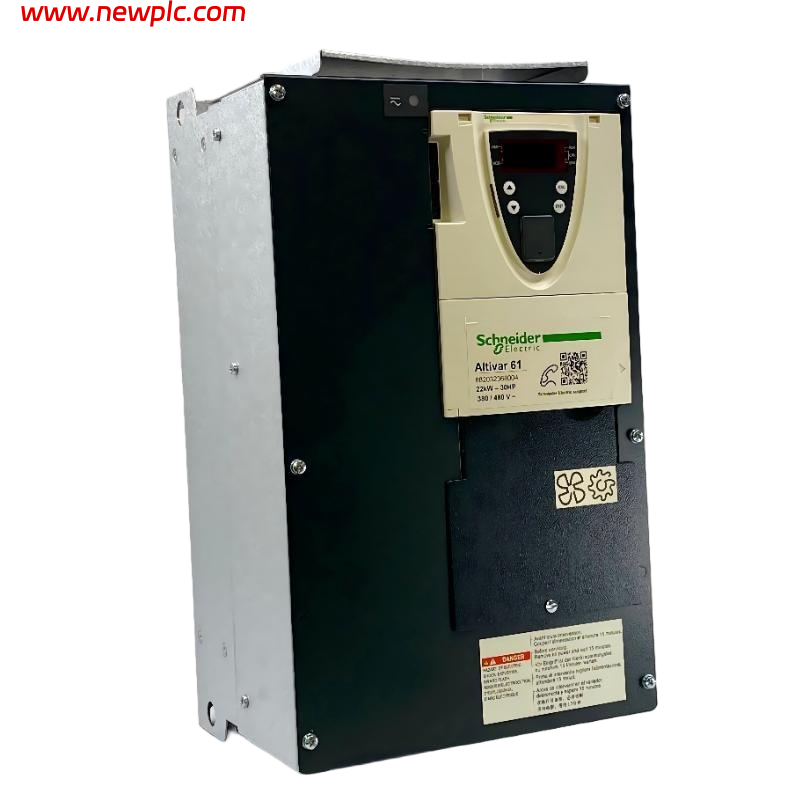

| Product | **Schneider Electric ATV61HD37N4 – Schneider Electric Altivar 61 Variable Frequency Drive |
| Series | Altivar 61 |
| Model Number | ATV61HD37N4 |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 37 kW (50 HP), three‑phase motor control |
| Supply Voltage | 380–480 V AC, three‑phase (‑15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Output Frequency Range | 0.1 – 599 Hz |
| Continuous Output Current | ~79 A @ 380 V; ~65 A @ 460–480 V |
| Line Current | ~84 A @ 380 V; ~69 A @ 480 V |
| Maximum Transient Current | ~94.8 A for 60 s |
| Apparent Power | ~55.3 kVA @ 380 V |
| Control Methods | Sensorless flux vector control; multiple V/f profiles (2‑point, 5‑point) |
| EMC Filter | Level 3 integrated EMC filter |
| Communication Interfaces | Modbus RTU; CANopen |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protections (built‑in) |
| Protection Rating | IP20 indoor enclosure |
| Cooling / Assembly | With integrated heat sink |
| Mounting | Vertical panel / wall mount |
| Switching Frequency | Adjustable 1–16 kHz (nominal ~12 kHz) |
| Dimensions (W × H × D) | ~240 × 550 × 266 mm |
| Weight | ~37 kg |
| Operating Temperature | −10 °C to +50 °C (typical) |
| Storage Temperature | −25 °C to +70 °C (typical) |
FAQ
FAQ
Q1: What motor power is the ATV61HD37N4 designed for?
The ATV61HD37N4 is designed to control three‑phase motors with a rated power of 37 kW (50 HP).
Q2: What supply voltage and frequency does this drive require?
This drive operates on a three‑phase 380–480 V AC supply at 50 / 60 Hz.
Q3: What output current does the ATV61HD37N4 provide?
Continuous output current is approximately 79 A at 380 V and 65 A at 460–480 V, with line current up to ~84 A at 380 V.
Q4: What output frequency range can this drive deliver?
It supports an adjustable output frequency range from ~0.1 Hz up to 599 Hz.
Q5: What control methods does the ATV61HD37N4 support?
It supports sensorless flux vector control and various voltage/frequency (V/f) control profiles.
Q6: Does this model include any EMC filtering?
Yes — it includes an integrated Level 3 EMC filter to reduce electromagnetic interference.
Q7: What are the physical dimensions and weight of this drive?
Its approximate dimensions are 240 × 550 × 266 mm and it weighs around 37 kg.
Q8: What protection rating does the ATV61HD37N4 have?
The drive has an IP20 protection rating suitable for indoor panel mount installation.
