Technical Specifications
| Parameter | Description |
|---|---|

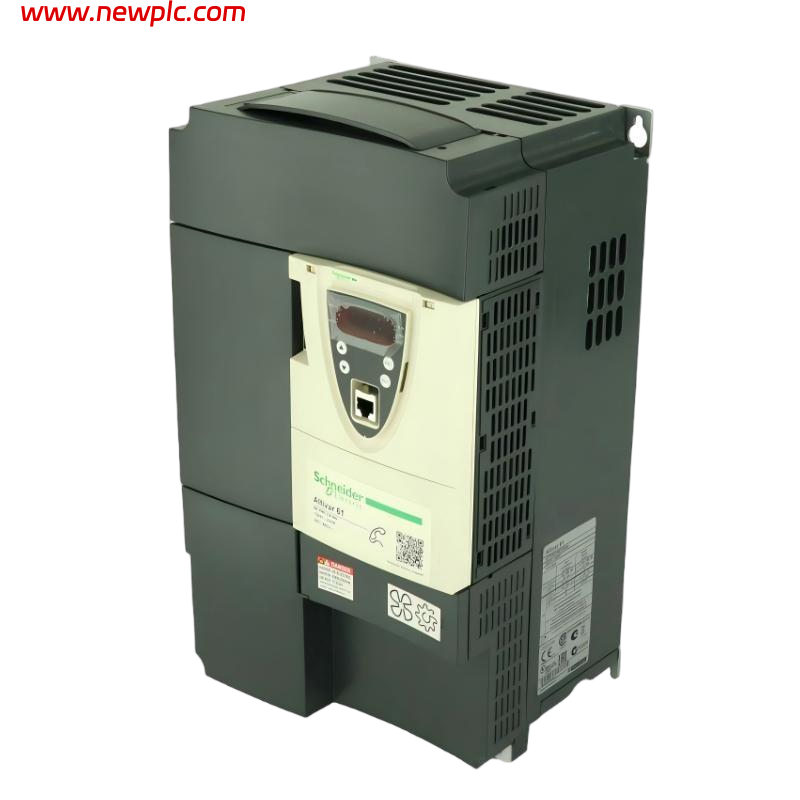

| Product | Schneider Electric ATV61HD55N4 – Altivar 61 Variable Frequency Drive (VFD) |
| Series | Altivar 61 |
| Model Number | ATV61HD55N4 |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 55 kW (75 HP) three‑phase AC motor control |
| Supply Voltage | Three‑phase, 380…480 V AC (‑15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Output Current (Nominal) | 101 A @ 480 V; 120 A @ 380 V |
| Output Frequency Range | 0.1 – 599 Hz (adjustable) |
| Control Methods | Flux vector control without sensor; multiple V/f profiles (e.g., 2‑point, 5‑point, quadratic U/f) |
| EMC Filter | Integrated Level 3 EMC filter |
| Communication Interfaces | Modbus RTU, CANopen; optional expansion cards supported |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protections (built‑in) |
| Protection Rating | IP20 (indoor panel mount) |
| Switching Frequency | Nominal 12 kHz; adjustable 1…16 kHz |
| Braking | DC injection braking (application dependent) |
| Cooling | Heat sink assembly |
| Mounting | Vertical panel / wall mount with heatsink |
| Dimensions (H × W × D) | ~630 × 320 × 290 mm |
| Weight | ~44 kg |
| Operating Temperature | −10 °C to +50 °C (typical) |
| Storage Temperature | −25 °C to +70 °C (typical) |
FAQ
FAQ
Q1: What motor power rating is the ATV61HD55N4 designed for?
It is designed to control three‑phase motors up to 55 kW (75 HP) at 380–480 V.
Q2: What supply voltage and frequency range does this drive require?
This drive operates on a three‑phase AC supply of 380…480 V at 50/60 Hz.
Q3: What continuous output current does the ATV61HD55N4 provide?
Nominal output current is about 101 A at 480 V and 120 A at 380 V.
Q4: What is the output frequency range of this model?
The output frequency can be adjusted from approximately 0.1 Hz up to 599 Hz.
Q5: What motor control methods are supported by this drive?
It supports flux vector control without a sensor and multiple voltage/frequency control profiles.
Q6: Does the ATV61HD55N4 include an EMC filter?
Yes — it includes an integrated Level 3 EMC filter to help reduce electromagnetic interference.
Q7: What are the physical dimensions and weight of this drive?
Its approximate dimensions are 630 × 320 × 290 mm, and it weighs around 44 kg.
Q8: What communication interfaces are available?
The drive supports Modbus RTU and CANopen communications, with options for additional expansion cards.
