Technical Specifications
| Parameter | Description |
|---|---|

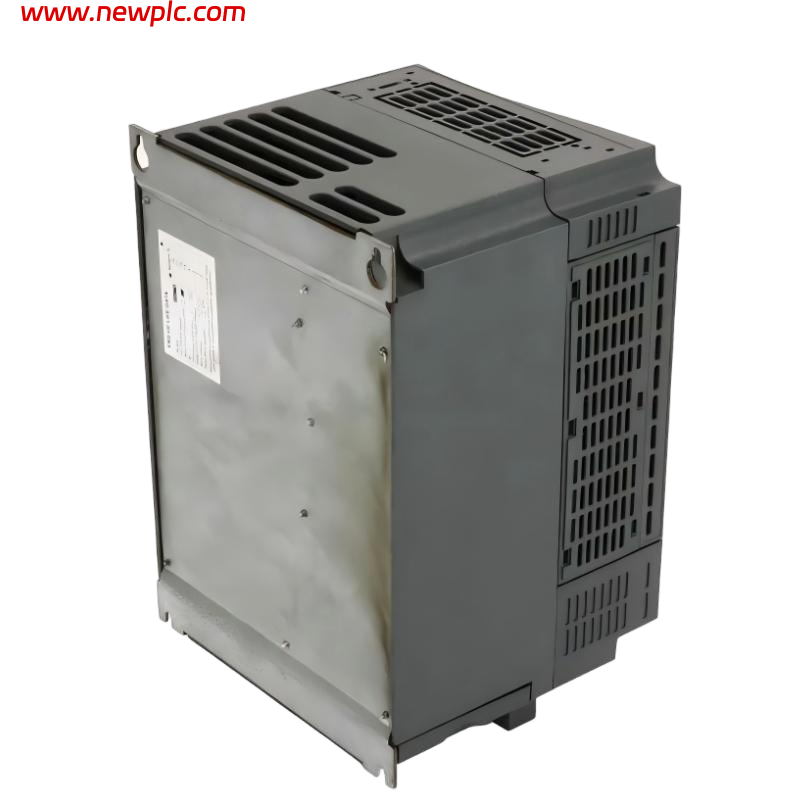

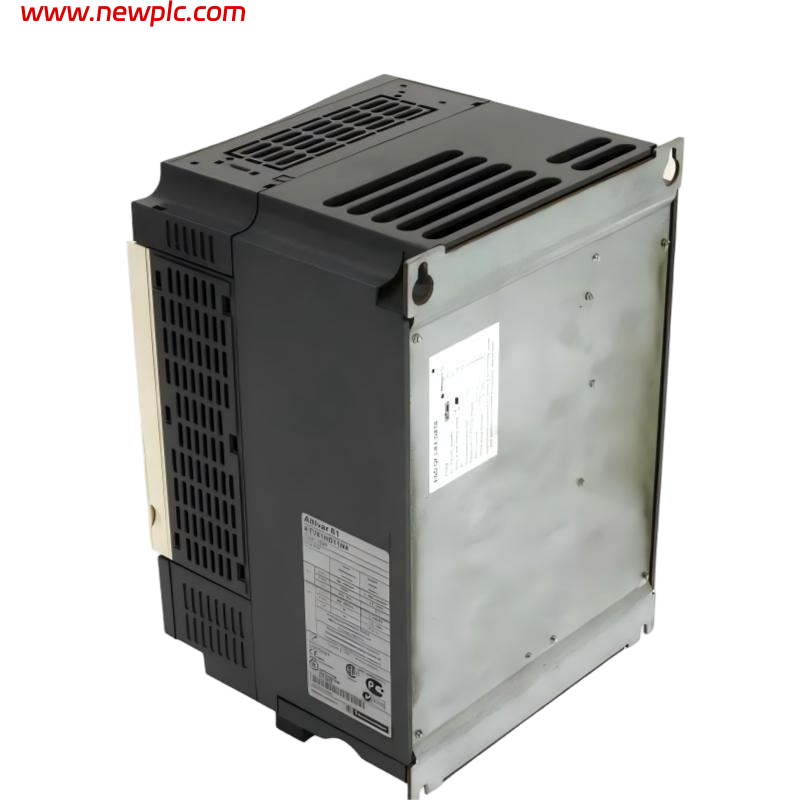

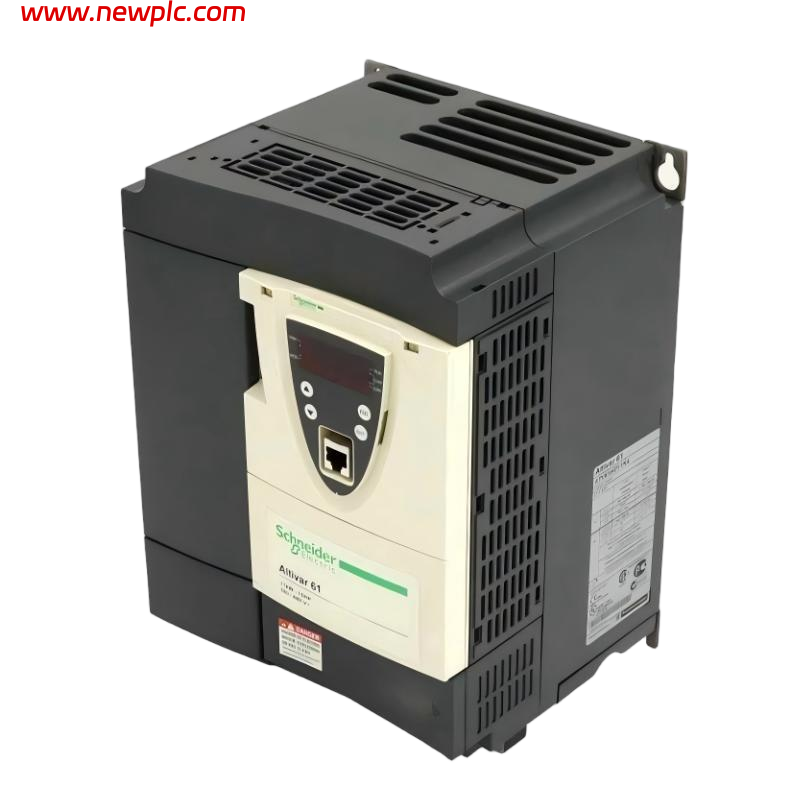

| Product | Schneider Electric ATV61HD75N4 – Altivar 61 Variable Frequency Drive (VFD) |
| Series | Altivar 61 VFD |
| Model Number | ATV61HD75N4 |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 75 kW (100 HP), three‑phase AC motor |
| Supply Voltage | 3‑phase, 380 … 480 V AC (‑15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Continuous Output Current | ~160 A @ 380 V; ~124 A @ 460 V |
| Output Frequency Range | 0.1 – 500 Hz |
| Control Methods | Flux vector control without sensor; multiple V/f profiles |
| EMC Filter | Integrated Level 3 EMC filter |
| Communication Interfaces | Modbus; CANopen; optional expansion cards |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protections |
| Protection Rating | IP20 (indoor panel mount) |
| Switching Frequency | 1 – 16 kHz adjustable; nominal ~12 kHz |
| Assembly Style | With heat sink |
| Braking | DC injection / optional braking resistor support |
| Mounting | Vertical panel / wall mount |
| Dimensions (H × W × D) | 630 × 320 × 290 mm |
| Weight | 44 kg |
| Operating Temperature | −10 °C to +50 °C (typical) |
| Storage Temperature | −25 °C to +70 °C (typical) |
FAQ
FAQ
Q1: What motor power is the ATV61HD75N4 designed for?
It is designed for controlling three‑phase motors up to 75 kW (100 HP).
Q2: What supply voltage and frequency does this drive require?
This drive operates on a three‑phase 380…480 V AC supply at 50 / 60 Hz.
Q3: What continuous output current can the ATV61HD75N4 provide?
The nominal output current is about 160 A at 380 V and about 124 A at 460 V.
Q4: What output frequency range does this model support?
It supports an adjustable output frequency range from approximately 0.1 Hz up to 500 Hz.
Q5: What control methods does the ATV61HD75N4 use?
It supports sensorless flux vector control and multiple adjustable V/f profiles.
Q6: What communication interfaces are available on this drive?
The drive supports standard Modbus and CANopen protocols, with optional expansion cards for additional industrial networks.
Q7: What are the physical dimensions and weight of the ATV61HD75N4?
Its dimensions are approximately 630 × 320 × 290 mm and it weighs about 44 kg.
Q8: What protection and filter features does this drive have?
It includes an integrated Level 3 EMC filter and protections for overcurrent, overvoltage, undervoltage, and thermal conditions.
