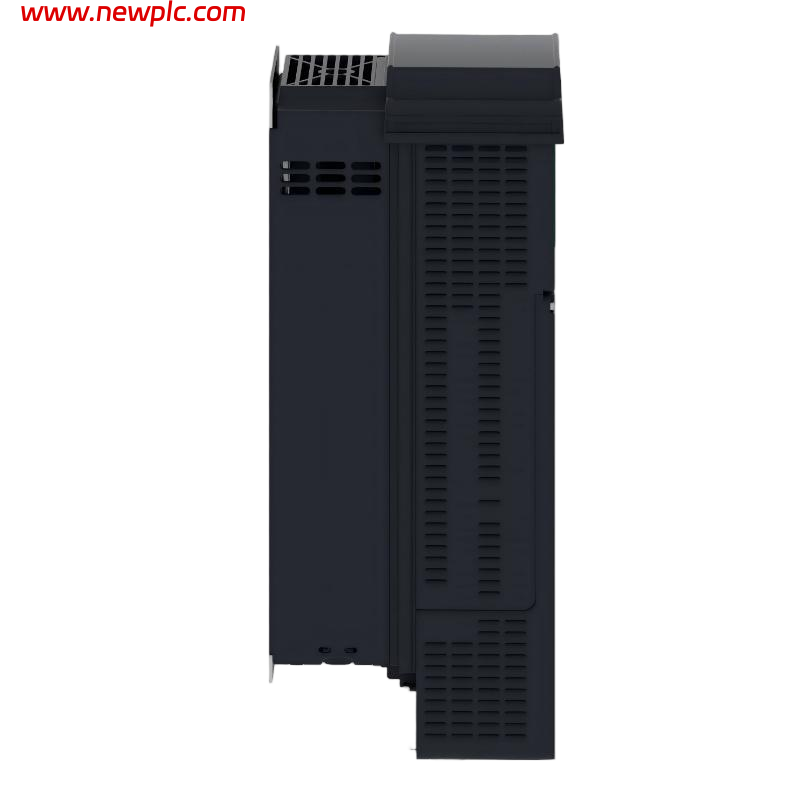

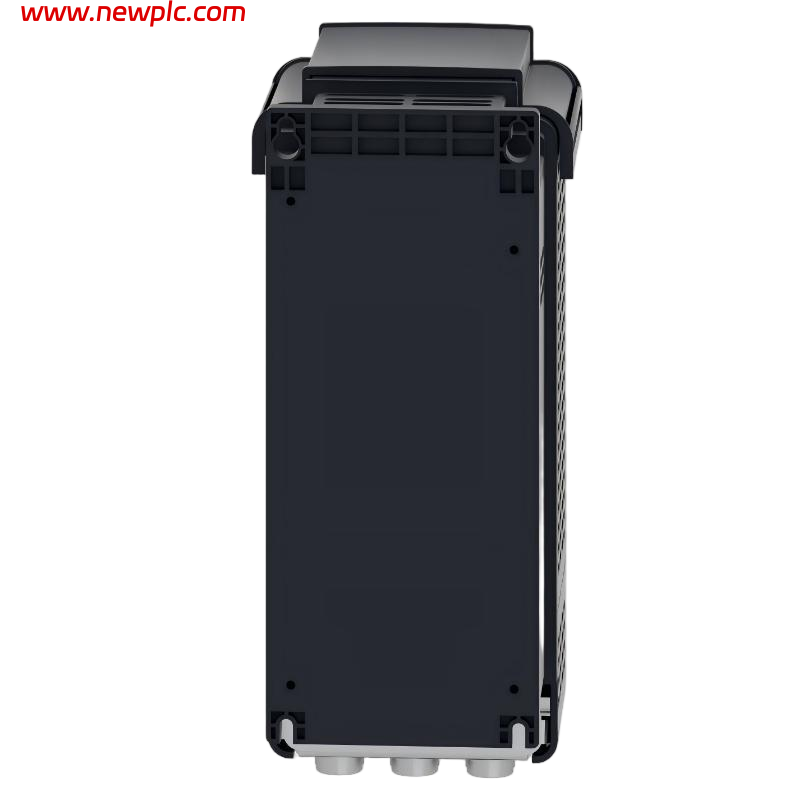

| Product Model | Schneider Electric ATV630U75N4 |
| Product Series | Altivar Process ATV600 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Power | 7.5 kW (Normal Duty) / 5.5 kW (Heavy Duty) |
| Rated Horsepower | 10 HP (Normal Duty) / 7.5 HP (Heavy Duty) |
| Supply Voltage | 3‑phase 380 – 480 V AC |
| Supply Frequency | 50 / 60 Hz ±5 % |
| Output Frequency Range | 0.1 – 500 Hz |
| Continuous Output Current | ~16.5 A (Normal Duty) / ~12.7 A (Heavy Duty) |
| Line Current (Typical) | ~13.8 A @ 380 V / ~11.9 A @ 480 V (Normal Duty) |
| Maximum Transient Current (60 s) | ~18.2 A (Normal Duty) / ~19.1 A (Heavy Duty) |
| Motor Control Methods | Variable torque, constant torque, optimized torque; supports synchronous & asynchronous profiles |
| Protection Rating | IP21 / UL Type 1 |
| Cooling Method | Forced convection |
| EMC Filter | Integrated (IEC/EN 61800‑3 C2/C3) |
| Communication Interfaces | Ethernet, Modbus Serial, Modbus TCP |
| Preset Speeds | 16 preset speeds via discrete input logic |
| Analog Inputs | 3 configurable inputs |
| Digital Inputs | 8 configurable inputs |
| Analog Outputs | 2 configurable outputs |
| Relay Outputs | 3 relay outputs |
| Dimensions (W × H × D) | 171 × 409 × 233 mm |
| Weight | Approx. 7.7 kg |
FAQ
FAQ
Q1: What is the rated power of the ATV630U75N4?
This model is rated for 7.5 kW under normal duty and 5.5 kW under heavy duty.
Q2: What supply voltage range does this drive require?
It operates on a three‑phase AC supply between 380 V and 480 V.
Q3: What is the output frequency range of the ATV630U75N4?
The output frequency can be adjusted from 0.1 Hz up to 500 Hz.
Q4: What types of motors can this VFD control?
It supports control of both asynchronous and synchronous motors using multiple torque profiles.
Q5: What communication options are available on this drive?
Standard communications include Ethernet, Modbus Serial, and Modbus TCP interfaces.
Q6: How many inputs and outputs does this model have?
It includes 3 analog inputs, 8 digital inputs, 2 analog outputs, and 3 relay outputs.
Q7: What is the physical size and weight of the ATV630U75N4?
The drive measures approximately 171 × 409 × 233 mm and weighs around 7.7 kg.
Q8: What protection rating does this drive have?
The enclosure has an IP21 protection rating and UL Type 1 compliance for industrial cabinet mounting.
