Technical Specifications
| Parameter | Description |
|---|---|

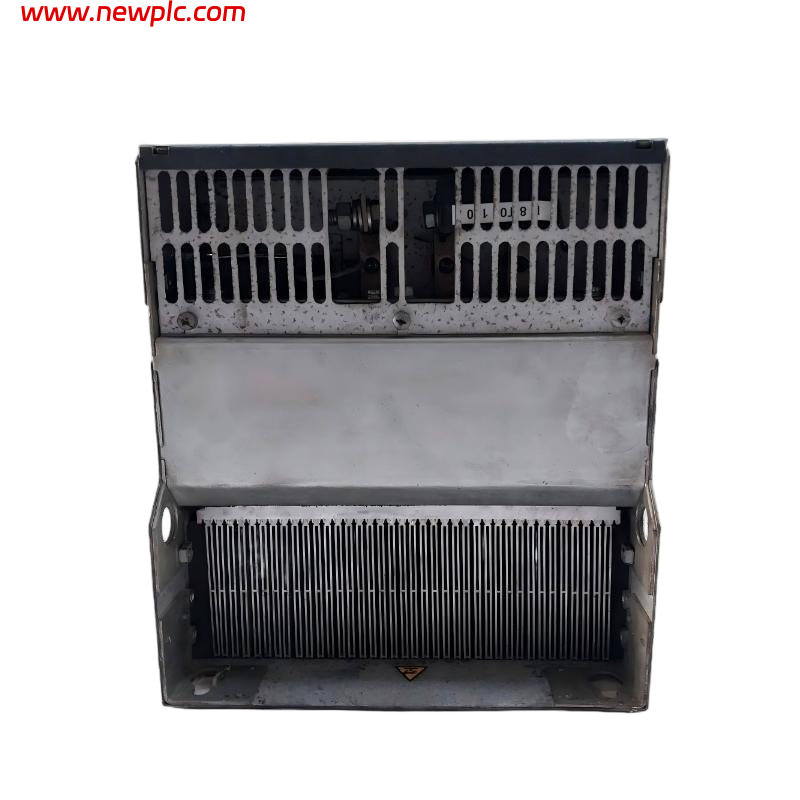

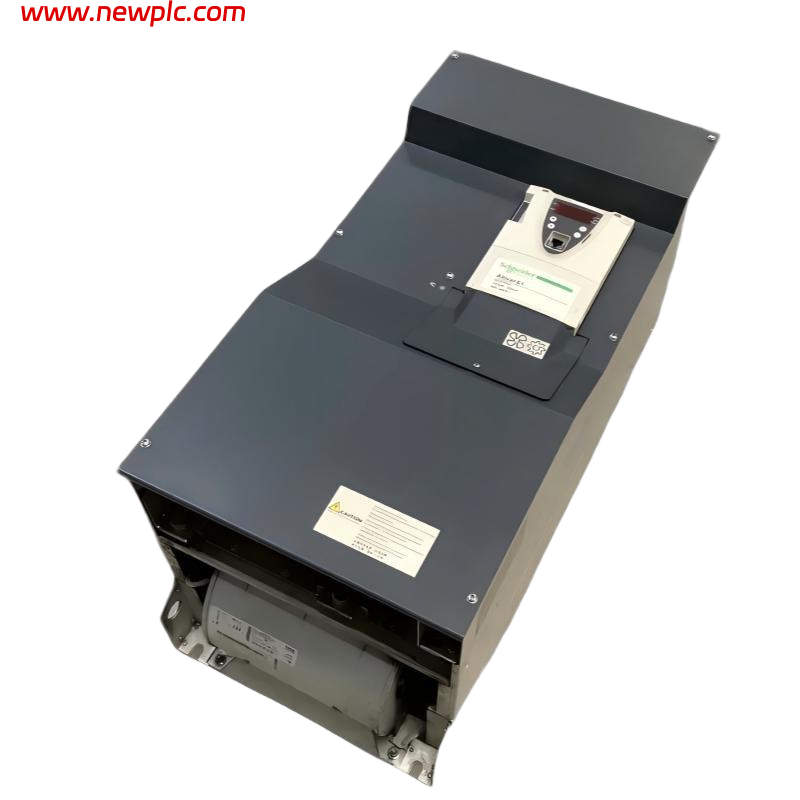

| Product | Schneider Electric ATV61HD90N4 – Altivar 61 Variable Frequency Drive (VFD) |
| Series | Altivar 61 industrial drive family |
| Model Number | ATV61HD90N4 |
| Drive Type | Variable Frequency Drive for three-phase motors |
| Rated Motor Power | 90 kW (125 HP) three-phase motor control |
| Supply Voltage | Three-phase, 380…480 V AC (-15 % / +10 %) |
| Supply Frequency | 50 / 60 Hz |
| Output Current (Nominal) | ~143 A @ 480 V; ~166 A @ 380 V |
| Output Frequency Range | 0.1 – 500 Hz (adjustable) |
| Control Methods | Flux vector control without sensor; multiple V/f profiles |
| Integrated EMC Filter | Level 3 EMC filter |
| Communication Interfaces | Modbus RTU, CANopen (optional modules) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protections |
| Protection Rating | IP20 (indoor panel mount) |
| Switching Frequency | Adjustable ~2…8 kHz (nominal ~4 kHz) |
| Assembly Style | With heat sink |
| Braking | DC injection / optional resistor support |
| Mounting | Vertical panel / wall mount with heatsink |
| Dimensions (H × W × D) | 920 × 320 × 377 mm |
| Weight | 84 kg |
| Operating Temperature | −10 °C to +50 °C typical (industrial ambient conditions) |
| Storage Temperature | −25 °C to +70 °C typical (general spec range) |
FAQ
FAQ
Q1: What motor power is the ATV61HD90N4 designed for?
It is designed to control three-phase motors with a rated power of 90 kW (125 HP).
Q2: What supply voltage and frequency range does this drive require?
This drive operates on a three-phase 380–480 V AC supply at 50 / 60 Hz.
Q3: What output current can the ATV61HD90N4 provide?
Nominal output current is about 143 A at 480 V and about 166 A at 380 V.
Q4: What is the adjustable output frequency range?
The drive supports an adjustable output frequency range from approximately 0.1 Hz up to 500 Hz.
Q5: What control methods does this model support?
It supports flux vector control without a sensor and various voltage/frequency (V/f) control profiles.
Q6: Does the ATV61HD90N4 include EMC filtering?
Yes — it includes an integrated Level 3 EMC filter for electromagnetic compatibility and reduced interference.
Q7: What are the physical dimensions and weight of this drive?
The unit measures approximately 920 × 320 × 377 mm and weighs around 84 kg.
Q8: What protection rating does the ATV61HD90N4 have?
It has an IP20 protection rating, suitable for indoor panel mounting in industrial installations.
