Technical Specifications
| Parameter | Description |
|---|---|

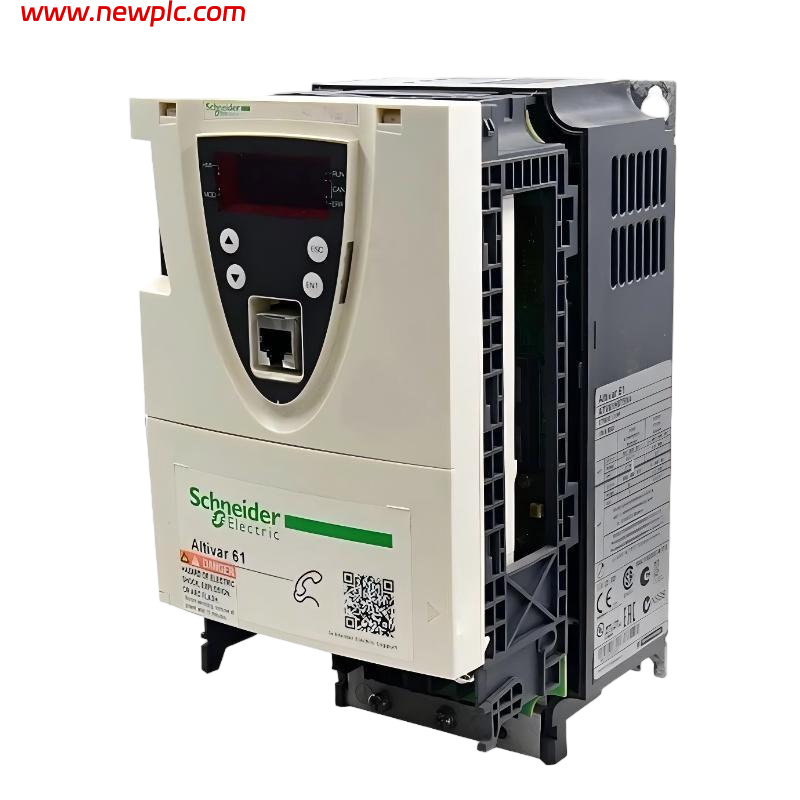

| Product | Schneider Electric ATV61HU15N4 – Variable Frequency Drive (Altivar 61 series) |
| Series | Altivar 61 VFD |
| Model Number | ATV61HU15N4 |
| Drive Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 1.5 kW (2 HP) three-phase |
| Supply Voltage | 380 – 480 V AC, three-phase |
| Supply Frequency | 50 / 60 Hz |
| Output Current | 5.8 A @ 380 V; 5.3 A @ 480 V |
| Continuous Output Current | 3.4 A nominal |
| Apparent Power | 3.8 kVA @ 380 V |
| Output Frequency Range | 0.1 – 599 Hz |
| Control Methods | Flux vector control without sensor; multiple V/f profiles |
| EMC Filter | Integrated Level 3 EMC filter |
| Communication Interfaces | Modbus, CANopen (optional modules) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protections |
| Protection Rating | IP20 (panel enclosure) |
| Switching Frequency | Adjustable 1 – 16 kHz (nominal 12 kHz) |
| Braking | DC injection; up to 125 % with braking resistor |
| Operating Temperature | −10 °C to +50 °C |
| Storage Temperature | −25 °C to +70 °C |
| Dimensions (W × H × D) | 130 × 230 × 175 mm |
| Weight | 3 kg |
FAQ
FAQ
Q1: What motor size is the ATV61HU15N4 designed for?
It is designed to control a 1.5 kW (2 HP) three-phase motor.
Q2: What supply voltage and frequency does this drive require?
The ATV61HU15N4 operates on a three-phase 380 – 480 V AC supply at 50 / 60 Hz.
Q3: What is the nominal output current of this drive?
Nominal output current is approximately 3.4 A, with line current up to about 5.8 A at 380 V.
Q4: What output frequency range does this model support?
It supports an adjustable output frequency range from 0.1 Hz up to 599 Hz for flexible motor speed control.
Q5: What control methods does the ATV61HU15N4 use?
It uses sensorless flux vector control and multiple voltage/frequency (V/f) profiles for precise speed and torque regulation.
Q6: Does this drive include an EMC filter?
Yes — it has an integrated Level 3 EMC filter to reduce electromagnetic interference.
Q7: What are the physical dimensions and weight of the ATV61HU15N4?
The drive measures 130 × 230 × 175 mm and weighs about 3 kg.
Q8: What protection features and rating does this drive have?
It has built-in protections for overcurrent, undervoltage, and thermal conditions and an IP20 protection rating for indoor enclosure use.
