Technical Specifications
| Parameter | Description |
|---|---|

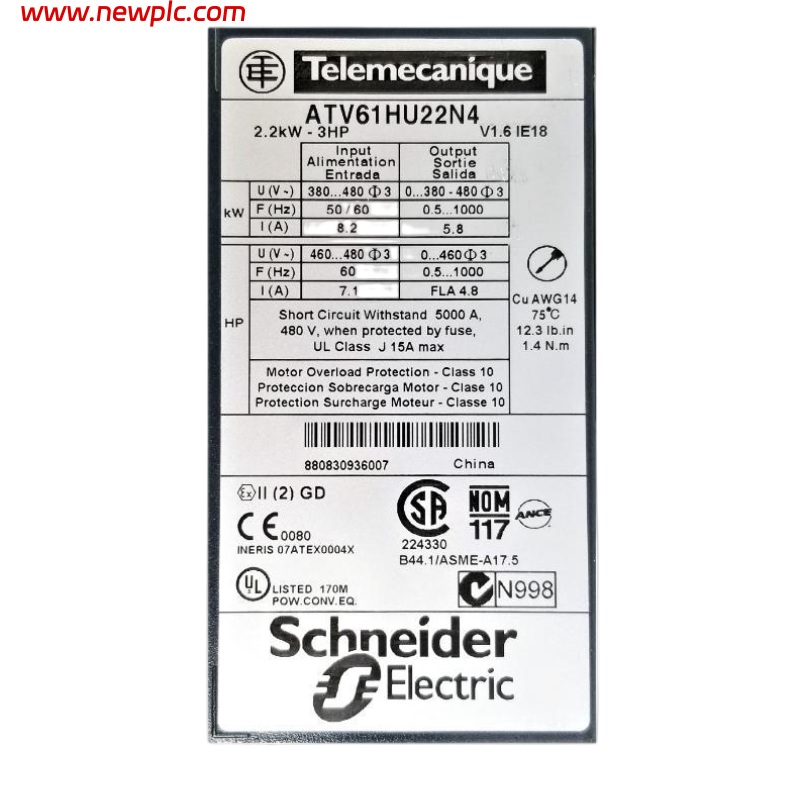

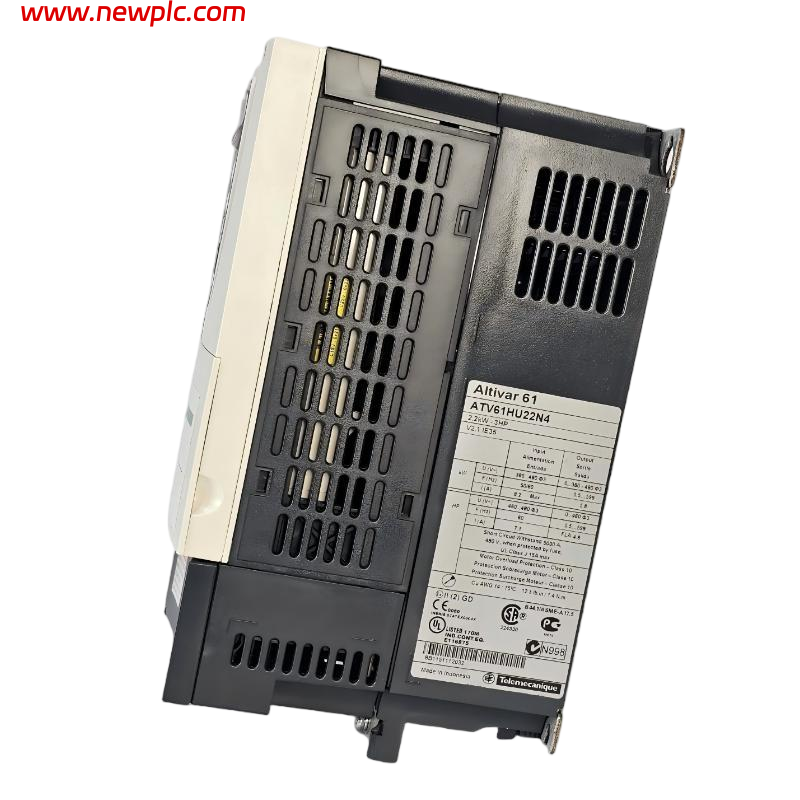

| Product | ATV61HU22N4 – Schneider Electric Altivar 61 Variable Frequency Drive (VFD) |
| Series | Altivar 61 VFD family |
| Model Number | ATV61HU22N4 |
| Drive Type | Variable Frequency Drive (for three-phase motors) |
| Rated Motor Power | 2.2 kW (3 HP) three-phase motor |
| Supply Voltage | Three-phase, 380 … 480 V AC |
| Supply Frequency | 50 / 60 Hz |
| Output Current (Nominal) | 5.8 A @ 380 V; 4.8 A @ 460 V |
| Output Frequency Range | 0.1 – 599 Hz (adjustable) |
| Control Methods | V/f control; sensorless vector control (flux vector) |
| Integrated EMC Filter | Level 3 EMC filter |
| Communication Interfaces | Modbus RTU, CANopen |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protection (built-in) |
| Protection Rating | IP20 (indoor panel mount) |
| Braking | DC injection braking; up to ~125 % with optional braking resistor |
| Switching Frequency | Adjustable 1 – 16 kHz (nominal ~12 kHz) |
| Mounting | Vertical panel / wall mount |
| Operating Temperature | −10 °C to +50 °C |
| Storage Temperature | −25 °C to +70 °C |
| Dimensions (W × H × D) | 130 × 230 × 175 mm |
| Weight | 3 kg |
FAQ
FAQ
Q1: What motor power is the ATV61HU22N4 designed for?
It is made to control three-phase motors with a rated power of 2.2 kW (3 HP).
Q2: What supply voltage and frequency does this drive require?
This drive operates on a three-phase 380…480 V AC supply at 50 / 60 Hz.
Q3: What is the nominal output current of the ATV61HU22N4?
The nominal output current is about 5.8 A at 380 V and about 4.8 A at 460 V.
Q4: What output frequency range can this model deliver?
It supports an adjustable output frequency range from approximately 0.1 Hz up to 599 Hz.
Q5: What control methods does the ATV61HU22N4 support?
It supports V/f control and sensorless vector control (flux vector) for flexible speed management.
Q6: Does the drive include EMC filtering?
Yes — it includes an integrated Level 3 EMC filter to help reduce electromagnetic interference.
Q7: What are the physical dimensions and weight of this drive?
The drive measures approximately 130 × 230 × 175 mm and weighs about 3 kg.
Q8: What communication interfaces are available on the ATV61HU22N4?
It supports Modbus RTU and CANopen communications for integration into control systems.
