Technical Specifications
| Item | Specification |
|---|---|

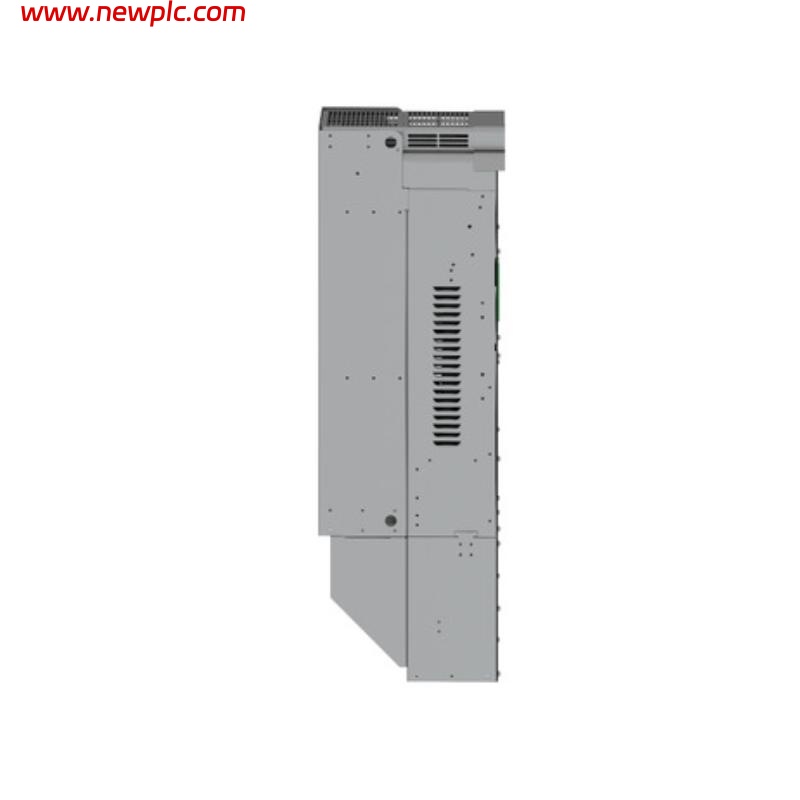

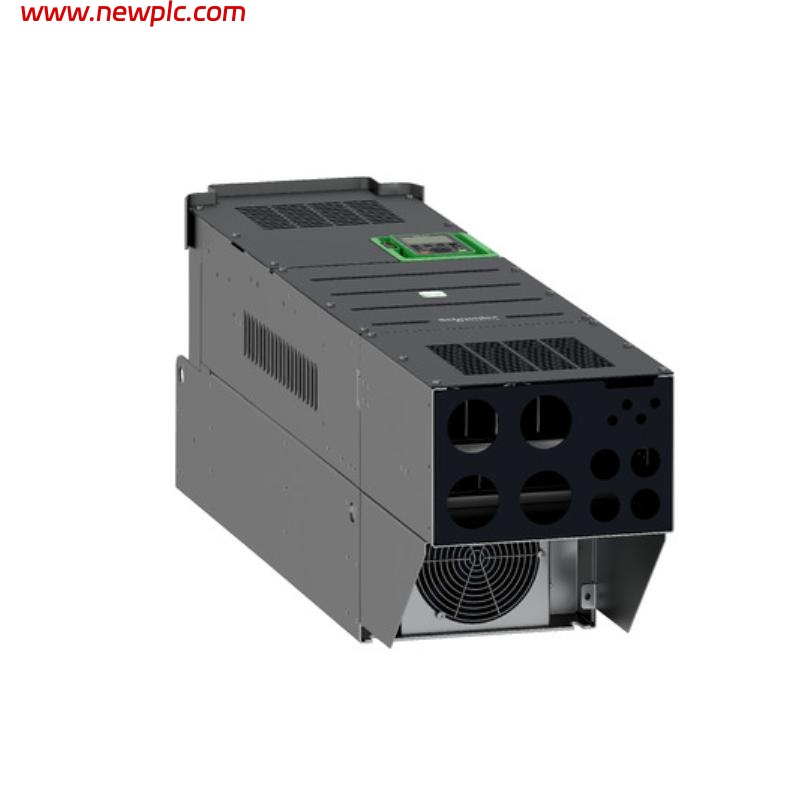

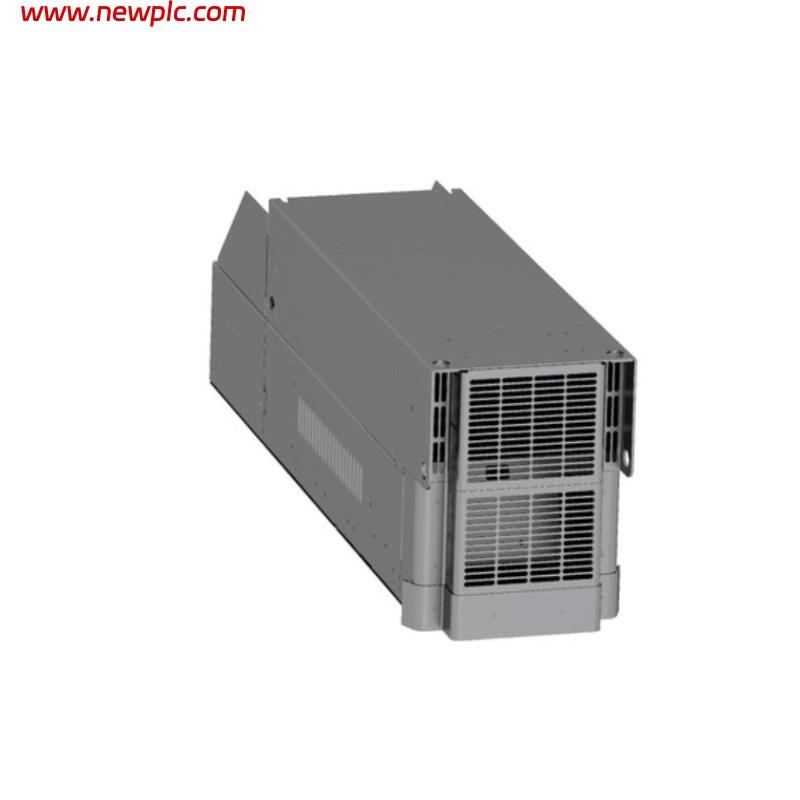

| Model | ATV630C11N4 |
| Product Type | Variable Speed Drive |
| Series | Altivar Process ATV630 |
| Power Rating | 110 kW (150 HP) |
| Rated Voltage | 380–480 V AC, 3-phase |
| Rated Current | 208 A |
| Frequency Range | 0.5–500 Hz |
| Control Type | Sensorless flux vector control, V/F control |
| Overload Capacity | 120% of nominal current for 60 seconds |
| Communication Protocols | Modbus, Ethernet/IP, CANopen, Modbus TCP |
| Display | Integrated graphic display with navigation dial |
| Input Signal | 6 digital inputs, 3 analog inputs |
| Output Signal | 2 relay outputs, 2 analog outputs |
| Cooling Method | Forced air cooling with integrated fan |
| Protection Degree | IP21 (standard), IP54 (optional enclosure) |
| Ambient Operating Temperature | -10°C to +50°C (derating above 40°C) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5%–95%, non-condensing |
| Altitude | Up to 1000 m without derating (up to 3000 m with derating) |
| Dimensions | 320 x 852 x 390 mm |
| Weight | 82 kg |
FAQ
FAQ
Q1: What is the main function of the Schneider ATV630C11N4?
A1: It controls the speed and torque of three-phase motors in industrial applications to optimize energy efficiency and performance.
Q2: What is the power rating of this drive?
A2: The power rating is 110 kW (150 HP).
Q3: What type of motor control does it support?
A3: It supports both sensorless flux vector control and V/F (voltage/frequency) control.
Q4: What communication protocols are available?
A4: The drive supports Modbus, Ethernet/IP, CANopen, and Modbus TCP.
Q5: What is the overload capacity of the ATV630C11N4?
A5: It can handle 120% of its nominal current for up to 60 seconds.
Q6: What is the degree of protection for this model?
A6: The standard protection rating is IP21, with an optional IP54 enclosure available.
Q7: What is the operating temperature range?
A7: The drive operates between -10°C and +50°C, with derating above 40°C.
Q8: What are the dimensions and weight of this drive?
A8: Dimensions are 320 x 852 x 390 mm, and the weight is 82 kg.
