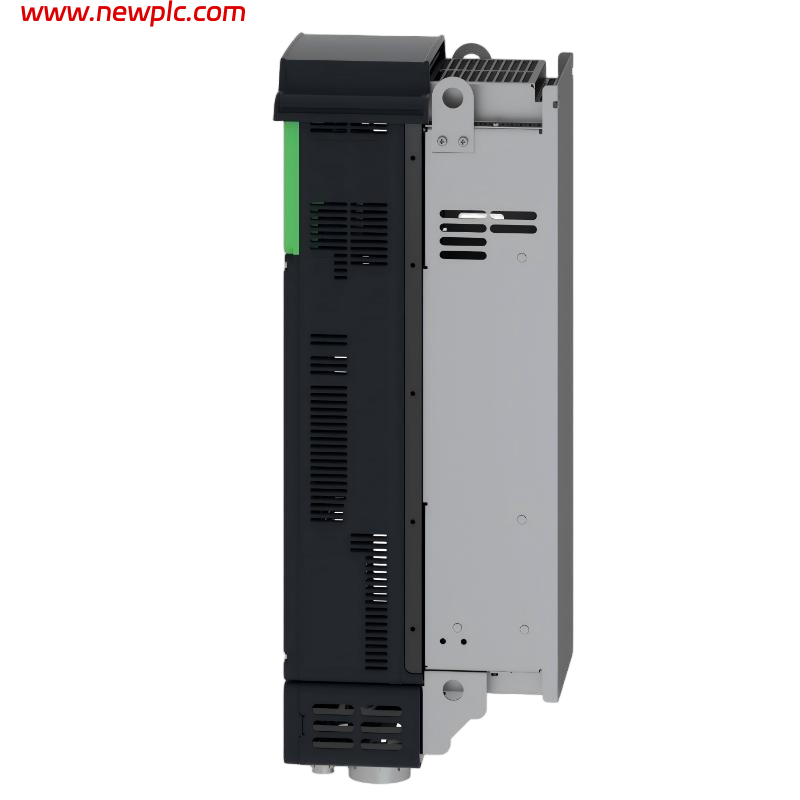

Schneider ATV630D75N4 Variable Frequency Drive (VFD)

FAQ

Q1: What is the rated power of the ATV630D75N4?
The drive has a rated output power of 75 kW (100 HP) under normal duty and 55 kW (75 HP) under heavy duty.

Q2: What supply voltage does this VFD require?
It operates with a three‑phase AC supply between 380 V and 480 V at 50–60 Hz.

Q3: What frequency range can the ATV630D75N4 deliver?
The output frequency can be adjusted from approximately 0.1 Hz up to 500 Hz for motor speed control.

Q4: What types of motors can this drive control?
This drive supports both asynchronous and synchronous motor control with multiple torque profiles, including variable, constant, and optimized torque.

Q5: What communication interfaces are available?
Standard communications include Ethernet, Modbus serial, and Modbus TCP connections.

Q6: What is the enclosure protection rating?
The drive has an IP21 protection rating and UL Type 1 enclosure suitable for industrial environments.

Q7: What are the physical dimensions and weight of this unit?
The approximate dimensions are 290 mm (W) × 922 mm (H) × 323 mm (D), and the unit weighs around 58 kg.

Q8: Does this model include an EMC filter?
Yes, it includes an integrated EMC filter conforming to EN/IEC 61800‑3 Category C3.
