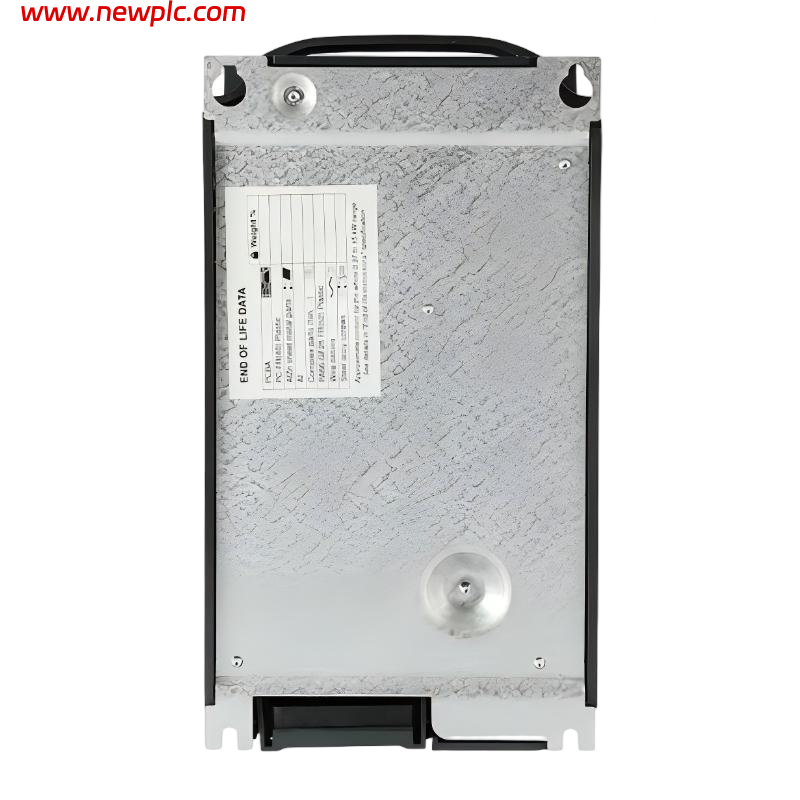

Schneider ATV71HU15N4 Variable Frequency Drive (VFD)

FAQ

Q1: What is the rated power of the ATV71HU15N4?
The drive is rated for 1.5 kW (2 HP) for three‑phase motor applications.

Q2: What supply voltage does this VFD require?
It operates on a three‑phase 380–480 V AC supply.

Q3: What output frequency range is supported?
The adjustable output frequency range is approximately 0.1 Hz to 599 Hz.

Q4: What motor control methods does this model support?
It supports vector control (with or without speed feedback), sensorless flux vector control, energy adaptation (ENA), and standard V/F ratio control.

Q5: Does the ATV71HU15N4 include an EMC filter?
Yes, it includes an integrated EMC filter for improved electromagnetic compatibility.

Q6: What protection rating does the enclosure have?
The unit has an IP20 protection rating suitable for industrial control cabinet mounting (UL Type 1).

Q7: What are the physical dimensions and weight of this drive?
The drive measures approximately 13 × 23 × 17.5 cm and weighs about 3 kg.

Q8: What is the typical rated and maximum current?
Rated output current is about 3.4 A to 4.1 A depending on supply voltage, and maximum line current is around 5.3 A to 5.8 A.
