Technical Specifications
| Parameter | Specification |
|---|---|

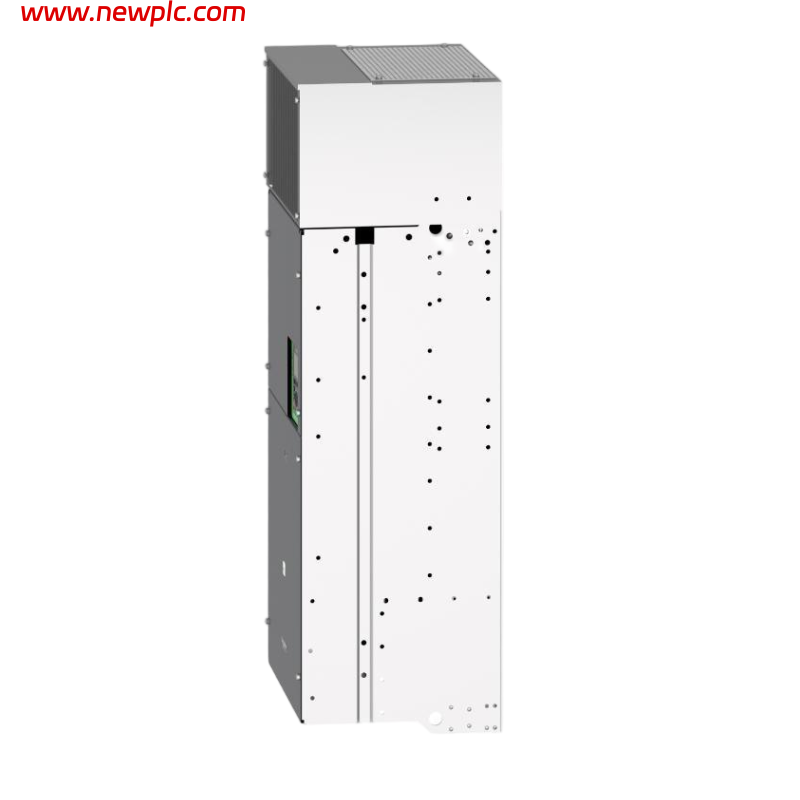

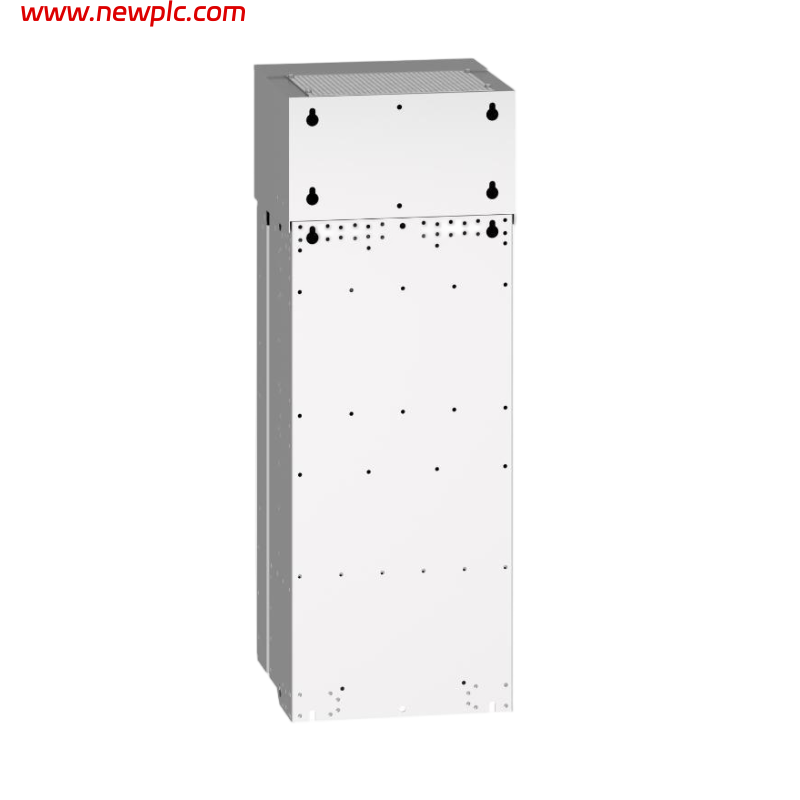

| Product Model | ATV930D11N4 |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 11 kW (15 HP) – Normal Duty / 7.5 kW (10 HP) – Heavy Duty |
| Supply Voltage | 3-phase 380–480 V AC (-15 %/+10 %) |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.1–599 Hz |
| Continuous Output Current | ~23.5 A (Normal Duty) / ~16.5 A (Heavy Duty) |
| Line Current | ~19.8 A @ 380 V (Normal Duty) / ~14.1 A @ 380 V (Heavy Duty) |
| Control Methods | V/F ratio control, sensorless vector control, flux vector control |
| Protection Rating | IP21 (IEC 61800-5-1) / UL Type 1 |
| EMC Filter | Integrated, with optional EMC plate |
| Safety Functions | Safe Torque Off (STO), SIL3 (optional) |
| Communication Interfaces | Modbus serial, Modbus TCP, Ethernet/IP; optional Profibus, PROFINET, CANopen, EtherCAT |
| Mounting Method | Wall mount (vertical, ±10°) |
| Dimensions (W × H × D) | 17.1 × 40.9 × 23.6 cm |
| Weight | ~7.7 kg |
FAQ
FAQ
Q1: What motor power ratings does the ATV930D11N4 support?
It supports up to 11 kW (15 HP) for normal duty and 7.5 kW (10 HP) for heavy duty motor control.
Q2: What supply voltage and frequency are required?
The drive operates on a 3-phase 380–480 V AC supply at 50/60 Hz.
Q3: What output frequency range does this VFD provide?
Output frequency is adjustable from 0.1 Hz to 599 Hz.
Q4: What continuous current ratings are typical?
Continuous output current is about 23.5 A for normal duty and 16.5 A for heavy duty.
Q5: What motor control methods are supported?
It supports V/F ratio, sensorless vector, and flux vector control methods.
Q6: What communication options are available?
Standard communications include Modbus serial, Modbus TCP, and Ethernet/IP, with optional Profibus, PROFINET, CANopen, and EtherCAT modules.
Q7: What are the dimensions and weight of this drive?
The drive measures approximately 17.1 × 40.9 × 23.6 cm and weighs around 7.7 kg.
Q8: What protection and safety features does the ATV930D11N4 have?
It has an IP21 / UL Type 1 protection rating and supports Safe Torque Off (STO) safety functionality (SIL3).
