Technical Specifications
| Parameter | Specification |
|---|---|

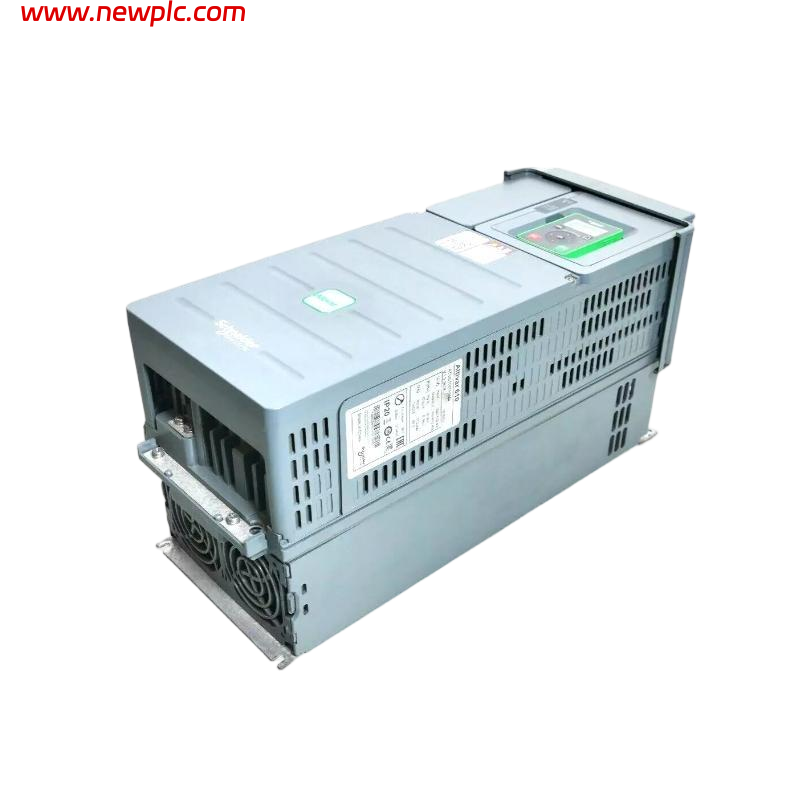

| Product Model | ATV930D18N4 |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable Frequency Drive (VFD) |
| Rated Motor Power | 18.5 kW (Normal Duty) / 15 kW (Heavy Duty) |
| Rated Horsepower | 25 HP (Normal Duty) / 20 HP (Heavy Duty) |
| Supply Voltage | 3-phase 380–480 V AC (-15 %/+10 %) |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.1–599 Hz |
| Continuous Output Current | ~39.2 A (Normal Duty) / ~31.7 A (Heavy Duty) |
| Line Current | ~33.4 A @ 380 V / ~28.9 A @ 480 V (Normal Duty) |
| Motor Control Methods | V/F ratio, sensorless vector, flux vector (optional encoder) |
| EMC Filter | Integrated (with EMC plate option) |
| Protection Rating | IP21 / UL Type 1 |
| Cooling Method | Forced air convection |
| Communication Interfaces | Modbus serial, Modbus TCP, EtherNet/IP; optional Profibus, PROFINET, CANopen, EtherCAT |
| Safety Features | Safe Torque Off (STO), Safe Brake management (SBC/SBT) supported |
| Mounting Method | Wall mount (vertical, ±10°) |
| Dimensions | 21.1 × 54.59 × 23.5 cm |
| Weight | ~14.2 kg |
FAQ
FAQ
Q1: What motor power ratings does the ATV930D18N4 support?
It supports up to 18.5 kW (25 HP) for normal duty and 15 kW (20 HP) for heavy duty applications.
Q2: What input voltage and frequency are required?
It operates on a 3-phase 380–480 V AC supply with a frequency range of 50/60 Hz.
Q3: What output frequency range does this VFD provide?
The drive provides an adjustable frequency range from 0.1 Hz up to 599 Hz.
Q4: What are the typical current ratings?
Continuous output current is approximately 39.2 A under normal duty and 31.7 A under heavy duty; line current varies with voltage.
Q5: What motor control methods are available?
It supports multiple control methods such as V/F ratio, sensorless vector, and flux vector (with optional encoder).
Q6: Does the drive include an EMC filter?
Yes, it has an integrated EMC filter, with an option to add an EMC plate for enhanced suppression.
Q7: What are the dimensions and weight of the ATV930D18N4?
The approximate size is 21.1 × 54.59 × 23.5 cm, and it weighs about 14.2 kg.
Q8: What protection and safety features does this model have?
It features an IP21 / UL Type 1 protection rating and supports safety functions like Safe Torque Off (STO) and safe brake management.
