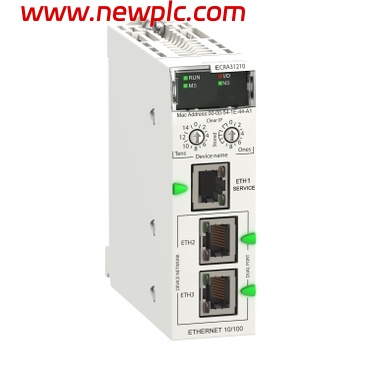

Schneider BMECRA31210 Communication Network Adapter / Remote I/O Gateway

FAQ

Q1: What is the main function of the BMECRA31210?
It serves as a communication gateway between a controller (such as a PLC) and BMEX distributed I/O devices over a fieldbus network.

Q2: Which communication protocol does the BMECRA31210 support?
It supports PROFIBUS DP communication for high-speed fieldbus data exchange.

Q3: What types of devices can connect through this module?
It enables communication between a central controller and BMEX I/O modules or other PROFIBUS DP-compatible devices in a distributed system.

Q4: Does the BMECRA31210 require separate power?
No, it is typically powered from the controller or BMEX bus power distribution module.

Q5: Does the module provide status indicators?
Yes, it includes LED indicators to show network status, communication activity, and error conditions.

Q6: Can the BMECRA31210 be used in industrial cabinets?
Yes, it is designed for industrial control cabinet mounting and robust operation under standard control room conditions.

Q7: What connections does it provide?
It provides both fieldbus network connectors and spring clamp terminals for I/O or auxiliary connections.

Q8: What are the physical dimensions and weight of the BMECRA31210?
The module measures approximately 120 mm × 90 mm × 60 mm and weighs about 0.60 kg.
