Technical Specifications
| Item | Specification |
|---|---|

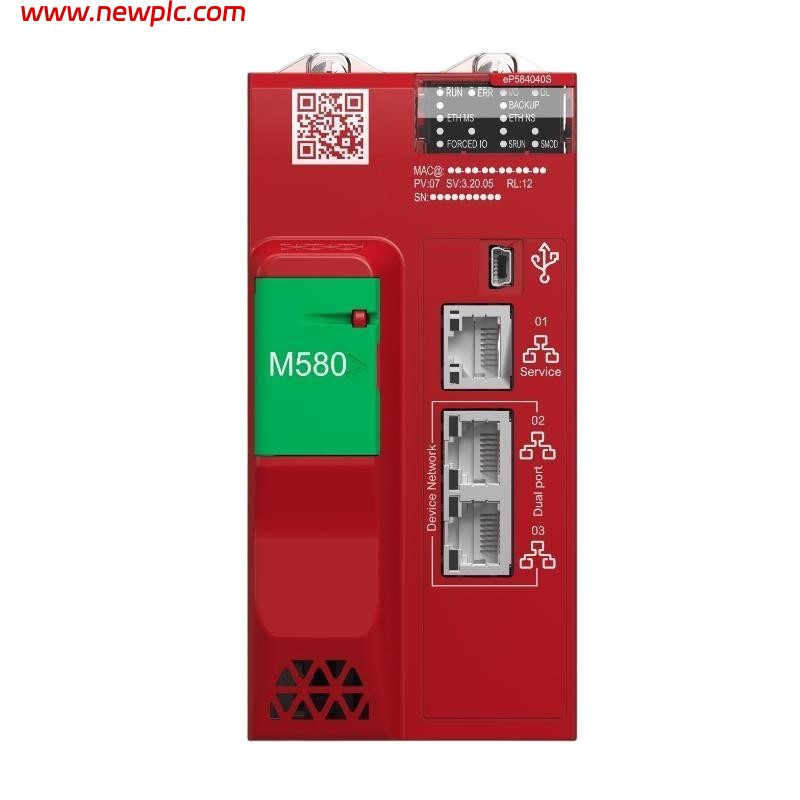

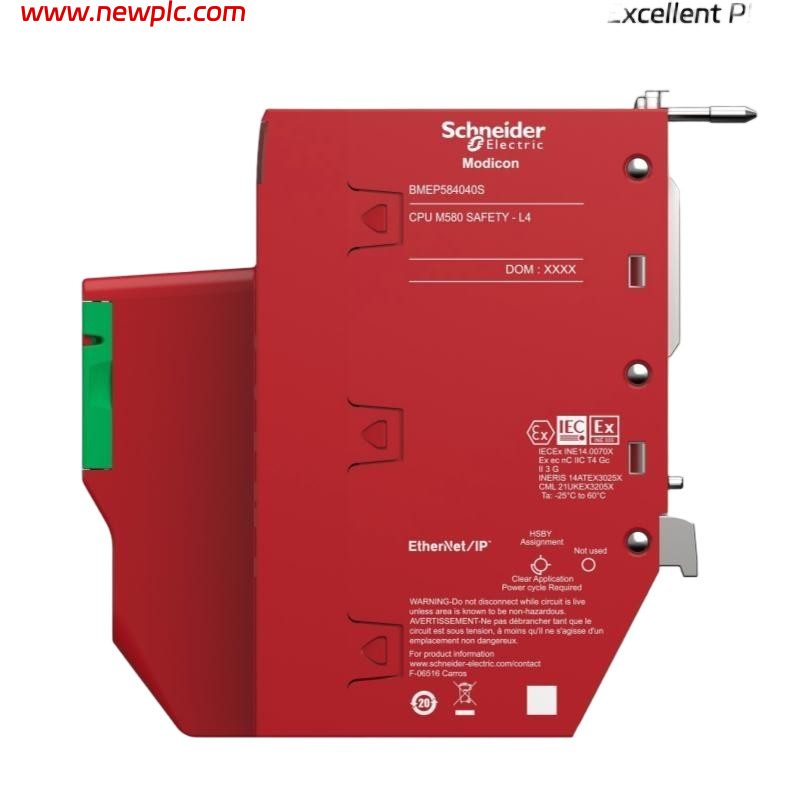

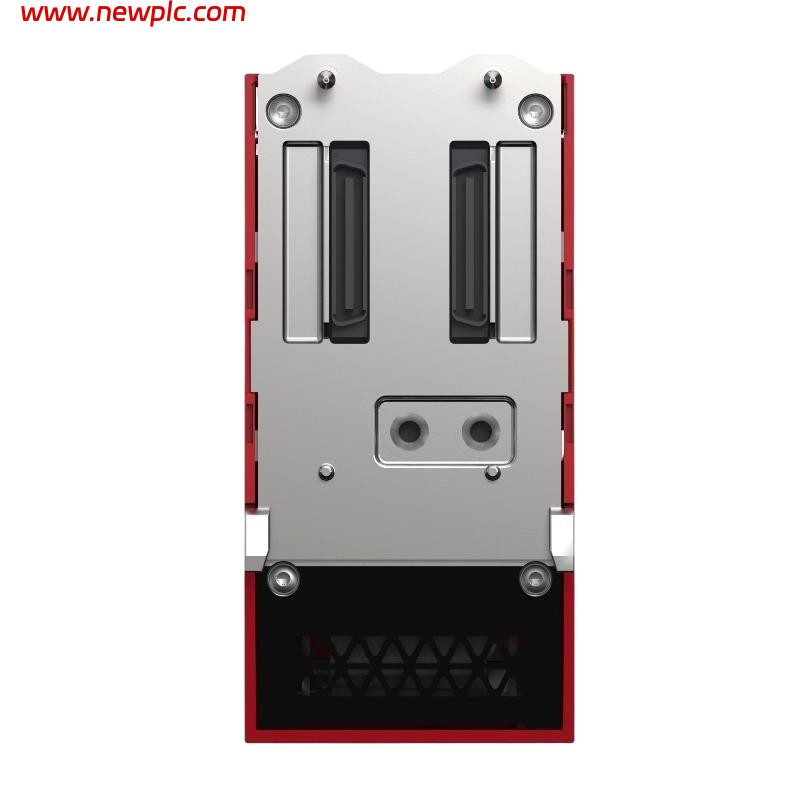

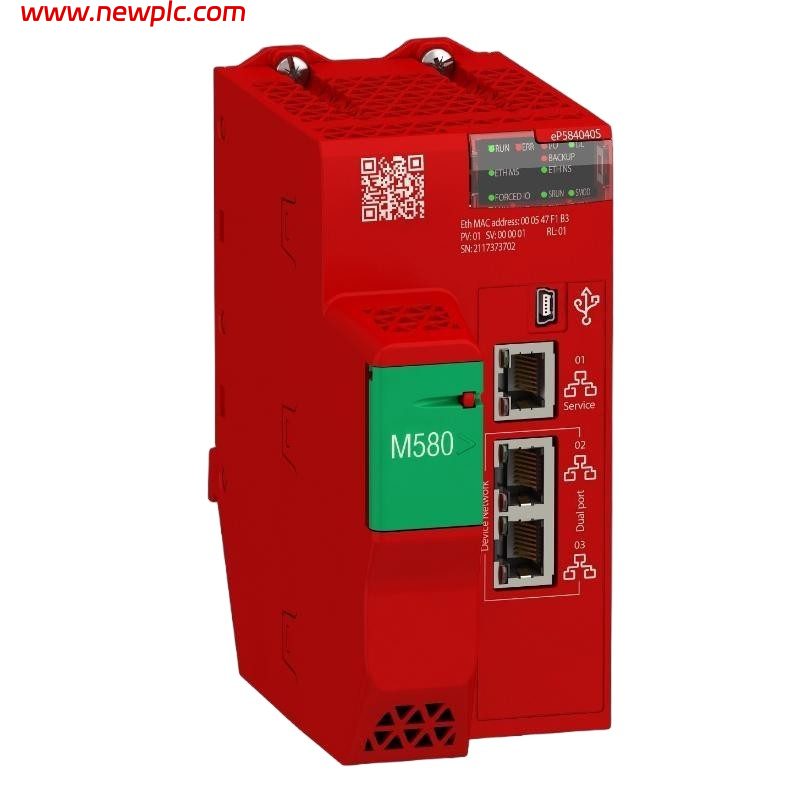

| Product Name | Schneider Electric BMEP584040 |
| Product Type | Processor Module (PLC / PAC CPU) |
| Product Series | Modicon M580 |
| CPU Level | Level 4 High Performance Processor |
| Architecture | Standalone modular ePAC processor |
| Application | Medium to large-scale process automation systems |
| Supply Voltage | 24 V DC |
| Current Consumption | ~295 mA at 24 V DC |
| Power Dissipation | ~7–8 W (typical system-dependent) |
| Program Memory | 16 MB RAM |
| Data Memory | 2048 kB RAM |
| System Memory | 10 kB RAM |
| Flash Memory | 4 GB expandable |
| Supported Local Racks | Up to 8 racks |
| Remote I/O Capacity | Up to 16 remote X80 drops |
| Distributed Devices | Up to 64 Ethernet devices |
| Digital I/O Capacity | Up to 4096 channels |
| Analog I/O Capacity | Up to 1024 channels |
| Application Functions | Motion control, HART, SSI encoder, counters, time stamping, process control |
| Task Structure | Fast task + master cyclic task + event tasks |
| Ethernet Ports | 1 service port + 2 device network ports |
| USB Port | 1 × USB Mini-B |
| Communication | Modbus TCP/IP, Ethernet-based device networks, DIO/RIO scanner |
| Processing Performance | Up to ~40 Kinst/ms (depending on logic mix) |
| MTBF | ~600,000 hours |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Mounting Type | Rack-mounted (Modicon M580 backplane) |
| Dimensions (W × H × D) | 64.6 × 134.6 × 130.3 mm |
| Weight | 0.849 kg |
| Country of Origin | France |
| Certifications | CE, UL, CSA, RCM, EAC |
FAQ
FAQ
Q1: What is the BMEP584040 used for?
It is a high-performance Modicon M580 processor used for complex industrial automation, process control, and large distributed control systems.
Q2: What is the difference between BMEP584040 and lower-level M580 CPUs?
The BMEP584040 offers higher processing performance, more supported racks, and larger I/O capacity compared to Level 2 or Level 3 M580 processors.
Q3: How many I/O points can it handle?
It supports up to 4096 digital I/O points and 1024 analog I/O points depending on system configuration.
Q4: How many remote racks are supported?
It can manage up to 16 remote X80 I/O drops.
Q5: What communication interfaces are available?
It includes 1 service Ethernet port, 2 device Ethernet ports, and 1 USB Mini-B port.
Q6: What is the memory capacity?
It provides 16 MB program memory, 2 MB data memory, 10 kB system memory, and 4 GB expandable flash storage.
Q7: Is the BMEP584040 suitable for large industrial plants?
Yes, it is designed for large-scale process industries such as oil & gas, power generation, water treatment, and chemical processing.
Q8: What are the physical dimensions and weight?
It measures 64.6 × 134.6 × 130.3 mm and weighs approximately 0.849 kg.
