Technical Specifications
| Item | Specification |
|---|---|

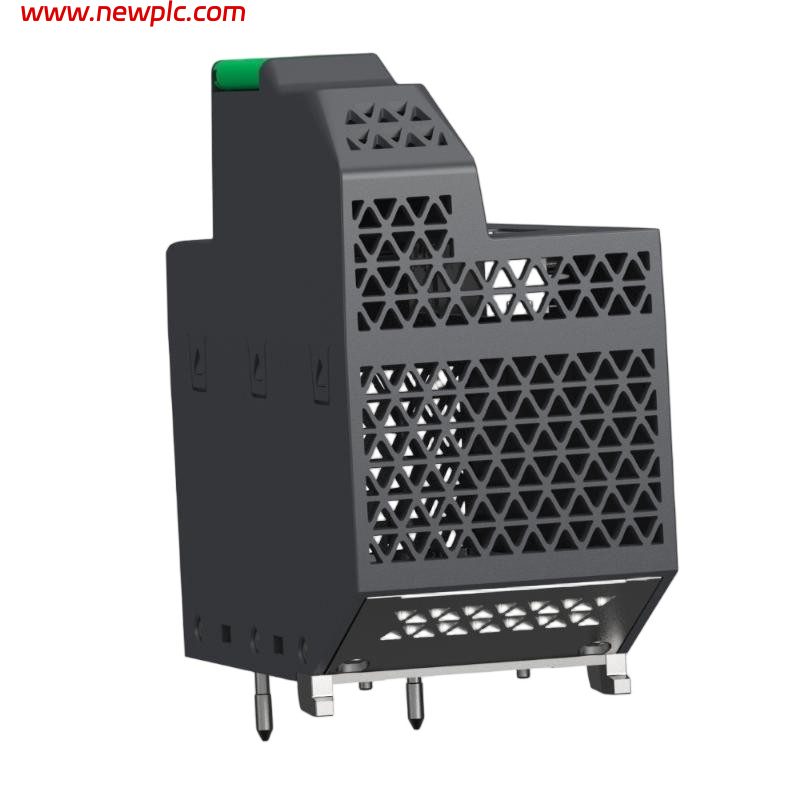

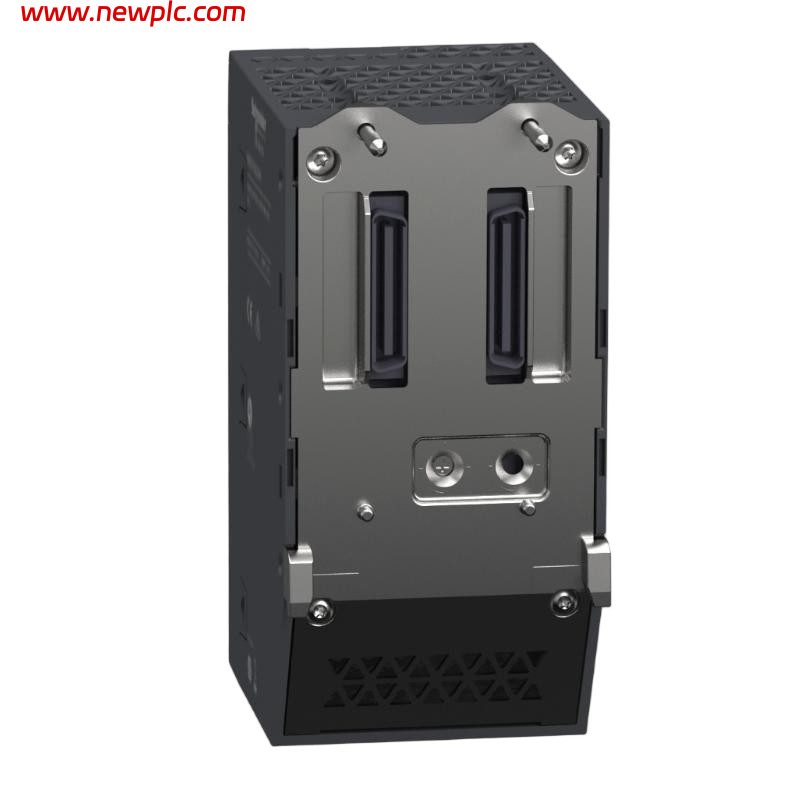

| Product Name | Schneider Electric BMEP581020H |
| Product Type | Processor Module (Harsh Environment CPU) |
| Product Series | Modicon M580 ePAC |
| Processor Level | Level 1 |
| Application | Distributed Automation for Harsh and Severe Environments |
| Supply Voltage | 24 V DC (via rack backplane) |
| Current Consumption | 270 mA at 24 V DC |
| Number of Local Racks | Up to 4 |
| Local Digital I/O Capacity | Up to 1024 I/O |
| Local Analog I/O Capacity | Up to 256 I/O |
| Distributed Equipment | Up to 64 Devices |
| Application-Specific Channels | 36 |
| Program Memory | 4 MB RAM |
| Data Memory | 384 kB RAM |
| System Memory | 10 kB RAM |
| Flash Memory | 4 GB Expandable |
| Processing Performance | 10 Kinst/ms (100% Boolean), 7.5 Kinst/ms (Mixed Logic) |
| Ethernet Ports | 1 Service Ethernet TCP/IP Port |
| Device Network Ports | 2 Ethernet TCP/IP Ports |
| Redundancy Port | 1 Ethernet HSBY Port |
| USB Port | 1 USB Mini-B |
| Communication Services | DIO Scanner |
| Supported Functions | Motion Control, HART, SSI Encoder, Counters, Accurate Time Stamping |
| Task Structure | 1 Master Task, 1 Fast Task, 64 Event Tasks, 2 Auxiliary Tasks |
| Protective Treatment | Conformal Coating |
| MTBF | 775,000 Hours |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Operating Altitude | 0–2000 m (up to 5000 m with derating) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX Zone 2/22, IECEx Zone 2/22 |
| Standards | IEC 61131-2, IEC 61010-2-201, EN/IEC 61850-3 |
| Country of Origin | France |
| Dimensions (W × H × D) | 64.6 × 134.6 × 130.3 mm |
| Weight | 0.849 kg |
FAQ
FAQ
Q1: What is the BMEP581020H used for?
The BMEP581020H is a harsh-environment processor module for Modicon M580 systems, designed for distributed control applications in industries such as water treatment, mining, transportation, power generation, and oil & gas.
Q2: What makes the BMEP581020H suitable for harsh environments?
The processor features conformal coating, extended operating temperatures from -25°C to +70°C, and certifications for hazardous locations, making it suitable for demanding industrial environments.
Q3: How many I/O points can the processor support?
It supports up to 1024 local discrete I/O points and 256 local analog I/O points, with support for up to 64 distributed devices.
Q4: What communication interfaces are available?

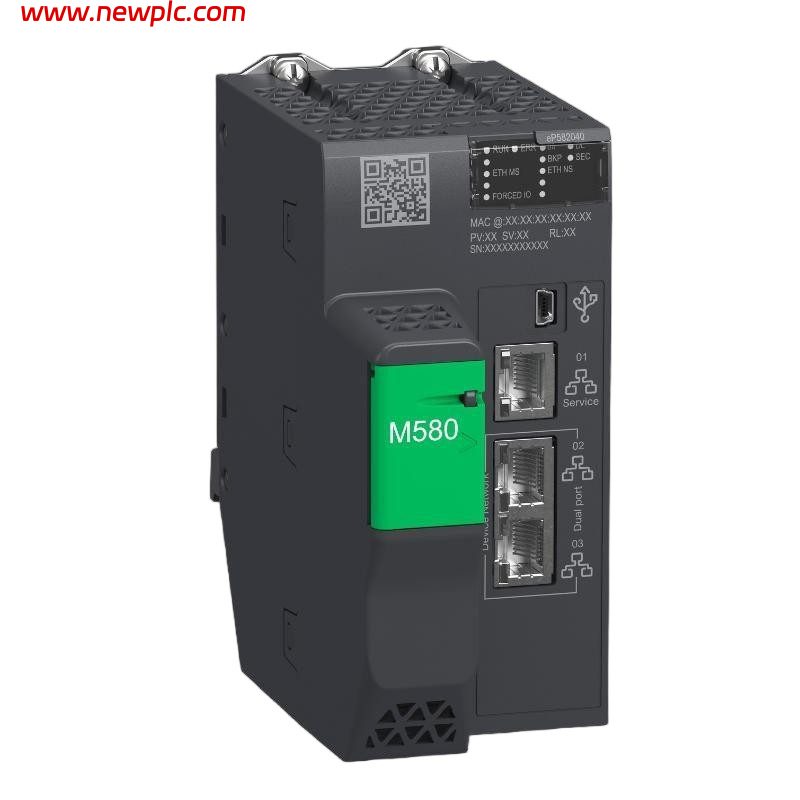

The module includes one Ethernet service port, two Ethernet device network ports, one Ethernet HSBY port, and one USB Mini-B programming port.
Q5: What memory resources are included?
The processor provides 4 MB program RAM, 384 kB data RAM, 10 kB system memory, and 4 GB expandable flash storage.
Q6: What are the dimensions and weight of the BMEP581020H?
The module measures approximately 64.6 × 134.6 × 130.3 mm and weighs 0.849 kg.
Q7: What performance level does the processor offer?
The BMEP581020H delivers up to 10 Kinst/ms for Boolean operations and supports advanced functions such as motion control, HART communication, SSI encoders, and precise time stamping.
Q8: Which certifications does the BMEP581020H hold?
The processor is certified to CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX Zone 2/22, and IECEx Zone 2/22 standards for industrial and hazardous-area applications.
