Technical Specifications
| Item | Specification |
|---|---|

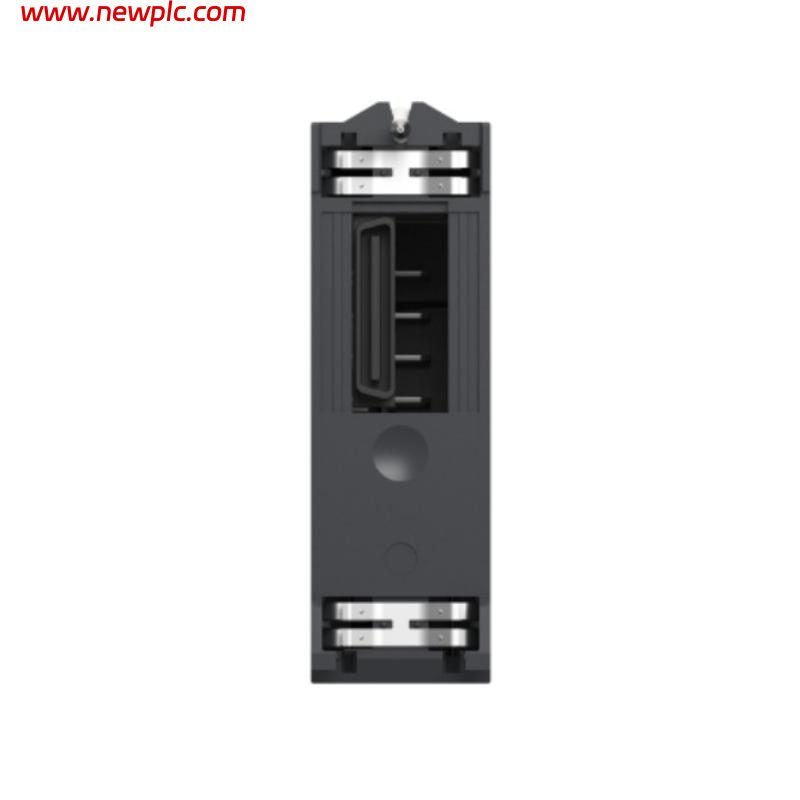

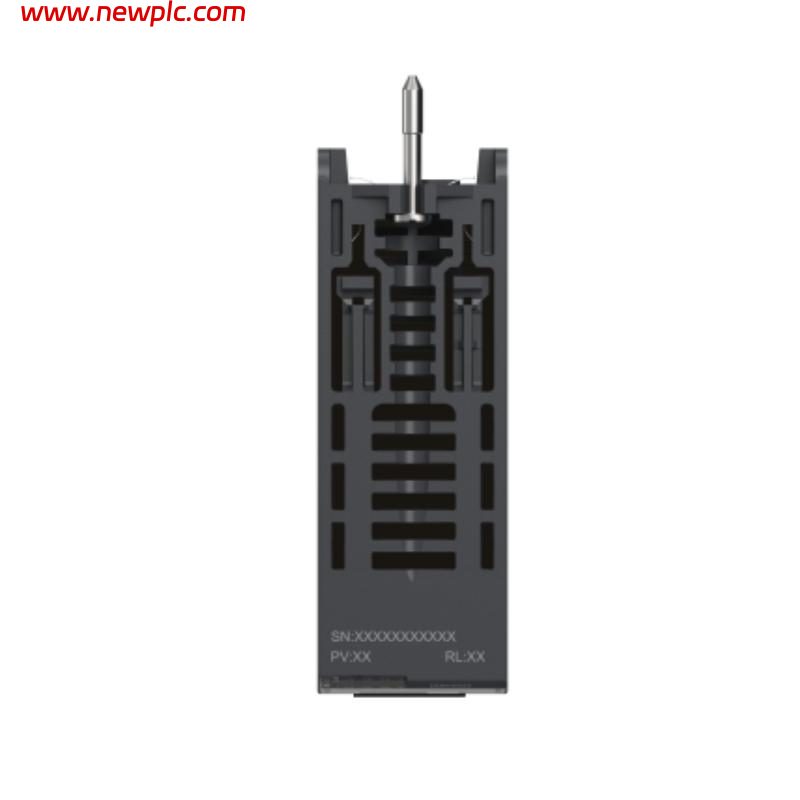

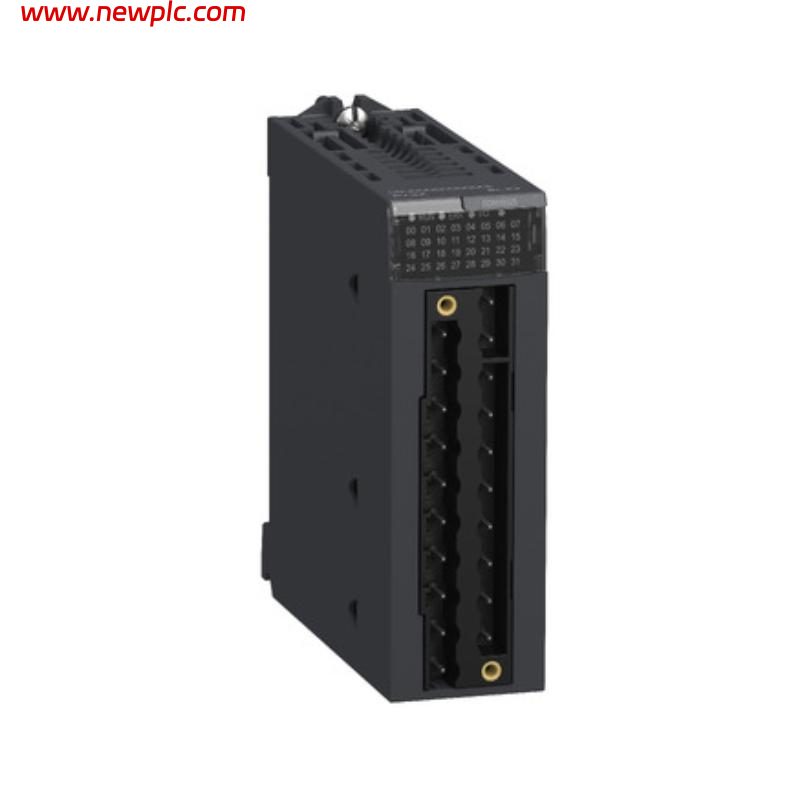

| Product Name | Schneider Electric BMXDDO3202KC |
| Product Type | Discrete Output Module |
| Product Series | Modicon X80 |
| Application | Severe/Harsh Industrial Environments |
| Number of Outputs | 32 Outputs |
| Output Type | Solid-State (Transistor) |
| Output Logic | Positive (Source Type) |
| Output Voltage | 24 V DC (19–30 V DC) |
| Nominal Output Current | 0.1 A per Output |
| Maximum Current per Channel | 0.125 A |
| Maximum Current per Module | 3.2 A |
| Leakage Current (OFF State) | 0.1 mA Maximum |
| Voltage Drop (ON State) | < 1.5 V |
| Response Time | 1.2 ms |
| Output Paralleling | Up to 3 Outputs |
| Load Impedance | ≥ 220 Ω |
| Maximum Tungsten Load | 1.2 W |
| Switching Frequency | 0.5 / LI² Hz |
| Maximum Overload Time | 15 ms |
| Current Consumption | 125 mA at 3.3 V DC |
| Power Dissipation | 3.6 W |
| Insulation Resistance | > 10 MΩ at 500 V DC |
| Dielectric Strength | 1500 V AC (Output/Ground), 1500 V AC (Output/Internal Logic) |
| Protection Features | Reverse Polarity, Overload, Overvoltage, Short-Circuit Protection |
| Overload Protection | Electronic Circuit Breaker with Current Limiter |
| Overvoltage Protection | Transil Diode |
| Short-Circuit Protection | External 2 A Fuse |
| Reverse Polarity Protection | Reverse-Mounted Diode |
| Voltage Detection Threshold | < 14 V DC Fault Detection, > 18 V DC Normal State |
| MTBF | 290,000 Hours |
| Status Indicators | RUN, ERR, I/O, and Individual Channel LEDs |
| Protection Rating | IP20 |
| Protective Treatment | Conformal Coating |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Operating Altitude | 0–2000 m (5000 m with Derating) |
| Electrical Connection | 1 × 40-Pin FCN Connector |
| Certifications | CE, IEC, UL (Region Dependent) |
| Country of Origin | France |
| Dimensions (W × H × D) | 32 × 100 × 86 mm |
| Weight | 0.11 kg |
FAQ
FAQ
Q1: What is the BMXDDO3202KC used for?
The BMXDDO3202KC is a 32-channel discrete output module used to control field devices such as relays, contactors, solenoid valves, indicator lights, and actuators in Modicon X80 automation systems.
Q2: How many outputs does the module provide?
The module provides 32 solid-state transistor outputs compliant with EN/IEC 61131-2 standards.
Q3: What output voltage does the BMXDDO3202KC support?
It operates with a nominal output voltage of 24 V DC and supports an operating range of 19–30 V DC.
Q4: Is the module designed for harsh industrial environments?
Yes. The “KC” version includes conformal coating and is specifically designed for severe environments where dust, humidity, corrosive gases, or vibration may be present.
Q5: What protection features are built into the module?
The module includes reverse polarity protection, overload protection, overvoltage protection, short-circuit protection, current limiting, and electronic circuit breaker functionality.
Q6: What are the dimensions and weight of the BMXDDO3202KC?
The module measures approximately 32 × 100 × 86 mm and weighs about 0.11 kg, making it compact and easy to install within Modicon X80 racks.
Q7: How can users monitor module status?
The front panel includes RUN, ERR, I/O, and individual channel diagnostic LEDs, allowing operators to quickly identify operating conditions and output faults.
Q8: Which PLC platforms are compatible with the BMXDDO3202KC?
The module is part of the Modicon X80 family and is commonly used with Modicon M340, M580, and other X80-based automation architectures.
