Technical Specifications
| Item | Specification |
|---|---|

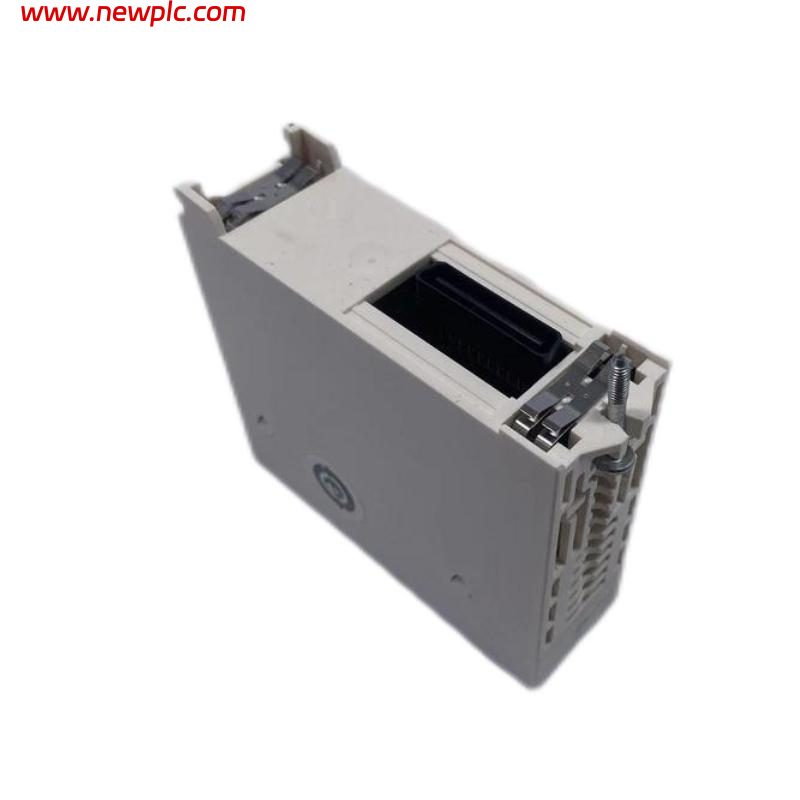

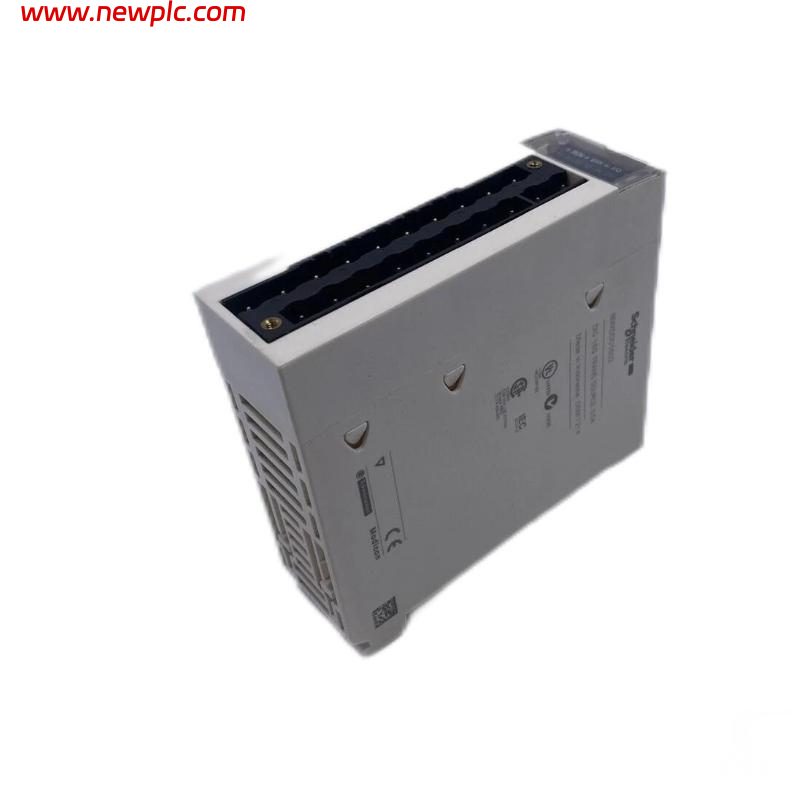

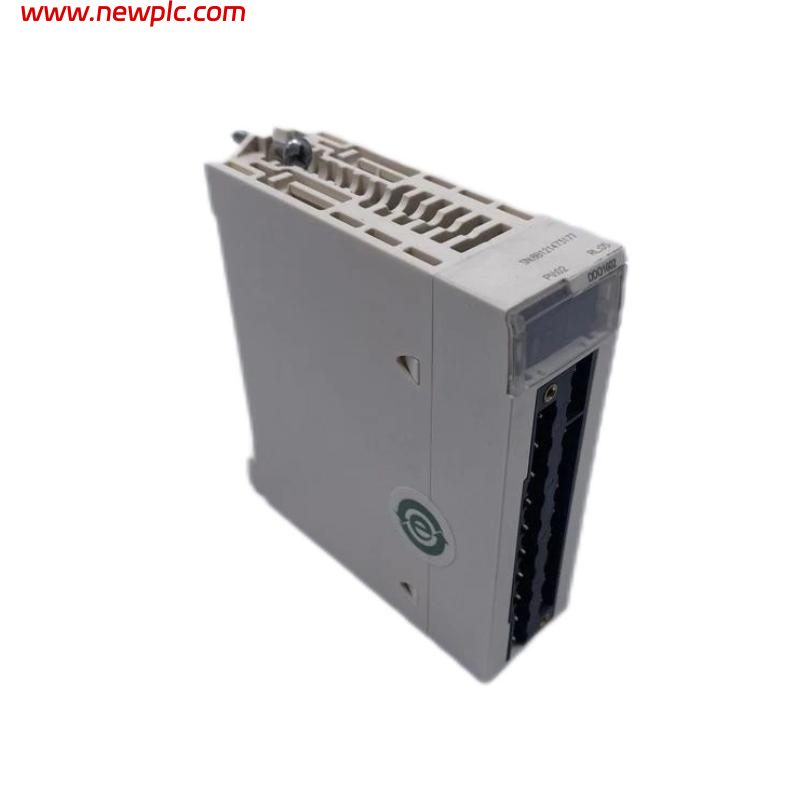

| Product Name | Schneider Electric BMXDDO1602H |
| Product Type | Discrete Output Module |
| Product Series | Modicon X80 |
| Application | Severe / Harsh Industrial Environments |
| Number of Outputs | 16 Outputs |
| Output Type | Solid-State (Transistor) |
| Output Logic | Positive (Source Type) |
| Output Voltage | 24 V DC (19–30 V DC) |
| Nominal Output Current | 0.5 A per Output |
| Maximum Current per Channel | 0.625 A |
| Maximum Current per Module | 10 A |
| Output Compatibility | IEC 61131-2 Type 3 DC Input |
| Leakage Current (OFF State) | ≤ 0.5 mA |
| Residual Voltage (ON State) | ≤ 1.2 V |
| Response Time | 1.2 ms |
| Output Paralleling | Up to 2 Outputs |
| Load Impedance | > 48 Ω |
| Maximum Tungsten Load | 6 W |
| Switching Frequency | 0.5 / LI² Hz |
| Current Consumption | 79 mA at 3.3 V DC |
| Power Dissipation | ≤ 4 W |
| Insulation Resistance | > 10 MΩ at 500 V DC |
| Dielectric Strength | 1500 V AC (Output/Ground), 1500 V AC (Output/Internal Logic) |
| Protection Features | Reverse Polarity, Overload, Overvoltage, Short-Circuit Protection |
| Output Overload Protection | Electronic Circuit Breaker and Current Limiter |
| Output Overvoltage Protection | Transil Diode |
| Output Short-Circuit Protection | External 2 A Fuse |
| Voltage Detection Threshold | <14 V DC Fault Detection, >18 V DC Normal State |
| MTBF | 392,285 Hours |
| Status Indicators | RUN, ERR, I/O, and Individual Channel Diagnostic LEDs |
| Protection Rating | IP20 |
| Protective Treatment | Conformal Coating |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Operating Altitude | 0–2000 m (5000 m with Derating) |
| Electrical Connection | 20-Point Removable Terminal Block |
| Certifications | CE, UL, CSA, ATEX, IECEx, EAC, RCM, Merchant Navy |
| Country of Origin | Indonesia |
| Dimensions (W × H × D) | 32 × 100 × 86 mm |
| Weight | 0.12 kg |
FAQ
FAQ
Q1: What is the BMXDDO1602H used for?
The BMXDDO1602H is a 16-channel digital output module used to control field devices such as relays, contactors, solenoid valves, indicators, and actuators in industrial automation systems.
Q2: How many outputs does the module provide?
The module provides 16 transistor-based discrete outputs with positive logic operation.
Q3: What output voltage and current does the BMXDDO1602H support?
It operates at 24 V DC and provides a nominal output current of 0.5 A per channel, with a maximum of 0.625 A per output.
Q4: What makes the BMXDDO1602H suitable for harsh environments?
The module features conformal coating, resistance to corrosive gases, dust, humidity, vibration, and an extended operating temperature range of -25°C to +70°C.
Q5: What protection features are included?
The module includes reverse polarity protection, overload protection, overvoltage protection, short-circuit protection, current limiting, and an integrated electronic circuit breaker.
Q6: What are the dimensions and weight of the BMXDDO1602H?
The module measures approximately 32 × 100 × 86 mm and weighs about 0.12 kg.

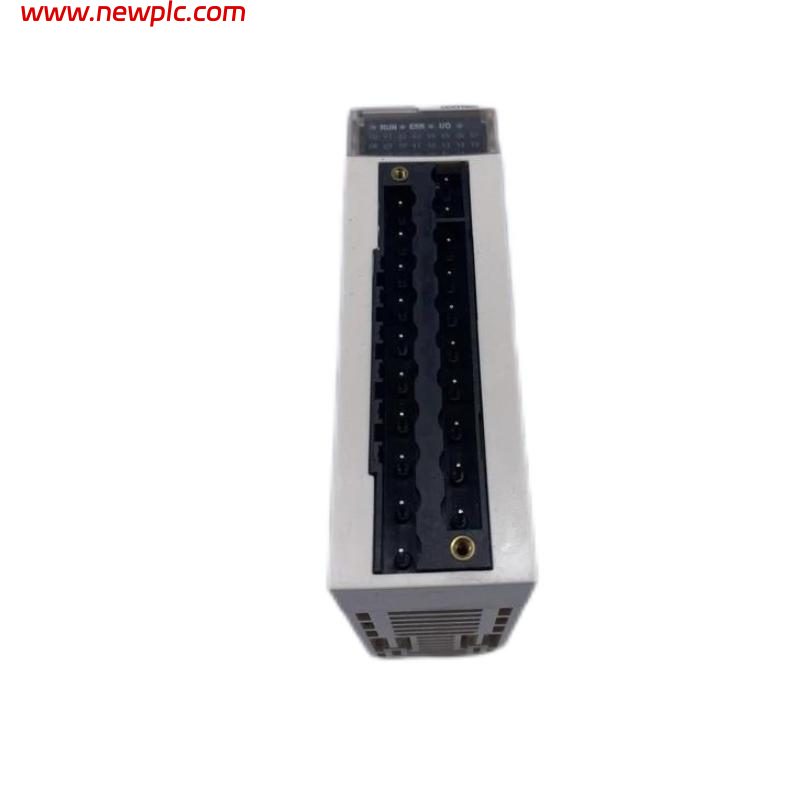

Q7: How can users monitor module status?
The front panel includes RUN, ERR, I/O, and individual channel diagnostic LEDs, allowing quick identification of operating conditions and faults.
Q8: Which Schneider Electric platforms support the BMXDDO1602H?
The BMXDDO1602H belongs to the Modicon X80 family and is compatible with Modicon M340 and Modicon M580 programmable automation controllers.
