Technical Specifications
| Item | Specification |
|---|---|

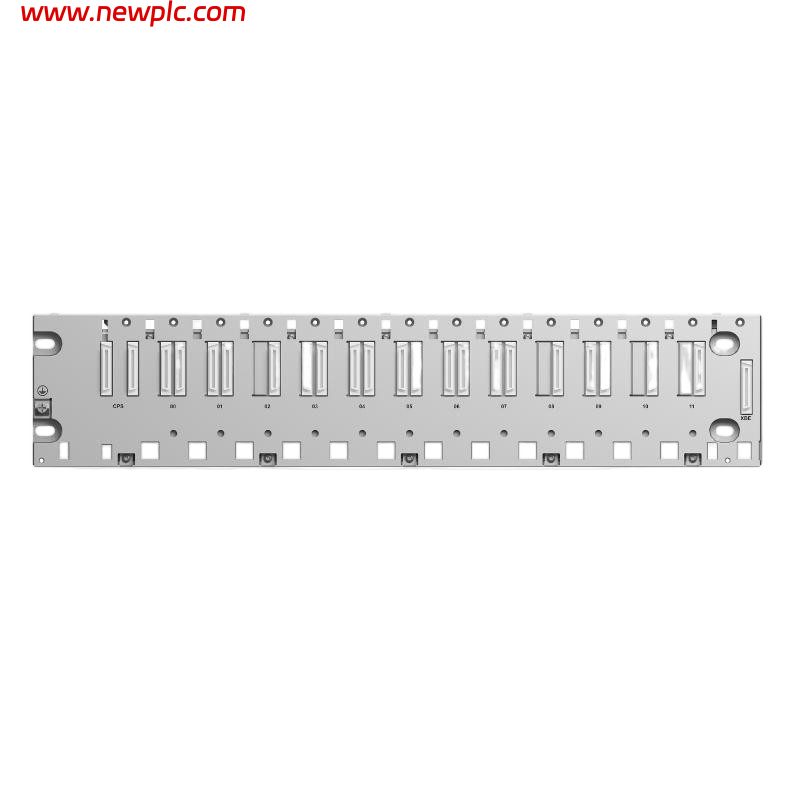

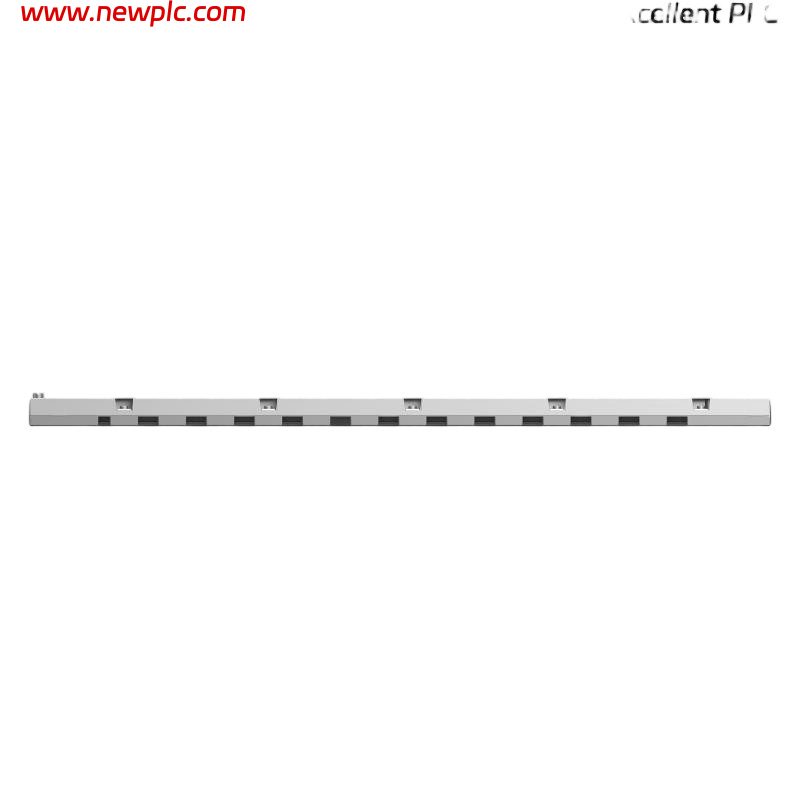

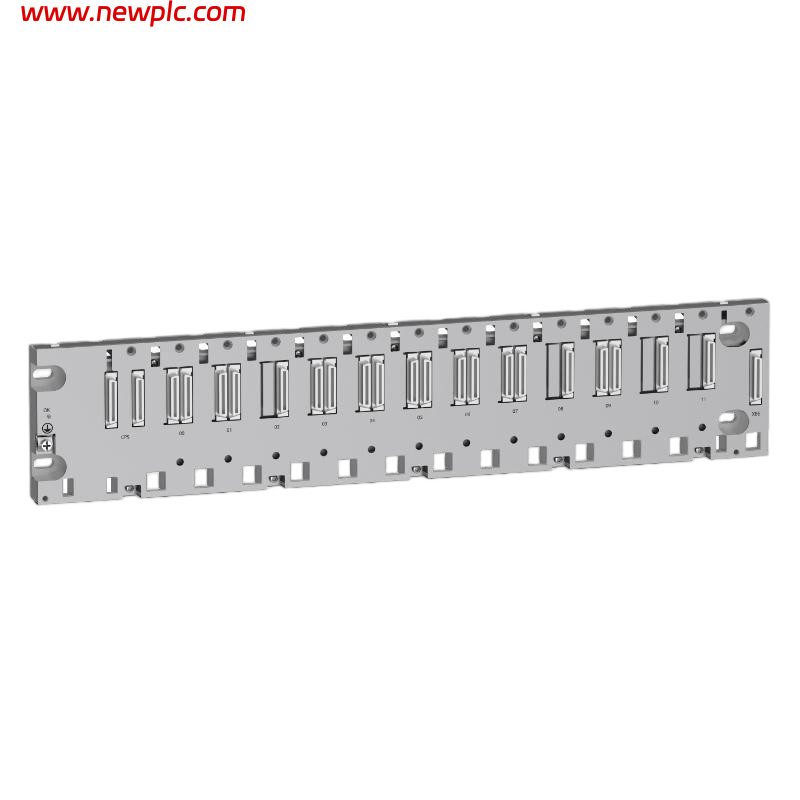

| Product Name | Schneider Electric BMEXBP1200H |
| Product Type | Ethernet + X-bus Rack Backplane |
| Product Series | Modicon X80 |
| Rack Type | Harsh Environment Backplane |
| Number of Slots | 12 Slots |
| Slot Allocation | 1 Power Supply Slot + 11 Module Slots |
| Compatible Modules | Modicon X80 I/O Modules, M340 Processors, M580 Processors, Communication Modules |
| Integrated Bus | X Bus and Ethernet Backplane |
| Mounting Type | Panel Mount |
| Protective Treatment | Conformal Coating |
| Application | Severe and Harsh Industrial Environments |
| Power Distribution | Via Backplane Bus |
| Electrical Connection | Integrated Backplane Connectors |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Shock Resistance | 30 gn |
| Vibration Resistance | 3 gn |
| Protection Rating | IP20 |
| Operating Altitude | 0–2000 m (5000 m with Derating) |
| Electromagnetic Compatibility | IEC 61131-2 Compliant |
| Certifications | CE, UL, CSA, ATEX Zone 2, IECEx Zone 2, EAC, RCM, Merchant Navy |
| Compatibility | Modicon M340, Modicon M580, Modicon X80 I/O Platforms |
| Country of Origin | France |
| Dimensions (W × H × D) | 660 × 145 × 35 mm |
| Weight | 1.15 kg |
FAQ
FAQ
Q1: What is the BMEXBP1200H used for?
The BMEXBP1200H serves as the main backplane rack for Modicon X80 automation systems, providing power distribution and communication pathways between processors, I/O modules, and communication modules.
Q2: How many modules can the BMEXBP1200H accommodate?
The rack provides 12 slots in total, including one slot for the power supply and eleven slots for processors, I/O modules, or communication modules.
Q3: Which Schneider Electric platforms are compatible with this backplane?
The BMEXBP1200H is compatible with Modicon M340 controllers, Modicon M580 ePAC processors, and the complete Modicon X80 I/O family.
Q4: What does the “H” designation mean in the model number?
The “H” indicates a harsh-environment version featuring conformal coating and extended environmental specifications for operation in demanding industrial conditions.
Q5: Does the BMEXBP1200H include integrated Ethernet functionality?
Yes. The rack incorporates both the X Bus and Ethernet backplane architecture required by Modicon M580 and advanced X80 system configurations.
Q6: What are the dimensions and weight of the BMEXBP1200H?
The backplane measures approximately 660 × 145 × 35 mm and weighs about 1.15 kg.
Q7: What environmental conditions can the rack withstand?
It is designed to operate between -25°C and +70°C, with resistance to vibration, shock, humidity, and corrosive environments commonly found in process industries.
Q8: In which industries is the BMEXBP1200H commonly deployed?
The backplane is widely used in oil and gas, water and wastewater treatment, power generation, mining, chemical processing, transportation, and other critical industrial automation applications.
