Technical Specifications
| Item | Specification |
|---|---|

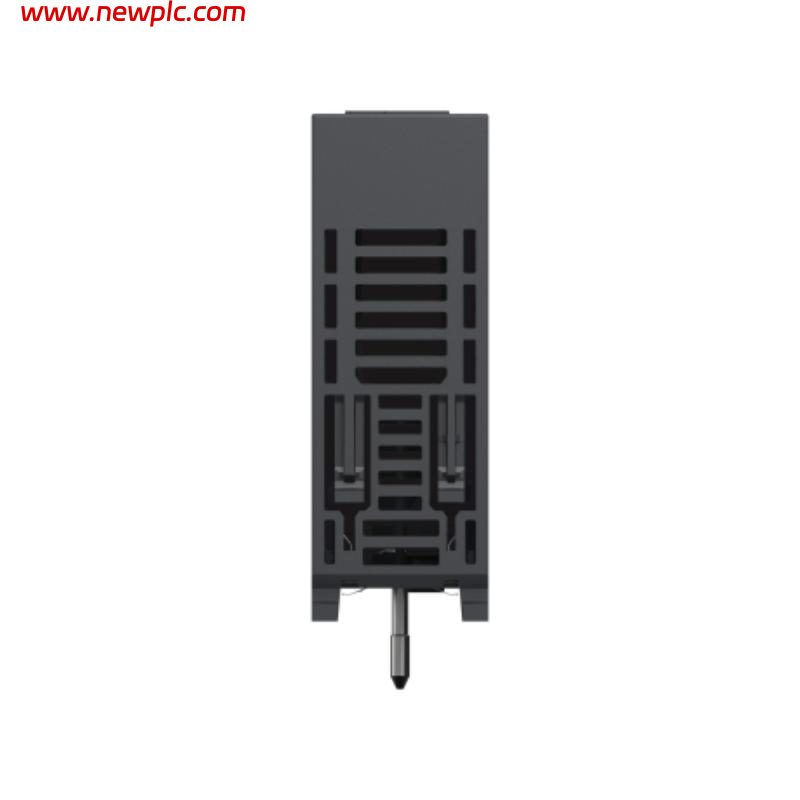

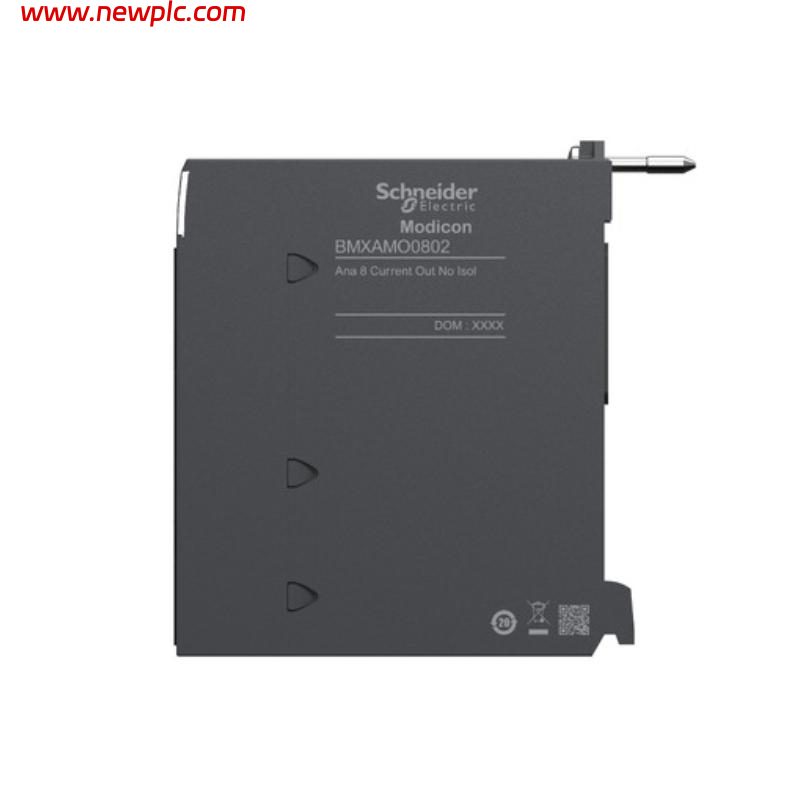

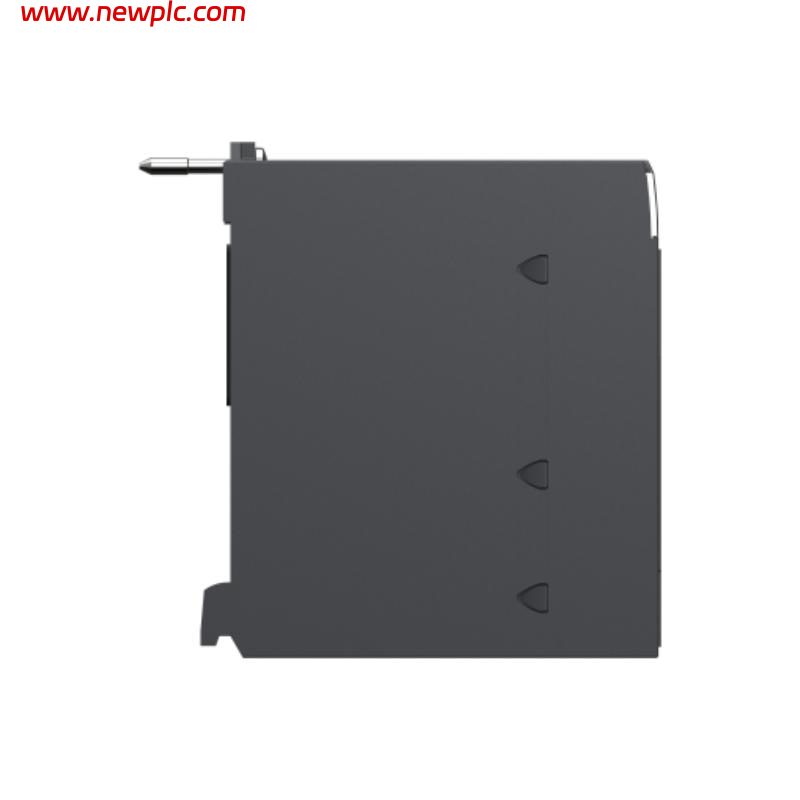

| Product Name | Schneider Electric BMXAMO0802H |
| Product Type | Analog Output Module |
| Product Series | Modicon X80 |
| Application | Severe / Harsh Industrial Environments |
| Number of Outputs | 8 Analog Outputs |
| Output Type | Current Output |
| Output Ranges | 0–20 mA, 4–20 mA |
| Output Resolution | 16-bit |
| Conversion Time | ≤ 4 ms |
| Maximum Output Value | 0–21 mA |
| Channel Isolation | Non-Isolated |
| Isolation Voltage | 1400 V DC (Channel-to-Ground), 1400 V DC (Channel-to-Bus) |
| Measurement Accuracy | ±0.1% FS at 25°C, ±0.45% FS from -25°C to +70°C |
| Temperature Drift | 45 ppm/°C |
| Common Mode Rejection | 80 dB |
| Crosstalk Attenuation | 80 dB |
| Load Impedance | ≤ 350 Ω |
| Fault Detection | Open Circuit Detection (4–20 mA), Short-Circuit Detection (0–20 mA) |
| Fallback Mode | Configurable / Predefined |
| Power Supply | Internal via X80 Rack |
| Current Consumption | 150 mA at 3.3 V DC, 135 mA at 24 V DC |
| Power Dissipation | 3.6 W Typical, 3.9 W Maximum |
| MTBF | 1,500,000 Hours |
| Status Indicators | RUN, ERR, I/O, and Individual Channel Diagnostic LEDs |
| Electrical Connection | 20-Way Connector |
| Protective Treatment | Conformal Coating |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Operating Altitude | 0–2000 m (Up to 5000 m with Derating) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Certifications | CE, UL, CSA, IECEx, ATEX, EAC, RCM, Merchant Navy |
| Compatibility | Modicon M340, Modicon M580, Modicon X80 Platforms |
| Country of Origin | France |
| Dimensions (W × H × D) | 32 × 100 × 86 mm |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the BMXAMO0802H used for?
The BMXAMO0802H is an analog output module used to send precise 0–20 mA or 4–20 mA control signals to field devices such as control valves, actuators, variable speed drives, and process instrumentation.
Q2: How many analog outputs does the module provide?
The module provides eight independent analog current output channels for industrial process control applications.
Q3: What output signal ranges are supported?
Each channel can be configured for either 0–20 mA or 4–20 mA current output operation.
Q4: Is the BMXAMO0802H suitable for harsh environments?
Yes. The module features conformal coating, an extended operating temperature range from -25°C to +70°C, and certifications for demanding industrial environments.
Q5: What diagnostic functions are available?
The module supports open-circuit detection for 4–20 mA outputs, short-circuit detection for 0–20 mA outputs, and includes diagnostic LEDs for module and channel status monitoring.
Q6: What are the dimensions and weight of the BMXAMO0802H?
The module measures 32 × 100 × 86 mm and weighs approximately 0.15 kg.
Q7: Which Schneider Electric platforms support this module?
The BMXAMO0802H is compatible with Modicon X80 architectures, including Modicon M340 and Modicon M580 automation systems.
Q8: What level of output accuracy does the module provide?
The module delivers ±0.1% full-scale accuracy at 25°C and maintains a maximum error of ±0.45% full scale across its extended operating temperature range.
