Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Schneider Electric BMEP58CPROS3 |
| Product Type | Safety CoProcessor Module |
| Product Series | Modicon M580 Safety |
| Safety Level | SIL 3, PL e |
| Supply Method | Internal Power Supply via Rack |
| Current Consumption | 295 mA at 24 V DC |
| MTBF Reliability | 946,000 Hours |
| Protection Rating | IP20 |
| Protective Treatment | Conformal Coating |
| Status Indicators | RUN, ERR, DL, SRUN, SMOD LEDs |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Operating Altitude | 0–2000 m (up to 5000 m with derating) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 15 gn |
| Certifications | CE, UL, CSA, RCM, EAC, UKCA, ATEX Zone 2/22, IECEx Zone 2/22, TÜV |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, EN/IEC 61850-3 |
| Compatibility | Modicon M580 Safety Processors |
| Installation | Mounted Adjacent to M580 Safety CPU |
| Dimensions (W × H × D) | 64 × 130 × 135 mm |
| Weight | 0.849 kg |
| Country of Origin | France |
FAQ
FAQ
Q1: What is the BMEP58CPROS3 used for?
The BMEP58CPROS3 is a standalone Safety CoProcessor designed for Modicon M580 Safety systems. It enables the execution of safety-related functions while supporting SIL 3 safety applications.
Q2: Does the BMEP58CPROS3 operate as a standalone PLC CPU?
No. The module is a safety coprocessor and must be used together with a compatible Modicon M580 Safety processor. It is not intended to function as an independent CPU.
Q3: What safety certifications does the module support?
The BMEP58CPROS3 is certified for SIL 3 and PL e applications and complies with multiple international safety and industrial standards.
Q4: What are the dimensions and weight of the BMEP58CPROS3?
The module measures 64 × 130 × 135 mm and weighs approximately 0.849 kg, making it suitable for installation in standard Modicon M580 racks.
Q5: What environmental conditions can the module withstand?
It operates in temperatures ranging from -25°C to +60°C and can be stored between -40°C and +85°C. The module is also designed to tolerate vibration, shock, dust, and industrial contaminants.
Q6: How reliable is the BMEP58CPROS3?
The module offers an MTBF rating of approximately 946,000 hours, providing long-term reliability for critical industrial automation systems.
Q7: What status indicators are available on the module?

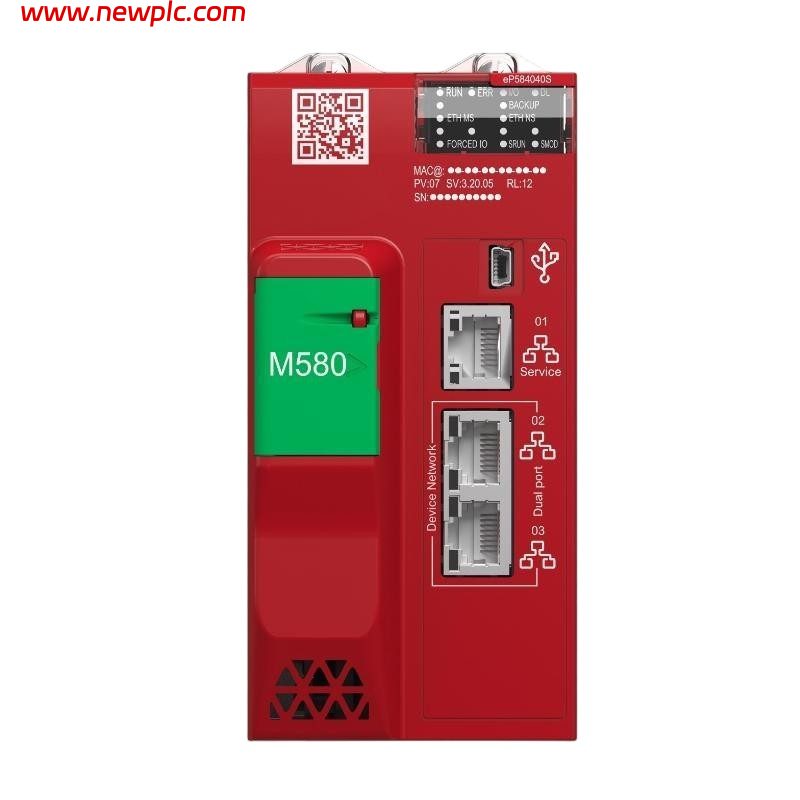

The front panel includes LEDs for RUN, ERR, DL, SRUN, and SMOD, allowing operators to quickly monitor operating and safety status.
Q8: Which industries commonly use the BMEP58CPROS3?
The module is widely deployed in power generation, oil and gas, water treatment, transportation, mining, chemical processing, and other safety-critical industrial applications.
