Technical Specifications
| Item | Specification |
|---|---|

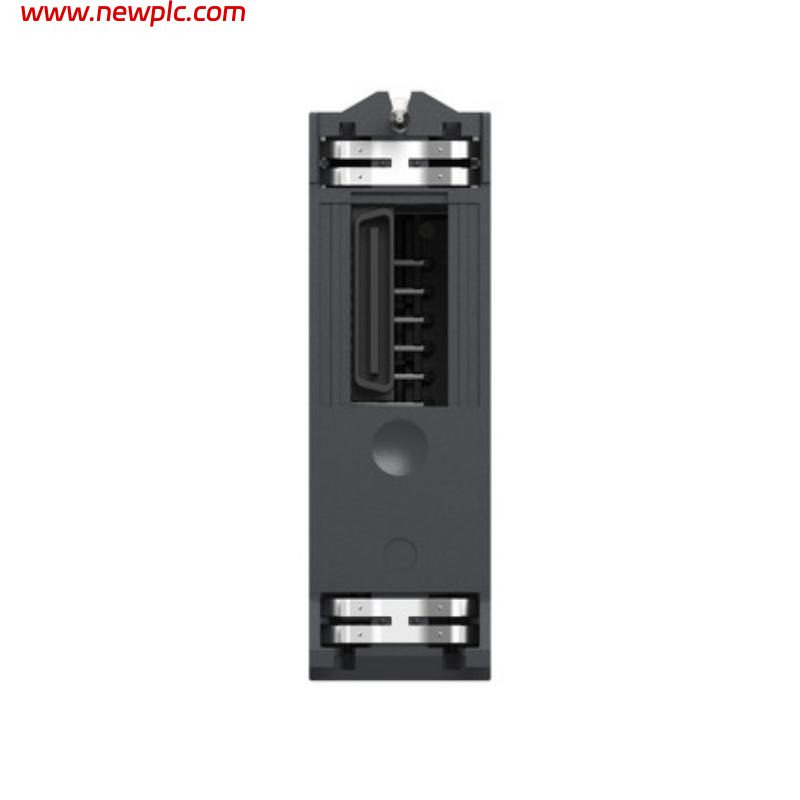

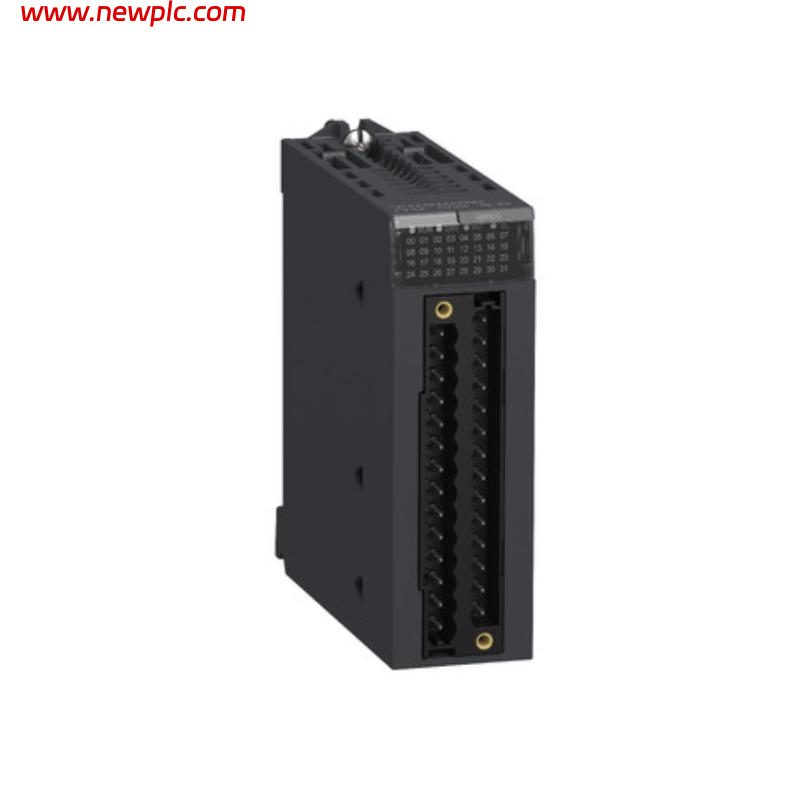

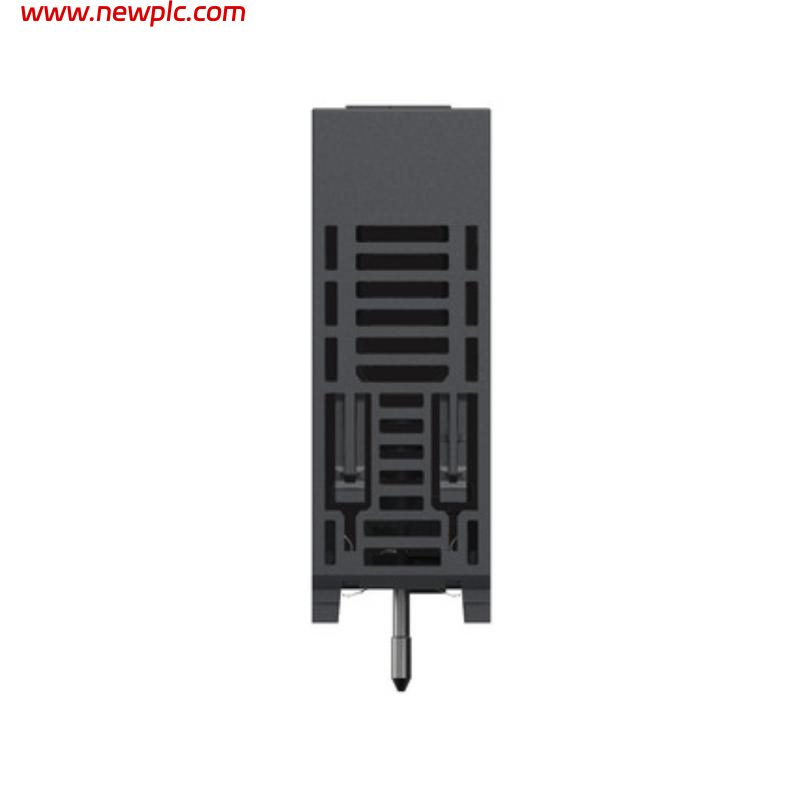

| Product Name | Schneider Electric BMXAMI0800 |
| Product Type | Analog Input Module |
| Product Series | Modicon X80 |
| Input Channels | 8 Analog Inputs |
| Input Isolation | Non-Isolated |
| Input Level | High Level |
| Supported Current Inputs | ±20 mA, 0–20 mA, 4–20 mA |
| Supported Voltage Inputs | ±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V |
| Analog-to-Digital Conversion | 16-bit |
| Analog Input Resolution | 15-bit + Sign |
| Input Impedance | 10 MΩ (Voltage Inputs) |
| Internal Conversion Resistor | 250 Ω |
| Measurement Resolution | 0.36 mV (Voltage), 1.4 µA (Current) |
| Fast Read Cycle Time | 1 ms + 1 ms per Channel Used |
| Nominal Read Cycle Time | 9 ms for 8 Channels |
| Measurement Accuracy | ≤0.1% FS (Voltage), ≤0.3% FS (Current) |
| Temperature Drift | 30–50 ppm/°C |
| Channel-to-Channel Isolation | 50 V DC |
| Channel-to-Ground Isolation | 1400 V DC |
| Channel-to-Bus Isolation | 1400 V DC |
| Current Consumption | 150 mA at 3.3 V DC; 30 mA at 24 V DC |
| Power Consumption | 0.9 W Typical, 1.1 W Maximum |
| Status Indicators | RUN, ERR, I/O, Channel Diagnostic LEDs |
| Electrical Connection | 28-Way Connector |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Operating Altitude | 0–2000 m (up to 5000 m with derating) |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Dimensions (W × H × D) | 32 × 100 × 150 mm |
| Weight | 0.165 kg |
| Country of Origin | France |
FAQ
FAQ
Q1: What is the BMXAMI0800 used for?
The BMXAMI0800 is an 8-channel analog input module used to acquire voltage and current signals from field devices such as transmitters, sensors, and process instruments in industrial automation systems.
Q2: Which input signal types are supported?
The module supports multiple voltage ranges (±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V) and current ranges (±20 mA, 0–20 mA, 4–20 mA), allowing it to interface with a wide variety of field devices.
Q3: How many analog channels are available?
The BMXAMI0800 provides eight configurable high-level analog input channels within a single module.
Q4: What measurement accuracy does the module provide?
The module delivers up to 16-bit conversion with voltage measurement accuracy as high as ±0.1% of full scale and current measurement accuracy up to ±0.3% of full scale.
Q5: Is the BMXAMI0800 an isolated analog module?
No. The BMXAMI0800 is a non-isolated analog input module. It is designed for applications where channel isolation is not required.
Q6: What are the dimensions and weight of the BMXAMI0800?
The module measures approximately 32 × 100 × 150 mm and weighs about 0.165 kg, making it suitable for installation in standard Modicon X80 racks.
Q7: Which Schneider Electric platforms support this module?
The BMXAMI0800 is part of the Modicon X80 family and is commonly used with Modicon M340 and Modicon M580 programmable automation controllers.
Q8: How can users monitor module status?
The module includes front-panel LEDs for RUN status, error indication, I/O diagnostics, and individual channel diagnostics, enabling quick troubleshooting and maintenance.
