Technical Specifications
| Parameter | Description |
|---|---|

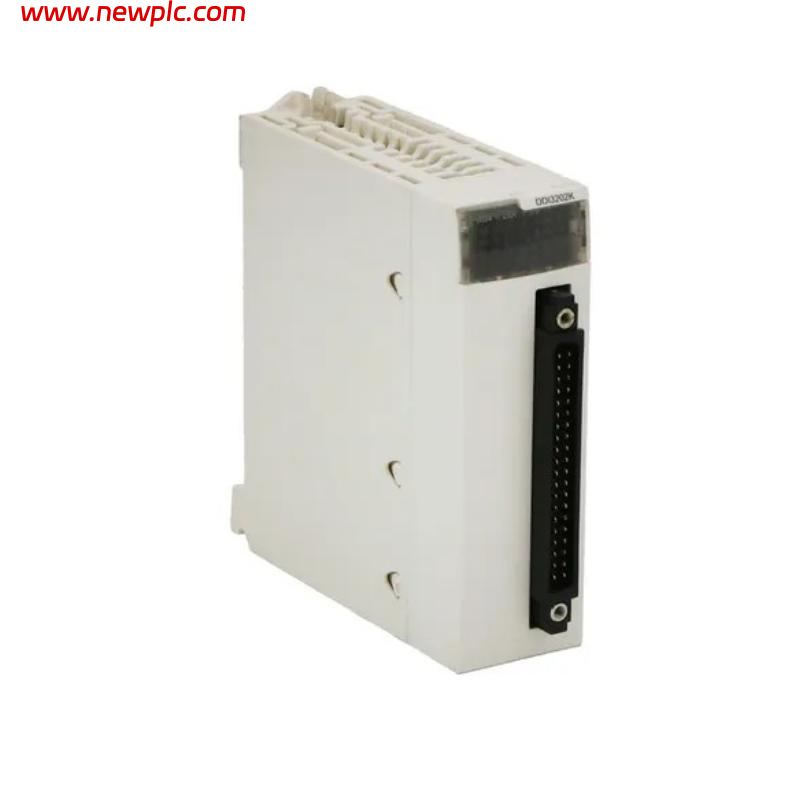

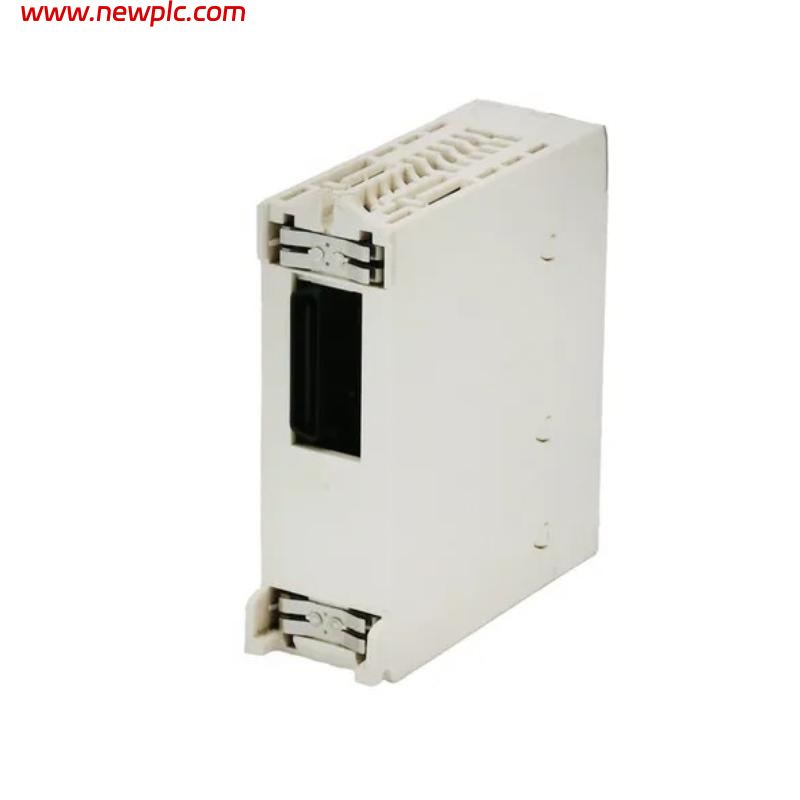

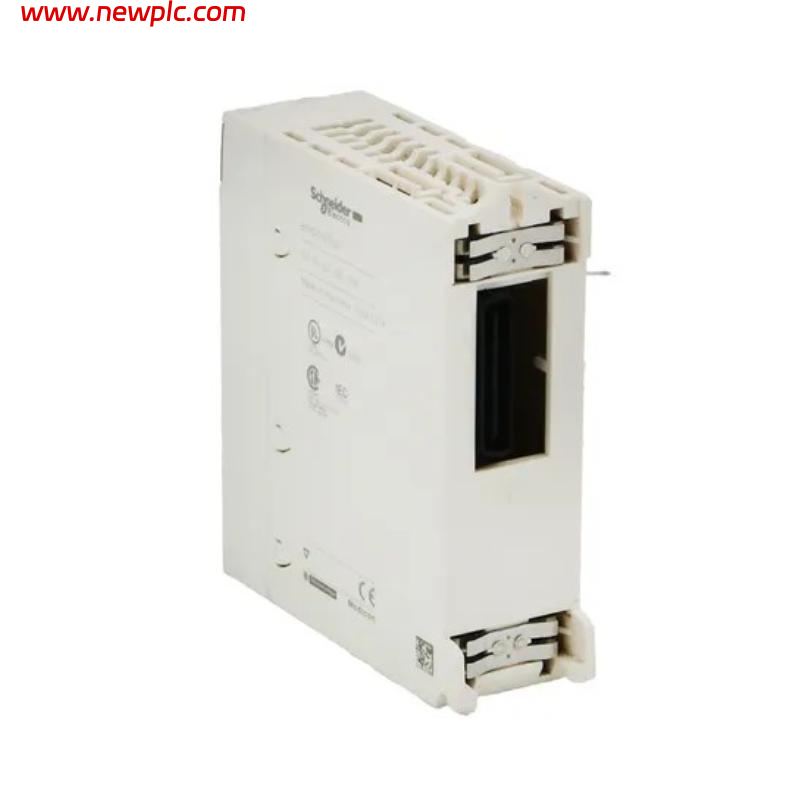

| Product Name | Schneider Electric BMXDDI3202KH |
| Part Number | BMXDDI3202KH |
| Product Type | Discrete Input Module (Modicon X80 PLC I/O Module) |
| Manufacturer | Schneider Electric |
| Function | Reads 24 VDC digital field signals and sends them to PLC control logic |
| Application | Industrial automation / Modicon M340 / M580 / X80 I/O systems |
| Input Type | Digital input (sink / positive logic) |
| Input Voltage | 24 VDC |
| Number of Channels | 32 inputs |
| Input Configuration | 4 groups of 8 channels |
| Input Current | ~2–2.5 mA per channel (typical) |
| Response Time | ~4–7 ms |
| Isolation | Channel-to-backplane galvanic isolation |
| Protection | Reverse polarity protection, fuse per channel group (0.5 A fast blow) |
| Signal Compatibility | 2-wire / 3-wire proximity sensors (IEC 61131-2 Type 1) |
| Status Indication | LED per channel + module status LEDs (RUN/ERR) |
| Power Dissipation | ~3.9 W |
| Backplane Communication | Modicon X80 rack backplane |
| Mounting Type | Rack-mounted (X80 chassis) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Dimensions (W × H × D) | 32 × 100 × 110 mm |
| Weight | 0.110 kg (110 g) |
FAQ
FAQ
Q1: What is Schneider BMXDDI3202KH used for?
A1: It is used to collect 24 VDC digital input signals from field devices such as sensors, switches, and relays in Modicon PLC systems.
Q2: Is BMXDDI3202KH a module or a cable?
A2: It is a discrete input module, not a cable.
Q3: How many inputs does it have?
A3: It provides 32 digital input channels.
Q4: What PLC systems is it compatible with?
A4: It is used in Schneider Modicon M340 and M580 systems (X80 I/O platform).
Q5: What type of signals can it read?
A5: It reads 24 VDC positive (sink) digital signals, including proximity sensors and switches.
Q6: What is its response time?
A6: Approximately 4–7 milliseconds.
Q7: What are its physical dimensions?
A7: Approximately 32 × 100 × 110 mm.
Q8: What is its weight?
A8: Approximately 0.110 kg (110 g).
