Technical Specifications
| Parameter | Description |
|---|---|

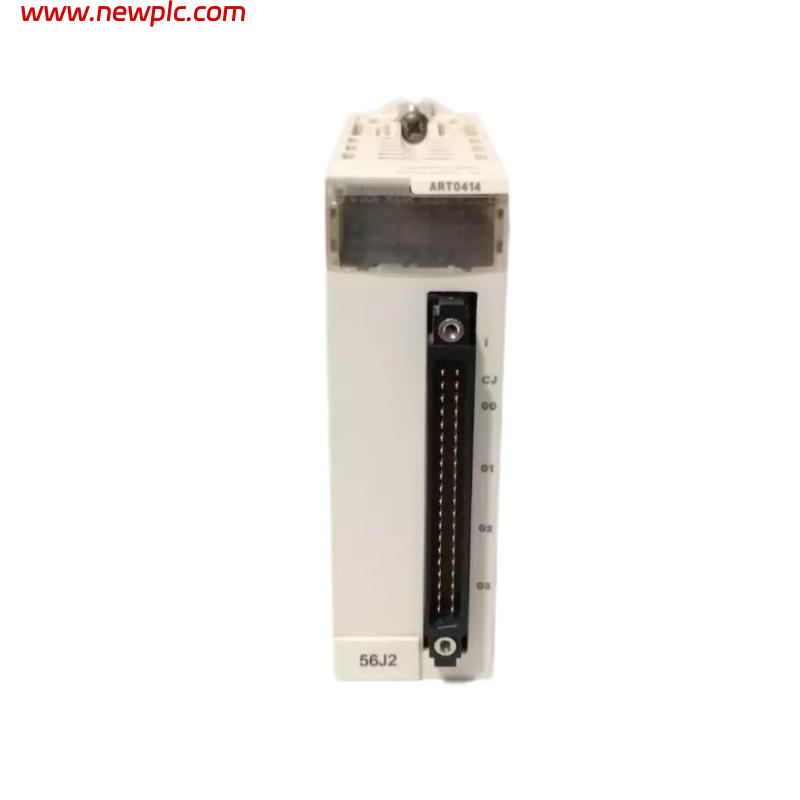

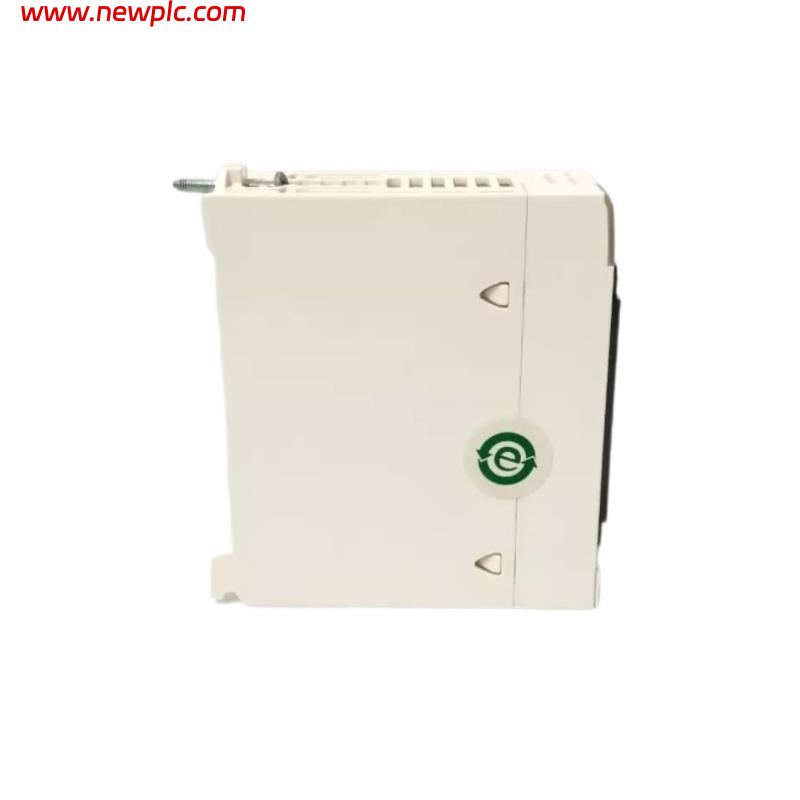

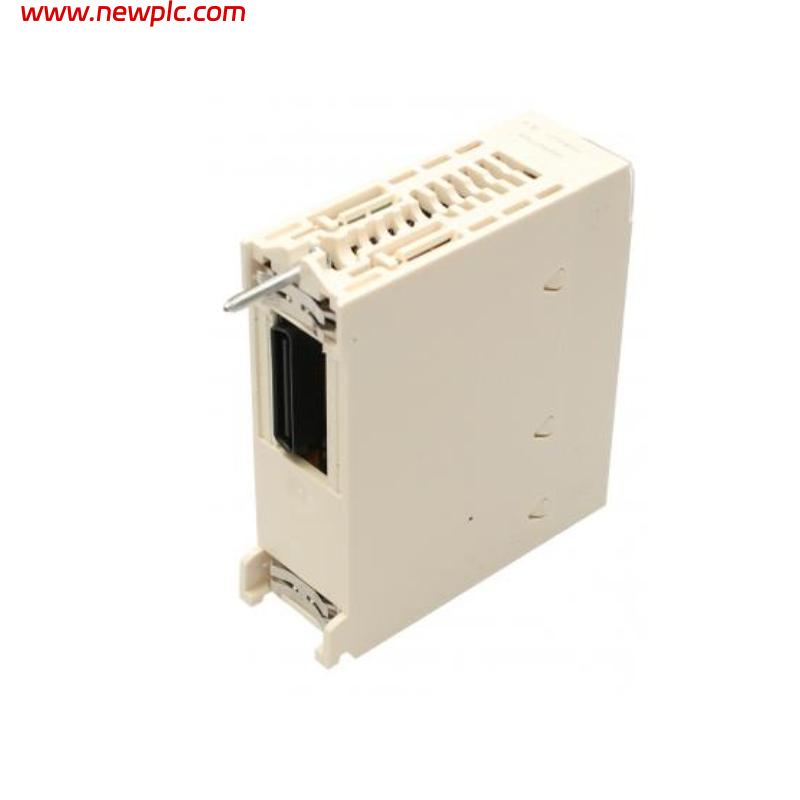

| Product Name | Schneider Electric BMXART0414H |
| Part Number | BMXART0414H |
| Product Type | Analog Input Module (Modicon X80 / M340 / M580 I/O Module) |
| Manufacturer | Schneider Electric |
| Function | Measures low-level analog signals (RTD, thermocouple, millivolt, resistance) and converts them into PLC data |
| Application | Industrial automation, process control, temperature measurement systems |
| System Compatibility | Modicon M340 / M580 / X80 I/O platform |
| Input Type | Analog (Voltage, RTD, Thermocouple, Resistance) |
| Number of Channels | 4 isolated analog input channels |
| Input Range | ±40 mV, ±80 mV, ±160 mV, RTD (Pt100/Pt1000/Ni), Thermocouple types (J, K, T, etc.) |
| Resolution | 16-bit A/D conversion |
| Electrical Connection | 1 × 40-way connector |
| Channel Isolation | Galvanically isolated inputs |
| Signal Processing | Low-level precision measurement (high sensitivity input module) |
| Power Consumption | ~150 mA @ 3.3 VDC |
| Mounting Type | Rack-mounted (Modicon X80 backplane system) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Dimensions (W × H × D) | 32 × 100 × 150 mm |
| Weight | 0.1–0.135 kg (100–135 g) |
FAQ
FAQ
Q1: What is Schneider BMXART0414H used for?
A1: It is used to measure low-level analog signals such as thermocouples, RTDs, resistance, and millivolt signals in industrial automation systems.
Q2: Is BMXART0414H a module or a cable?
A2: It is an analog input module, not a cable.
Q3: How many channels does it have?
A3: It has 4 isolated analog input channels.
Q4: What systems is it compatible with?
A4: It is used in Schneider Modicon M340 and M580 (X80 I/O) PLC systems.
Q5: What types of sensors does it support?
A5: It supports RTD (Pt100/Pt1000/Ni), thermocouples (J, K, T, etc.), resistance sensors, and millivolt signals.
Q6: What is the resolution of the module?
A6: It uses 16-bit analog-to-digital conversion.
Q7: What are its physical dimensions?
A7: Approximately 32 × 100 × 150 mm.
Q8: What is the weight of the module?
A8: Approximately 0.1–0.135 kg (100–135 g).
