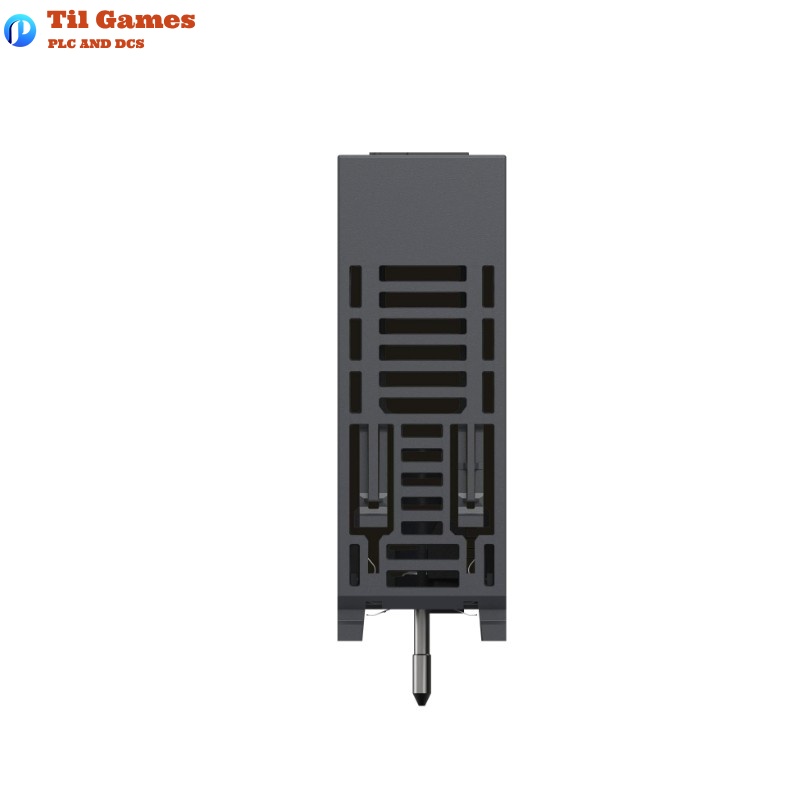

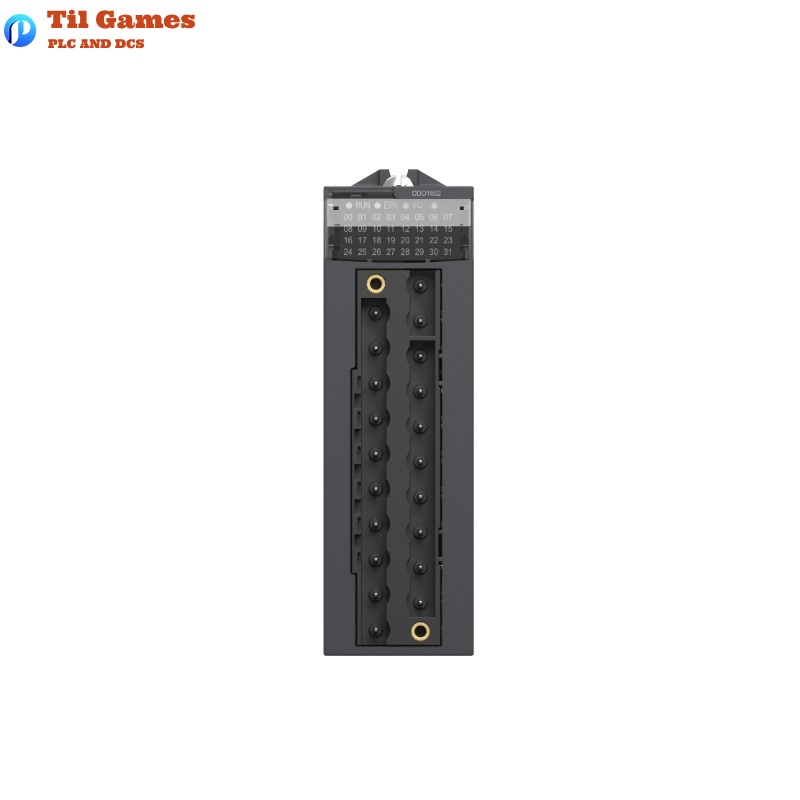

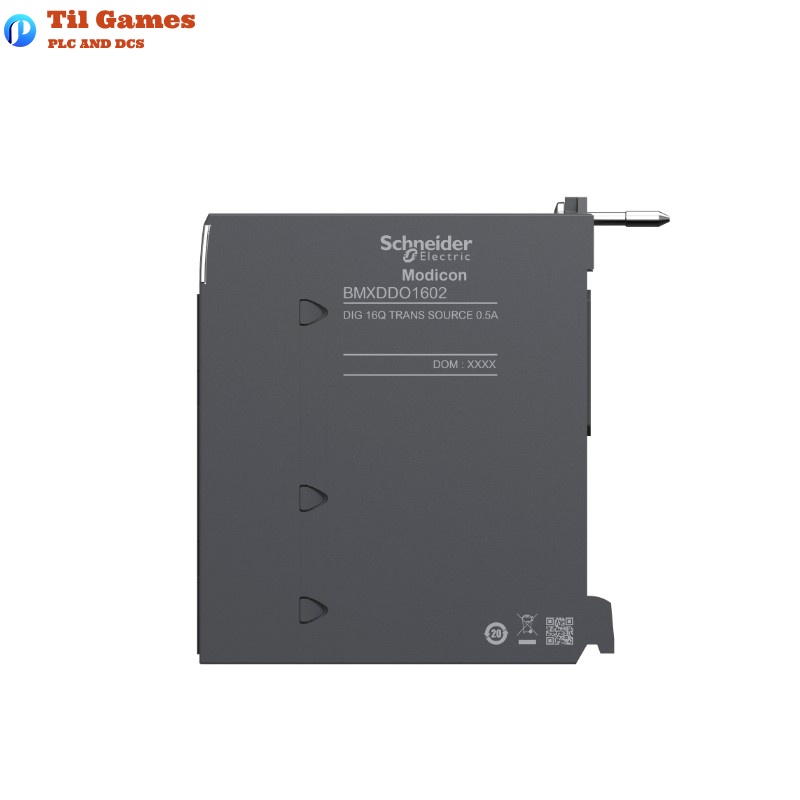

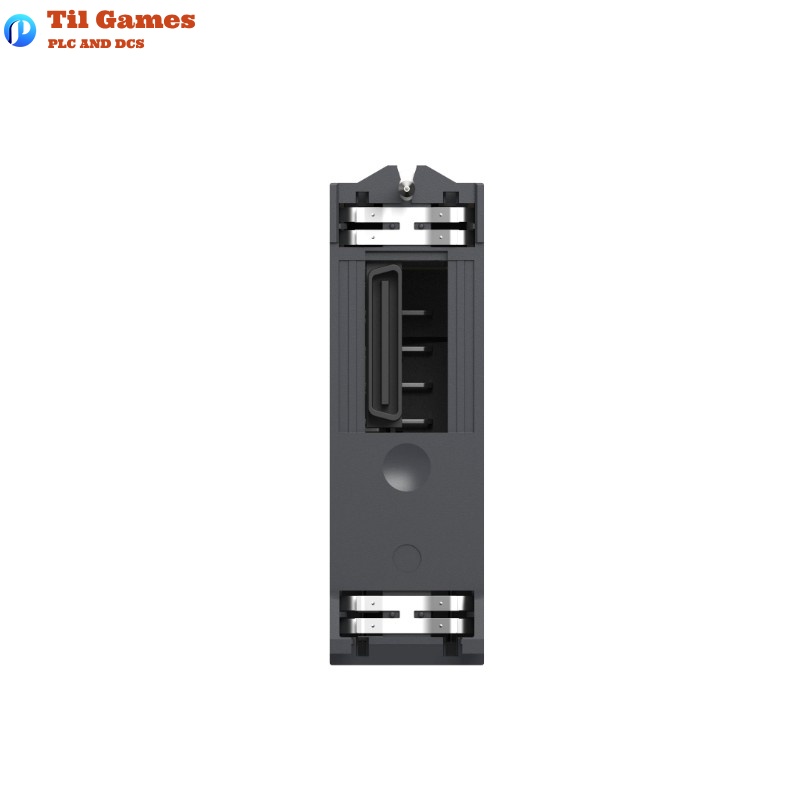

Technical Specifications – Schneider BMXDDO1602 Discrete Output Module
| Parameter | Details |
|---|---|
| Product Range | Modicon X80 |
| Product Type | Discrete Output Module |
| Number of Outputs | 16 (IEC 61131-2 compliant) |
| Output Type | Solid State |
| Output Logic | Positive (Source Type) |
| Output Voltage Range | 24 V DC (acceptable range: 19…30 V DC) |
| Output Current per Point | 0.5 A |
| Max Current per Channel | 0.625 A |
| Max Module Current | 10 A |
| Max Leakage Current (OFF) | 0.5 mA |
| Max Voltage Drop (ON) | < 1.2 V |
| Insulation Resistance | > 10 MΩ at 500 V DC |
| Power Dissipation | 4 W |
| Output Response Time | 1.2 ms |
| Paralleling of Outputs | Yes, maximum 2 channels |
| Typical Current Consumption | 79 mA at 3.3 V DC |
| MTBF | 410000 hours |
| Dimensions (W x H x D) | 160 x 100 x 35 mm |
| Net Weight | 0.12 kg |
| Protection Type | External fuse, reverse polarity, short-circuit, overload, overvoltage |
| Overload Protection | Electronic breaker (1.5In < Id < 2In), current limiter |
| Overvoltage Protection | With transil diode |
| Short-Circuit Protection | External 2 A fuse required |
| Reverse Polarity Protection | Built-in reverse diode |
| Voltage Detection Threshold | <14 V (preactuator fault), >18 V (channel at 0) |
| Max Tungsten Load | 6 W |
| Switching Frequency | 0.5/LI² Hz |
| Load Impedance (Ohmic) | >48 Ω |
| Status LEDs | RUN (Green), Channel Diagnosis (Green), Module Error (Red), I/O Fault (Red) |
| Protection Rating | IP20 |
| Dielectric Strength | 1500 V AC (output/ground and output/internal logic) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Storage Temperature | -40 to 85°C |
| Operating Temperature | 0 to 60°C |
| Relative Humidity | 5–95% (non-condensing at ≤55°C) |
| Operating Altitude | 0–2000 m; 2000–5000 m with derating |
| Compliance | 2014/35/EU (LVD), 2014/30/EU (EMC) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can BMXDDO1602 directly drive relays?
A1: Yes, it can drive small DC relays, provided the coil current does not exceed 0.5 A per channel.
Q2: Does the module support output channel paralleling?
A2: Yes, two channels can be paralleled, but ensure the total current stays within the module’s rated maximum.
Q3: Is short-circuit protection built into the module?
A3: No, external 2 A fuses are required for each output channel to protect against short circuits.
Q4: How can I check the module status?
A4: Status can be verified via LEDs on the module—RUN, channel diagnosis, module error, and I/O fault indicators.
Q5: Are there altitude limitations for operation?
A5: Yes, operation above 2000 m requires load derating according to the manufacturer’s specification.
Q6: What is the response time of the module?
A6: The output response time is 1.2 ms, suitable for moderate-speed automation tasks.
Q7: Does it include reverse polarity protection?
A7: Yes, the module has a built-in reverse diode to protect against incorrect wiring.
Q8: Are there restrictions on load type?
A8: Yes, the module is intended for resistive loads only, and load impedance must be greater than 48 Ω.
