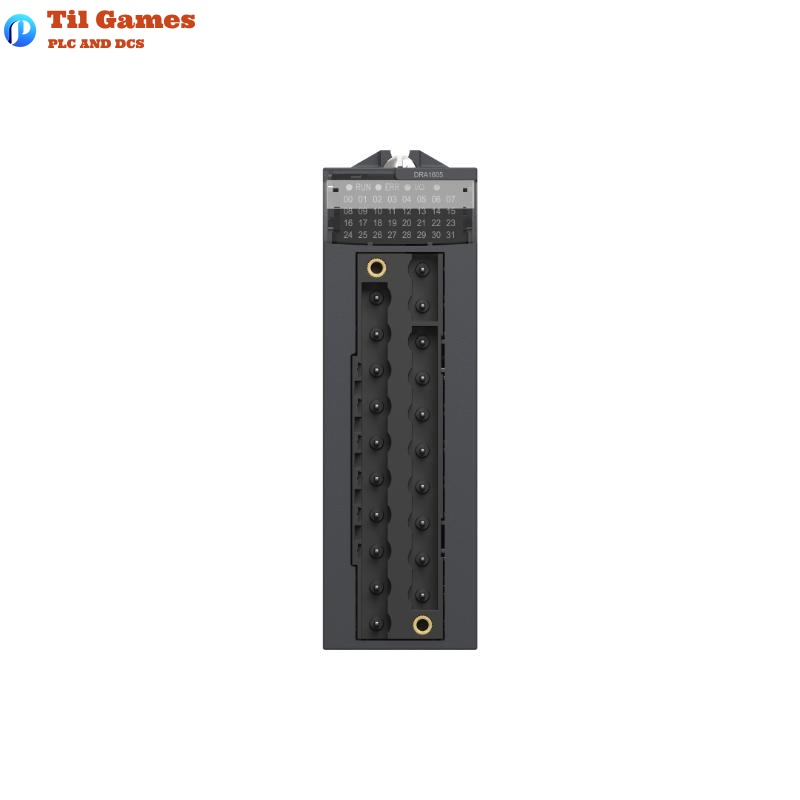

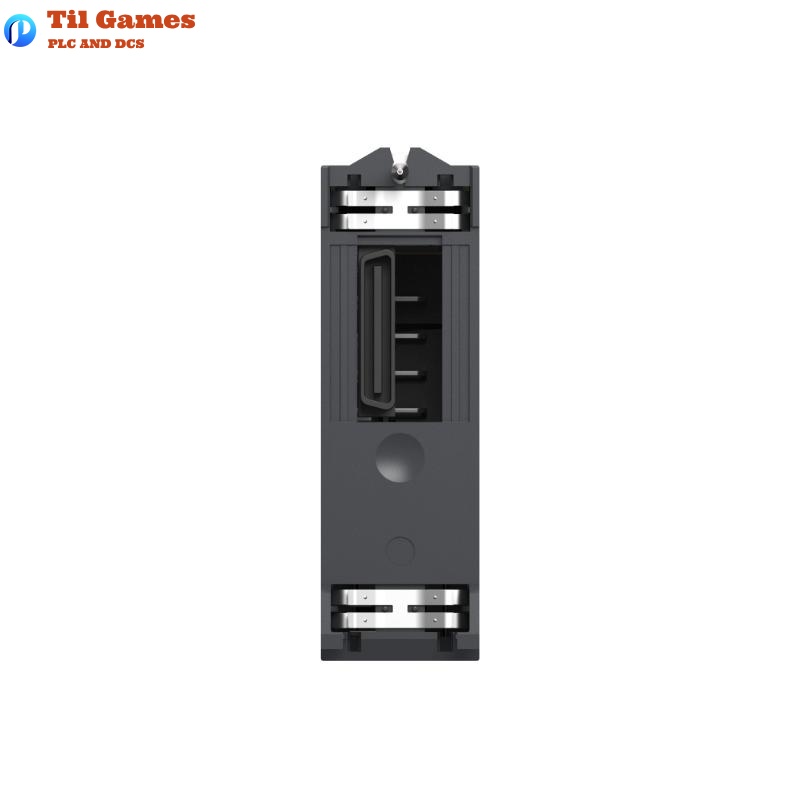

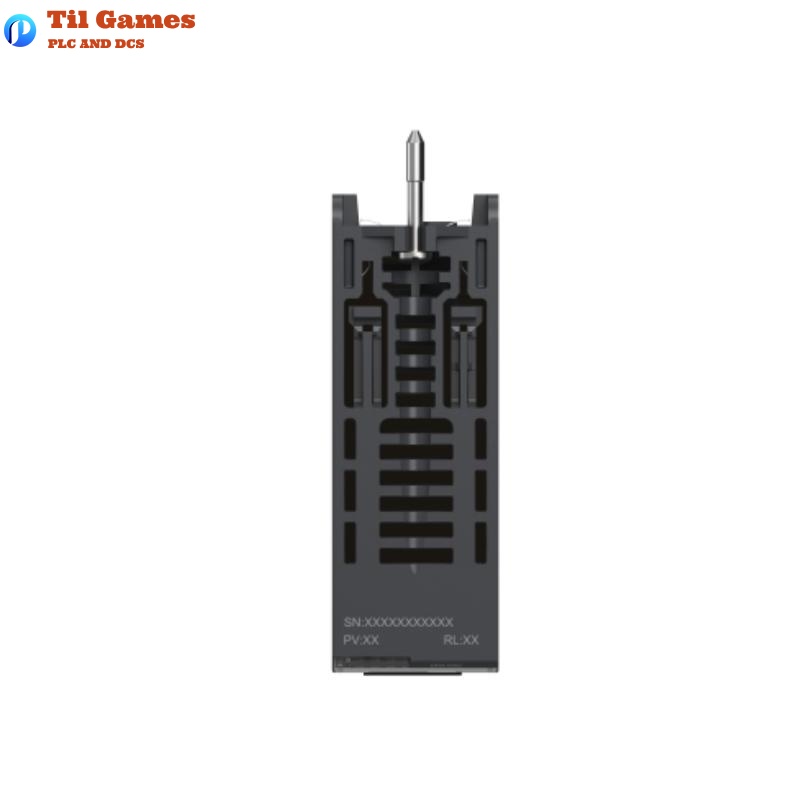

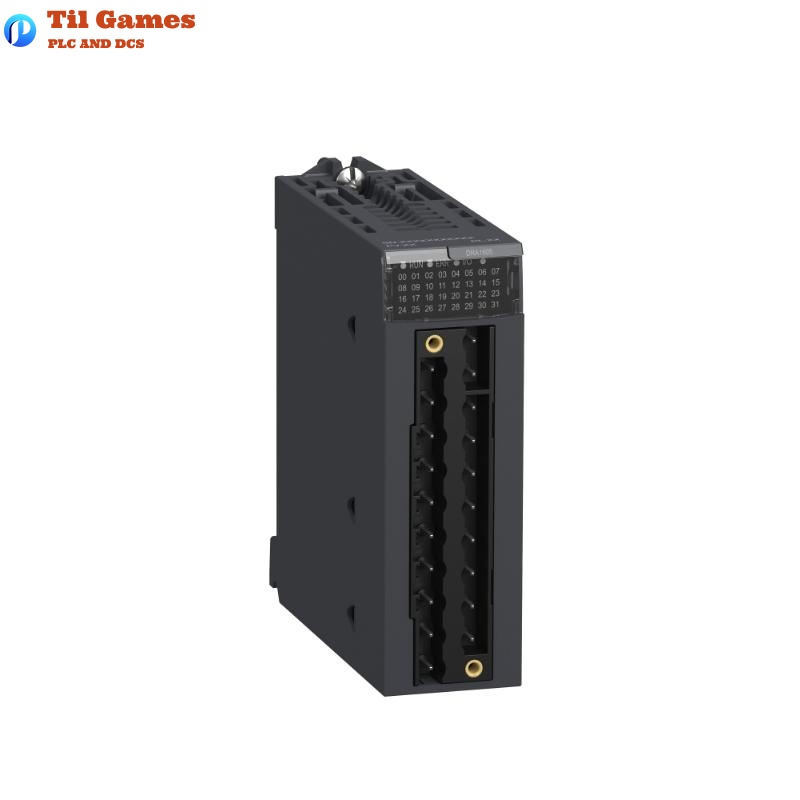

Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon X80 |
| Product Type | Discrete output module (relay output) |
| Discrete Output Channels | 16 channels, compliant with EN/IEC 61131-2 |
| Discrete Output Type | Relay |
| Output Voltage Range | 24…48 V / 19…60 V DC 24…240 V / 19…264 V AC |
| Conventional Thermal Current | 2 A |
| Insulation Resistance | >10 MΩ at 500 V DC |
| Power Dissipation | 3 W |
| Output Response Time | Activation < 8 ms Deactivation < 10 ms |
| Typical Current Consumption | 3.3 V DC: 100 mA 24 V DC: 95 mA |
| MTBF Reliability | 2,100,000 hours |
| Overload Protection | Use one fast-blow fuse per channel or group of channels |
| Overvoltage Protection | DC: discharge diode AC: RC circuit or ZNO surge limiter |
| Short-Circuit Protection | Use one fast-blow fuse per channel or group of channels |
| Minimum Switching Current | 1 mA at 5 V DC |
| Electrical Durability | Extensive AC-15, AC-12, DC-13 and DC-12 use cases (see full data above) |
| Status LEDs | 1 green RUN LED 1 green LED per channel 1 red ERR LED 1 red I/O LED |
| Dimensions | 160 mm x 100 mm x 35 mm |
| Net Weight | 0.15 kg |
| IP Protection Rating | IP20 |
| Dielectric Strength | 2000 V AC, 50/60 Hz for 1 minute |
| Vibration Resistance | 3 g |
| Shock Resistance | 30 g |
| Storage Temperature | -40 to +85 °C |
| Operating Temperature | 0 to +60 °C |
| Relative Humidity | 5% to 95% at 55 °C, non-condensing |
| Operating Altitude | 0 to 2000 m (standard) 2000 to 5000 m with derating |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of loads are supported by the BMXDRA1605?
A1: It supports both AC and DC loads, ideal for relay and contactor control in industrial applications.
Q2: Does the module offer short-circuit protection?
A2: The module does not have built-in protection; external fast-blow fuses should be used per channel or group.
Q3: Can inductive loads be directly controlled?
A3: Yes, but it is recommended to use an RC circuit or surge limiter to suppress overvoltage.
Q4: What is the maximum output current per channel?
A4: The maximum output current per channel is 2 A under free air thermal conditions.
Q5: Are there indicator LEDs on the module?
A5: Yes, each output channel has a green status LED, plus a RUN LED and error indicators.
Q6: What is the minimum switching current?
A6: The minimum switching current is 1 mA at 5 V DC, suitable for low signal switching.
Q7: Can the module operate at high altitudes?
A7: Yes, it supports operation up to 5000 m with power derating above 2000 m.
Q8: Is the BMXDRA1605 compatible with other X80 series modules?
A8: Yes, it is fully compatible with all Modicon X80 racks and controllers.
