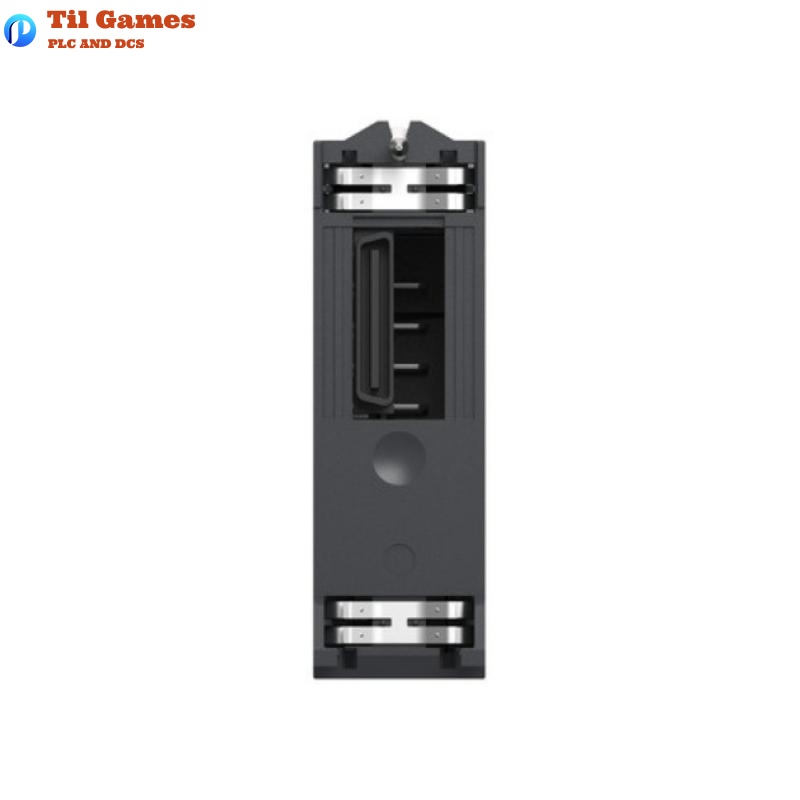

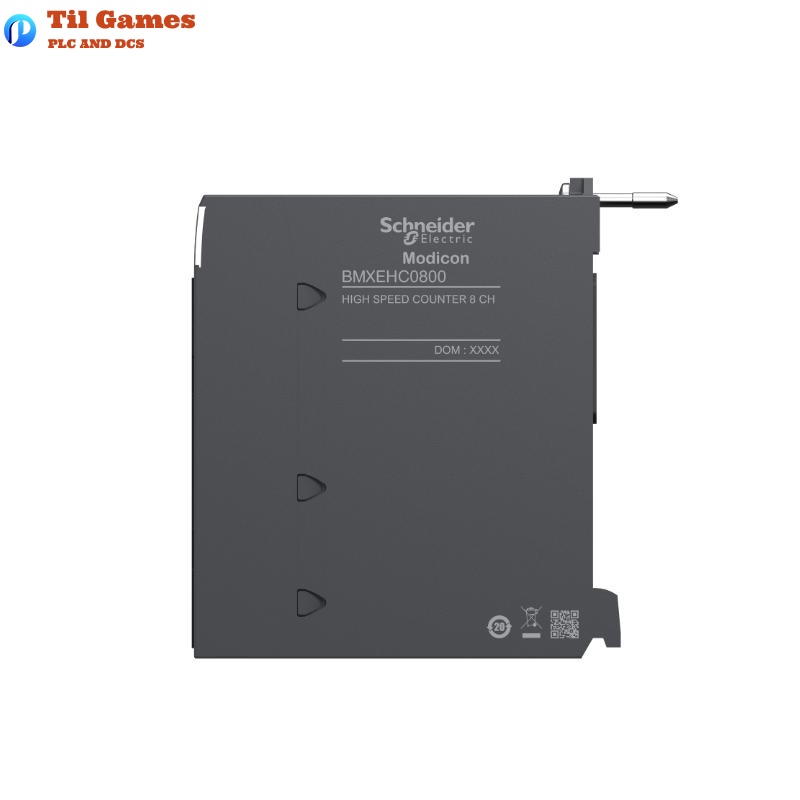

Technical Specifications

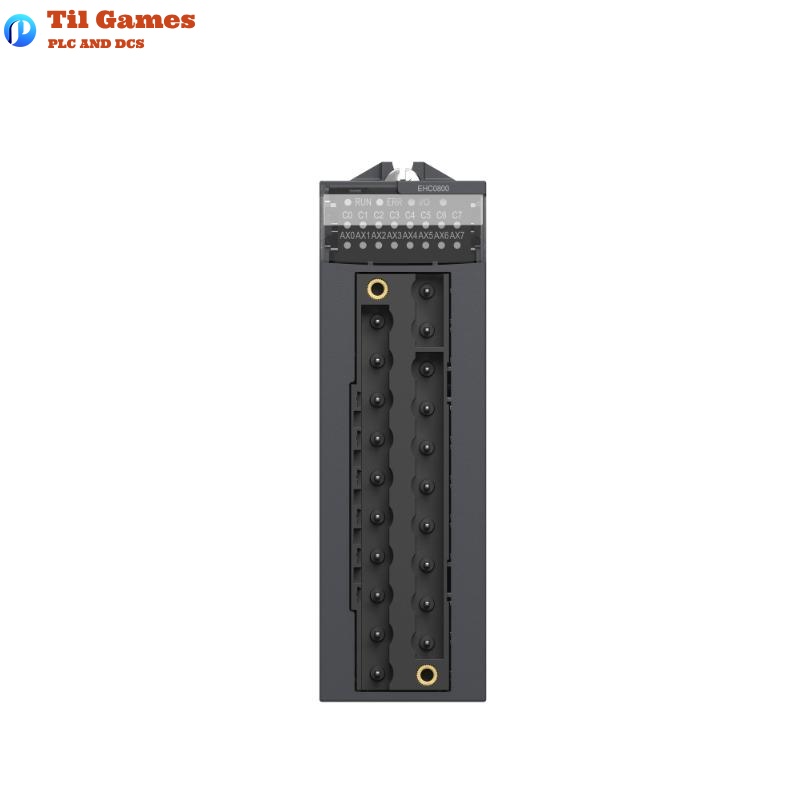

| Parameter | Details |
|---|---|
| Range of Product | Modicon M340 automation platform |
| Product or Component | Counter module |
| Number of Channels | 8 channels |
| Number of Inputs | 2 (single mode) 3 (dual phase mode) |
| Max Counting Frequency | 10000 Hz |
| Input Type | High speed input |
| Input Compatibility | 19.2–30 V 2-wire/3-wire proximity sensor Incremental encoder (10–30 V totem pole, push-pull) |
| Input Voltage | 24 V DC (Type 3) |
| Input Voltage Limits | Max 30 V |
| Input Current | 2 mA at 11 V |
| Guaranteed Voltage State 1 | 11–30 V |
| Guaranteed Current State 1 | ≥ 6 mA |
| Guaranteed Voltage State 0 | < 5 V |
| Guaranteed Current State 0 | ≤ 1.5 mA |
| Counter Functions | Up/down count, 32-bit counting, frequency meter, loop (modulo) count, event counting, down counting |
| Cycle Time | 5 ms |
| Isolation Voltage | 1500 V for 60 seconds |
| Electrical Connection | 1 x 20-pin connector |
| Module Format | Standard |
| Current Consumption (3.3V) | 200 mA |
| Current Consumption (24V sensor) | 80 mA |
| IP Protection Rating | IP20 |
| Dimensions (W x H x D) | 160 x 100 x 35 mm |
| Net Weight | 0.113 kg |
| Operating Temperature | 0…60 °C |
| Relative Humidity | 10…95% non-condensing |
| Compliance Directives | 2014/35/EU (Low Voltage Directive) 2014/30/EU (EMC Directive) |
| Protective Treatment | TC |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many high-speed counter channels does the BMXEHC0800 module support?
A1: The module supports 8 high-speed counter channels.
Q2: Is the module compatible with incremental encoders?
A2: Yes, it supports incremental encoders with push-pull outputs and totem pole (10–30 V).
Q3: What is the maximum counting frequency of the BMXEHC0800?
A3: It supports a maximum frequency of 10000 Hz.
Q4: What is the working input voltage for this module?
A4: The input voltage is 24 V DC, compliant with Type 3 specifications.
Q5: Does the module provide electrical isolation protection?
A5: Yes, it features 1500 V isolation voltage for up to 60 seconds.
Q6: Is this module compatible with the Modicon M340 platform?
A6: Yes, BMXEHC0800 is specifically designed for the Modicon M340 platform.
Q7: What are the guaranteed voltage and current ranges for the input states?
A7: For state 1: 11–30 V and ≥6 mA. For state 0: <5 V and ≤1.5 mA.
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 160 x 100 x 35 mm and weighs 0.113 kg.
